Votatec VO-LHW300FT4-347-3WAY-D-S 4FT Linear High Bay LED Light 300W Adjustable 120-347V 3CCT

Save 10%

Price:
$269.98 $300
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Votatec High Output 4FT Linear High Bay

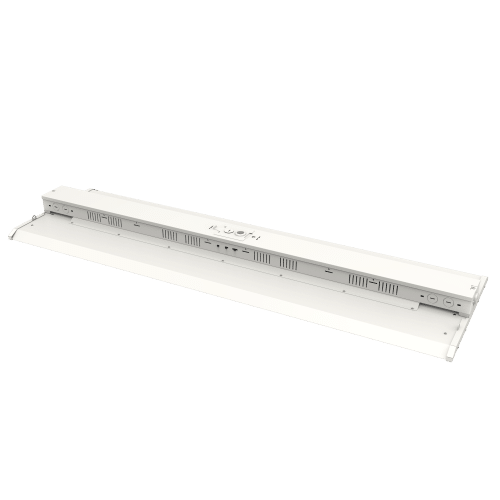

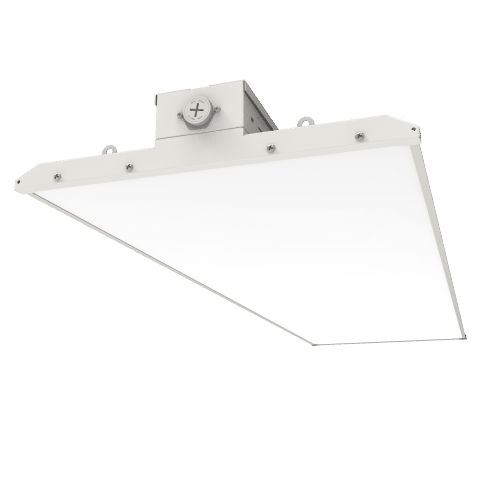

Votatec VO-LHW300FT4-347-3WAY-D-S 4FT Linear High Bay LED Light

The Votatec VO-LHW300FT4-347-3WAY-D-S is a high-output 4 foot linear high bay LED light designed for warehouses, industrial buildings, workshops, production areas, storage facilities, gyms, garages, and large commercial high-ceiling spaces.

This adjustable 120-347V linear high bay provides 300W / 220W / 160W selectable power, 31,500 to 45,000 lumens listed, 3500K / 4000K / 5000K selectable colour temperature, 0-10V dimming, 120 degree beam angle, 10kV surge protection, damp location rating, IP20 rating, cUL listing, DLC 5.1 Premium rating, 5-year warranty, and included chain, V-hook, and wire cap for suspension mounting.

4FT Linear High Bay120-347V300W / 220W / 160W31500-45000LM3CCT Selectable0-10V Dimming10kV SurgeDLC 5.1 Premium

Why Choose This 300W Votatec Linear High Bay?

High-Output Warehouse Lighting

The 300W maximum power setting supports high-ceiling applications, larger open areas, and commercial lighting layouts requiring stronger output.

Power Adjustable

Select 300W, 220W, or 160W output to match ceiling height, fixture spacing, energy target, and project lighting requirements.

120-347V Commercial Input

The 120-347V input range supports many commercial and industrial electrical environments where voltage flexibility is important.

Verified Product Specifications

Brand Votatec
SKU VO-LHW300FT4-347-3WAY-D-S
Fixture Type 4 foot linear high bay LED light
Length 4FT
Input Voltage 120-347V
Wattage 300W / 220W / 160W adjustable
Nominal Lumen Output 42,000 lm / 30,800 lm / 22,400 lm listed in vendor spec; catalogue range 31,500-45,000 lm
Tested Lumen Output Up to 46,354.3 lm depending on selected wattage and CCT
Colour Temperature 3500K / 4000K / 5000K adjustable
CRI 80
Beam Angle 120 degrees
Dimming 0-10V dimming
Rated Life 50,000 hours
Operating Frequency 50/60Hz
Power Factor >0.9
Surge Protection 10kV
Operating Position Vertical only
Operating Temperature -40°F to 113°F
Housing Colour White
Net Weight 6.64 kg / 14.64 lb
Dimensions 45.67" L x 14.17" W x 2.89" H
IP Rating IP20
Location Rating Damp location
Safety Listing cUL
DLC Rating DLC 5.1 Premium
DLC ID S-7J8QG3
Included Accessories Chain / V-Hook / Wire cap
Optional Accessories PIR sensor, remote control, surface mount kit, pendant kit, emergency option
Warranty 5 years
Catalogue Carton Qty 1
Product note: This is a commercial / industrial linear high bay fixture. Do not position it as a linear strip, wrap light, vapor-tight fixture, or residential shop light.

Lumen Output by Setting

Power Setting 3500K 4000K 5000K
160W 26,837.9 lm 27,477.9 lm 26,389.1 lm
220W 34,906.3 lm 35,762.1 lm 33,637.5 lm
300W 42,503 lm 46,354.3 lm 42,965.1 lm
Output note: Catalogue output is listed as 31,500-45,000 lumens. Tested lumen output varies by selected wattage and colour temperature.

Best Applications

Large Warehouses & Distribution Spaces

Use for open warehouse areas, logistics spaces, storage buildings, racking zones, loading areas, and high-output lighting upgrades.

Industrial Production Areas

Suitable for fabrication shops, manufacturing spaces, production areas, service bays, maintenance areas, and industrial work zones.

Commercial Garages & Service Bays

A strong option for automotive bays, contractor garages, fleet service spaces, utility buildings, and work areas requiring higher light output.

Gyms & Large High-Ceiling Interiors

Use in approved gymnasiums, recreational spaces, training facilities, and larger interiors where high-output ceiling lighting is required.

Related Votatec High Bay Products & Accessories

For lower-output 4FT applications, see the Votatec VO-LHW220FT4-347-3WAY-D-S 4FT Linear High Bay LED Light. For the 10Y 4FT model, see the Votatec VO-LHW220FT4-10Y-347-3WAY-S 4FT Linear High Bay LED Light. For the smaller 2FT version, see the Votatec VO-LHW160FT2-347-3WAY-D-S 2FT Linear High Bay LED Light. Browse the full Votatec Commercial & Industrial Lighting collection.

Product Resources

Frequently Asked Questions

What is the Votatec VO-LHW300FT4-347-3WAY-D-S?

It is a 4 foot Votatec linear high bay LED light with 300W / 220W / 160W adjustable power, selectable colour temperature, 120-347V input, 0-10V dimming, and 10kV surge protection.

What wattages are selectable?

The fixture supports 300W, 220W, and 160W adjustable power settings.

What colour temperatures are selectable?

The fixture supports 3500K, 4000K, and 5000K adjustable colour temperature settings.

Is this high bay dimmable?

Yes. The vendor tech sheet lists 0-10V dimming.

What is the voltage range?

The vendor tech sheet lists 120-347V input voltage.

Is this fixture damp location rated?

Yes. The vendor tech sheet lists damp location rating and IP20 rating.

What accessories are included?

Chain, V-hook, and wire cap are included. Optional accessories include PIR sensor, remote control, surface mount kit, pendant kit, and emergency option.

Need Votatec 300W Linear High Bays for a Project?

Contact MarsLED for stock checks, contractor quantities, lighting-layout support, sensor accessories, mounting options, and commercial project pricing.

Order Desk: 1-833-277-6277
Milton: 905-878-9997
Kitchener: 519-893-6666
