Description

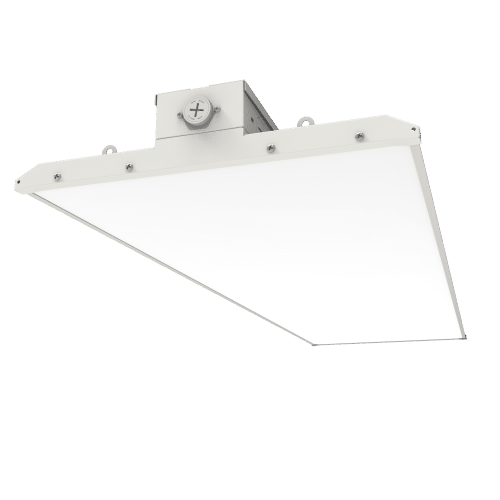

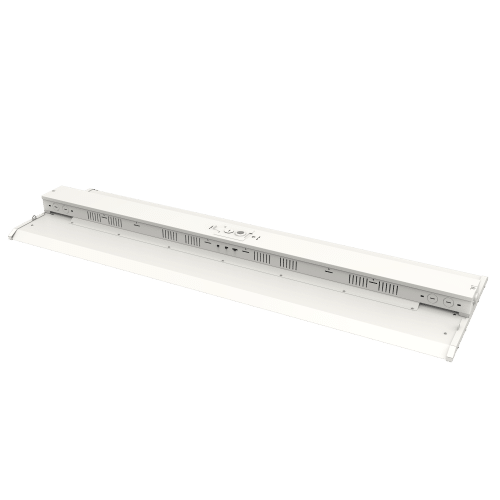

Votatec VO-LHW220FT4-347-3WAY-D-S 4FT Linear High Bay LED Light
The Votatec VO-LHW220FT4-347-3WAY-D-S is a 4 foot linear high bay LED light designed for warehouses, workshops, industrial units, storage facilities, garages, gyms, production areas, and commercial high-ceiling spaces requiring stronger coverage from a longer fixture body.
This adjustable 120-347V linear high bay provides 220W / 160W / 110W selectable power, 16500 to 33000 lumens listed, 3500K / 4000K / 5000K selectable colour temperature, 0-10V dimming, 120 degree beam angle, 10kV surge protection, damp location rating, IP20 rating, cUL listing, DLC 5.1 Premium rating, 5-year warranty, and included chain, V-hook, and wire cap for suspension mounting.
Why Choose This 4FT Votatec Linear High Bay?
Higher Output 4FT Design
The 4 foot body and 220W maximum power setting make this fixture suitable for larger bays, wider fixture spacing, and higher-output commercial lighting layouts.
Power Adjustable
Select 220W, 160W, or 110W output to match ceiling height, fixture spacing, energy target, and project lighting requirements.
120-347V Commercial Input
The 120-347V input range supports many commercial and industrial electrical environments where voltage flexibility is important.
Verified Product Specifications
| Brand | Votatec |
|---|---|
| SKU | VO-LHW220FT4-347-3WAY-D-S |
| Fixture Type | 4 foot linear high bay LED light |
| Length | 4FT |
| Input Voltage | 120-347V |
| Wattage | 220W / 160W / 110W adjustable |
| Nominal Lumen Output | 33,000 lm / 24,000 lm / 16,500 lm listed |
| Tested Lumen Output | Up to 33,475 lm depending on selected wattage and CCT |
| Colour Temperature | 3500K / 4000K / 5000K adjustable |
| CRI | 80 |
| Beam Angle | 120 degrees |
| Dimming | 0-10V dimming |
| Rated Life | 50,000 hours |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| Surge Protection | 10kV |
| Operating Position | Vertical only |
| Operating Temperature | -40°F to 113°F |
| Housing Colour | White |
| Net Weight | 6.64 kg / 14.64 lb |
| Dimensions | 45.67" L x 14.17" W x 2.89" H |
| IP Rating | IP20 |
| Location Rating | Damp location |
| Safety Listing | cUL |
| DLC Rating | DLC 5.1 Premium |
| Included Accessories | Chain / V-Hook / Wire cap |
| Optional Accessories | PIR sensor, remote control, surface mount kit, pendant kit, emergency option |
| Warranty | 5 years |
| Catalogue Carton Qty | 1 |
Lumen Output by Setting
| Power Setting | 3500K | 4000K | 5000K |
|---|---|---|---|
| 110W | 18,300 lm | 18,862.2 lm | 18,015.3 lm |
| 160W | 24,961.2 lm | 26,810.2 lm | 24,987.2 lm |
| 220W | 31,270.4 lm | 33,475 lm | 31,462.7 lm |
Best Applications
Warehouses & Distribution Spaces
Use for open warehouse areas, logistics spaces, storage buildings, racking aisles, loading areas, and high-ceiling lighting upgrades.
Workshops & Industrial Units
Suitable for fabrication shops, service bays, repair spaces, maintenance areas, production areas, and industrial work zones.
Commercial Garages & Service Bays
A strong option for automotive bays, contractor garages, fleet service spaces, utility buildings, and work areas requiring higher light output.
Gyms & Multi-Purpose Facilities
Use in approved gymnasiums, recreational spaces, training areas, and other larger high-ceiling interiors.
Related Votatec High Bay Products & Accessories
For the smaller 2FT version, see the Votatec VO-LHW160FT2-347-3WAY-D-S 2FT Linear High Bay LED Light. For other Votatec commercial fixtures, browse the Votatec Commercial & Industrial Lighting collection. Compatible high bay accessory pages can be added for the LHW sensor, remote control, surface mounting kit, pendant mounting kit, and emergency option as we build out the high bay ecosystem.
Product Resources
Frequently Asked Questions
What is the Votatec VO-LHW220FT4-347-3WAY-D-S?
It is a 4 foot Votatec linear high bay LED light with adjustable wattage, selectable colour temperature, 120-347V input, 0-10V dimming, 10kV surge protection, and included chain, V-hook, and wire cap.
What wattages are selectable?
The fixture supports 220W, 160W, and 110W adjustable power settings.
What colour temperatures are selectable?
The fixture supports 3500K, 4000K, and 5000K adjustable colour temperature settings.
Is this high bay dimmable?
Yes. The vendor tech sheet lists 0-10V dimming.
What is the voltage range?
The vendor tech sheet lists 120-347V input voltage.
Is this fixture damp location rated?
Yes. The vendor tech sheet lists damp location rating and IP20 rating.
What accessories are included?
Chain, V-hook, and wire cap are included. Optional accessories include PIR sensor, remote control, surface mount kit, pendant kit, and emergency option.
Need Votatec 4FT Linear High Bays for a Project?
Contact MarsLED for stock checks, contractor quantities, lighting-layout support, sensor accessories, mounting options, and commercial project pricing.
