Votatec VO-LHW160FT2-347-3WAY-D-S 2FT Linear High Bay LED Light 160W Adjustable 120-347V 3CCT

Save 16%

Price:
$159.98 $190
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Votatec Linear High Bay

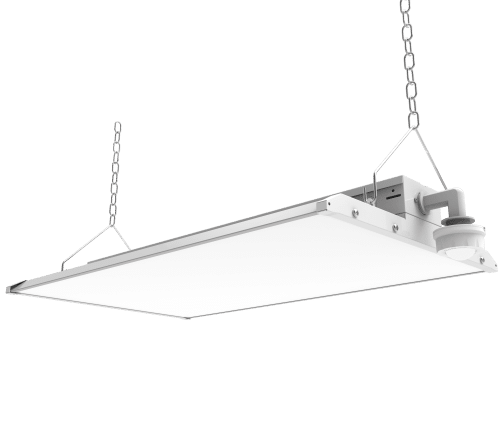

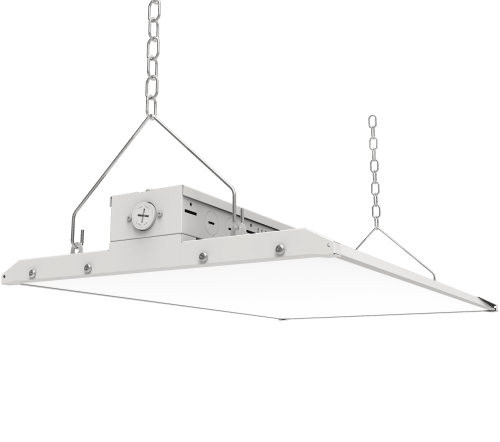

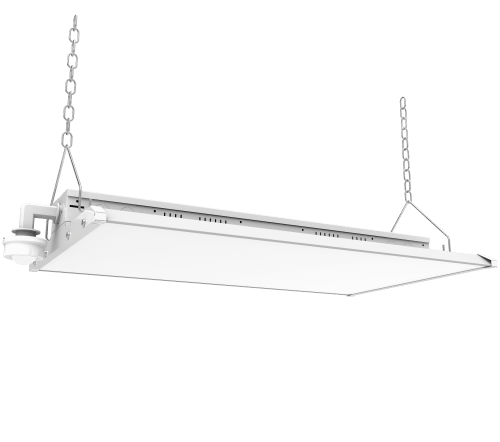

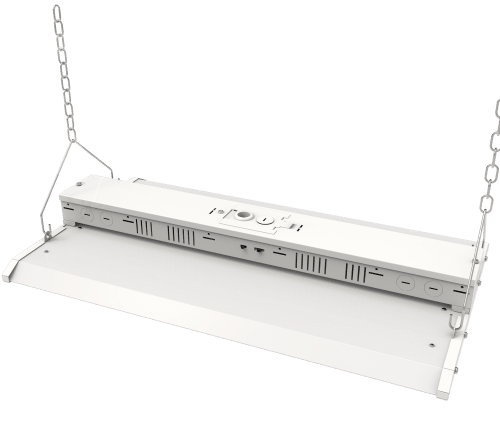

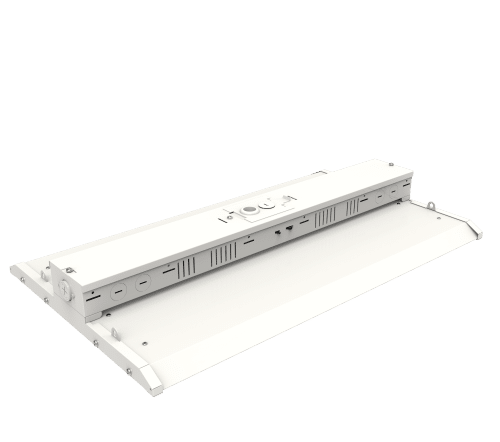

Votatec VO-LHW160FT2-347-3WAY-D-S 2FT Linear High Bay LED Light

The Votatec VO-LHW160FT2-347-3WAY-D-S is a 2 foot linear high bay LED light designed for warehouses, workshops, industrial units, storage facilities, garages, gyms, production areas, and commercial high-ceiling spaces.

This adjustable 120-347V linear high bay provides 160W / 110W / 80W selectable power, 3500K / 4000K / 5000K selectable colour temperature, 0-10V dimming, 120 degree beam angle, 10kV surge protection, damp location rating, IP20 rating, cUL listing, DLC 5.1 Premium rating, 5-year warranty, and included chain, V-hook, and wire cap for suspension mounting.

2FT Linear High Bay120-347V160W / 110W / 80W3CCT Selectable0-10V Dimming120 Degree Beam10kV SurgeDLC 5.1 Premium

Why Choose This 2FT Votatec Linear High Bay?

Power Adjustable

Select 160W, 110W, or 80W output to match ceiling height, fixture spacing, energy target, and project lighting requirements.

Colour Selectable

Choose 3500K, 4000K, or 5000K during installation for warmer commercial lighting, neutral work lighting, or brighter warehouse-style lighting.

120-347V Commercial Input

The 120-347V input range supports many commercial and industrial electrical environments where voltage flexibility is important.

Verified Product Specifications

Brand Votatec
SKU VO-LHW160FT2-347-3WAY-D-S
Fixture Type 2 foot linear high bay LED light
Length 2FT
Input Voltage 120-347V
Wattage 160W / 110W / 80W adjustable
Nominal Lumen Output 22,400 lm / 15,400 lm / 11,200 lm listed
Tested Lumen Output Up to 24,594 lm depending on selected wattage and CCT
Colour Temperature 3500K / 4000K / 5000K adjustable
CRI 80
Beam Angle 120 degrees
Dimming 0-10V dimming
Rated Life 50,000 hours
Operating Frequency 50/60Hz
Power Factor >0.9
Surge Protection 10kV
Operating Position Vertical only
Operating Temperature -40°F to 113°F
Housing Colour White
Net Weight 2.95 kg / 6.5 lb
IP Rating IP20
Location Rating Damp location
Safety Listing cUL
DLC Rating DLC 5.1 Premium
DLC ID S-YRQ5IN
Included Accessories Chain / V-Hook / Wire cap

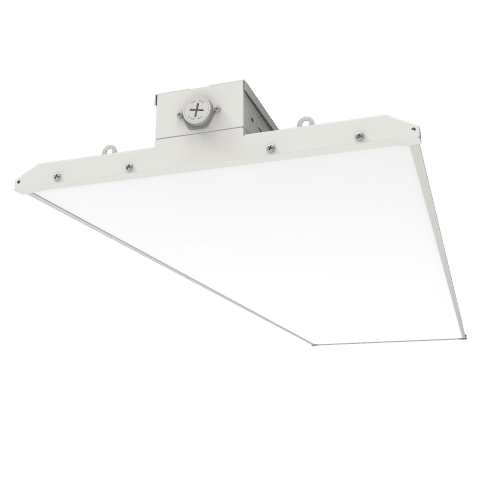

Optional Accessories PIR sensor, remote control, surface mount kit, pendant kit, emergency option
Warranty 5 years
Catalogue Carton Qty 1
Product note: This is a commercial / industrial linear high bay fixture. Do not position it as a linear strip, wrap light, vapor-tight fixture, or residential shop light.

Lumen Output by Setting

Power Setting 3500K 4000K 5000K
80W 13,251.4 lm 13,541.8 lm 13,193.1 lm
110W 17,078.4 lm 17,769.4 lm 16,964.1 lm
160W 22,973 lm 24,594 lm 23,088.1 lm
Output note: Nominal catalogue output is listed as 22,400 / 15,400 / 11,200 lumens. Tested lumen output varies by selected wattage and colour temperature.

Best Applications

Warehouses & Distribution Spaces

Use for racking aisles, open warehouse areas, logistics spaces, storage buildings, and commercial high-ceiling lighting upgrades.

Workshops & Industrial Units

Suitable for fabrication shops, service bays, repair spaces, maintenance areas, production areas, and industrial work zones.

Garages & Commercial Bays

A strong option for automotive bays, contractor garages, utility buildings, large garages, and work areas requiring higher light output.

Gyms & Multi-Purpose Facilities

Use in approved gymnasiums, training areas, recreational spaces, warehouses converted to fitness spaces, and other high-ceiling interiors.

Related Votatec High Bay Products & Accessories

For other Votatec commercial fixtures, browse the Votatec Commercial & Industrial Lighting collection. Compatible high bay accessory pages can be added for the LHW sensor, remote control, surface mounting kit, pendant mounting kit, and emergency option as we build out the high bay ecosystem.

Product Resources

Frequently Asked Questions

What is the Votatec VO-LHW160FT2-347-3WAY-D-S?

It is a 2 foot Votatec linear high bay LED light with adjustable wattage, selectable colour temperature, 120-347V input, 0-10V dimming, 10kV surge protection, and included chain, V-hook, and wire cap.

What wattages are selectable?

The fixture supports 160W, 110W, and 80W adjustable power settings.

What colour temperatures are selectable?

The fixture supports 3500K, 4000K, and 5000K adjustable colour temperature settings.

Is this high bay dimmable?

Yes. The vendor tech sheet lists 0-10V dimming.

What is the voltage range?

The vendor tech sheet lists 120-347V input voltage.

Is this fixture damp location rated?

Yes. The vendor tech sheet lists damp location rating and IP20 rating.

What accessories are included?

Chain, V-hook, and wire cap are included. Optional accessories include PIR sensor, remote control, surface mount kit, pendant kit, and emergency option.

Need Votatec Linear High Bays for a Project?

Contact MarsLED for stock checks, contractor quantities, lighting-layout support, sensor accessories, mounting options, and commercial project pricing.
