Votatec VO-ECSTR2FT-347V-5WAY-S 2ft CCT & Power Selectable LED Linear Strip Fixture With Sensor

Save 11%

Price:
$79.98 $90
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Votatec 2ft Linear Strip With Sensor

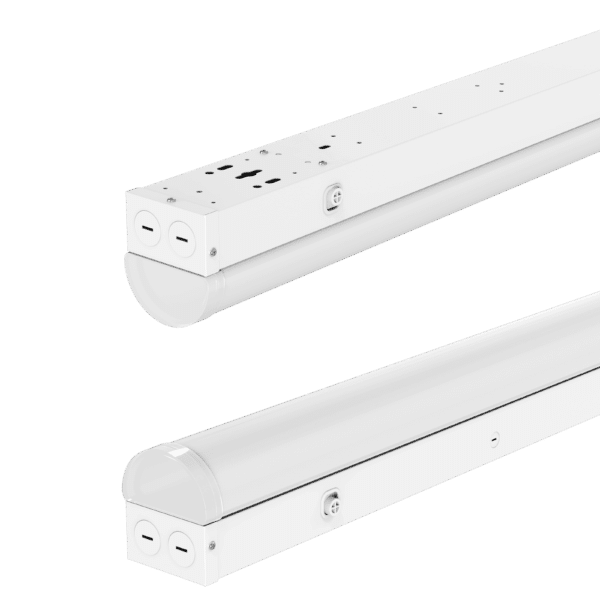

Votatec VO-ECSTR2FT-347V-5WAY-S 2ft CCT & Power Selectable LED Linear Strip Fixture With Sensor

The Votatec VO-ECSTR2FT-347V-5WAY-S is a compact 2ft LED linear strip fixture with built-in microwave sensor control for utility rooms, stairwells, corridors, storage rooms, closets, service spaces, retail back rooms, office support areas, workshops, and commercial retrofit lighting.

This fixture supports selectable 25W / 20W / 17.5W / 15W / 10W output, selectable 3500K / 4000K / 4500K / 5000K / 5700K colour temperature, AC120-347V input, 0-10V dimming, IP20 indoor rating, damp-location use, and DLC Premium listing.

Built-In Microwave Sensor25W / 20W / 17.5W / 15W / 10W1,300-3,250 Lumens3500K-5700K SelectableAC120-347V0-10V Dimming2ft LengthDamp LocationDLC Premium

Why Choose This 2ft Linear Strip With Sensor?

Built-In Sensor Control

The integrated microwave sensor supports automatic occupancy-based operation for compact utility rooms, closets, stairwell sections, service spaces, and commercial back-of-house areas.

Compact Linear Lighting

The 2ft body is ideal for smaller rooms, narrow utility spaces, closets, service areas, stairwells, and short lighting runs where a 4ft or 8ft fixture is too long.

Adjustable CCT + Wattage

Select the light level and colour temperature on site to match the space, from lower-output utility lighting to higher-output commercial task lighting.

Product Specifications

Brand Votatec
SKU VO-ECSTR2FT-347V-5WAY-S
Fixture Type 2ft CCT and power selectable LED linear strip fixture with built-in sensor
Sensor Built-in microwave occupancy sensor
Input Voltage AC120-347V
Wattage 25W / 20W / 17.5W / 15W / 10W adjustable
Lumen Output 3,250 / 2,600 / 2,275 / 1,950 / 1,300 lm depending on selected wattage
Colour Temperature 3500K / 4000K / 4500K / 5000K / 5700K adjustable
CRI >80
Beam Angle 120°
Rated Life 100,000 hours to L70
Operating Frequency 50-60Hz
Power Factor >0.9
Operating Position Horizontal and vertical
Surge Protection Built-in 2kV surge protection
Dimming 0-10V dimming driver; dimming cables included
Operating Temperature -20°C to 50°C
Lens Material PC / polycarbonate diffuser
Housing SPCC steel housing
Housing Colour White
Dimensions 23.78" L × 2.95" W × 3.26" H
Metric Dimensions 604 mm × 75 mm × 83 mm
Weight 0.83 kg / 1.83 lb
IP Rating IP20
Location Rating Damp location
Safety Listing cETL listed
DLC Approved DLC Premium
Energy Star No
Warranty 5 years
Helpful information: This 2ft linear strip fixture includes a built-in microwave sensor. The non-sensor version is available separately as VO-ECSTR2FT-347V-5WAY.

Lumen Output by Wattage

Wattage Setting Lumen Output Best-Fit Use
25W 3,250 lm Higher-output utility, service, workshop, or commercial lighting
20W 2,600 lm General utility rooms, corridors, storage rooms, and back-of-house lighting
17.5W 2,275 lm Balanced light output for smaller commercial and support spaces
15W 1,950 lm Lower-output rooms, closets, compact service areas, and stairwell zones
10W 1,300 lm Low-output applications where reduced brightness is preferred

Sensor Settings

Factory Preset

The sensor preset is detection area 100%, hold time 5 seconds, stand-by period 0 seconds, stand-by dim level 10%, and daylight sensor disabled.

Remote Adjustable

Additional sensor setting changes can be made by remote control. Remote control is ordered separately.

Detection Options

The sensor supports selectable detection area, hold time, light-control levels, and standby dimming settings.

Warm-Up Behaviour

After power is connected, the fixture stays on briefly during warm-up before returning to normal sensor-controlled operation.

Best Applications

Utility Rooms & Closets

The compact 2ft size is suitable for smaller rooms, storage closets, electrical rooms, service spaces, and maintenance areas.

Stairwells & Corridors

Use in shorter stairwell sections, corridor transitions, common areas, and back-of-house spaces where compact sensor-controlled linear lighting is needed.

Retail & Office Support Areas

A practical option for staff rooms, stock rooms, office support areas, retail service areas, and commercial retrofit projects.

Fluorescent Strip Replacement

Use as an LED replacement option where older short fluorescent strip fixtures are being upgraded to selectable LED linear lighting with built-in sensor control.

Installation & Accessory Notes

Mounting Options

The fixture supports suspension, wall, and surface-mounted installation. V-hooks, half-round fitting, wire cap, and screws are included.

Linkable Layouts

Linkable accessories are available separately for compatible fixture-row layouts. Confirm total connected load and installation requirements before connecting fixtures in series.

Dimming Compatibility

The fixture uses a 0-10V dimming driver. Compatible tested dimmer families listed by Votatec include Lutron, Leviton, and Legrand options.

Remote Control

The remote control for sensor setting adjustment is ordered separately. Confirm accessory requirements when planning sensor-controlled fixture layouts.

Related Votatec Wrap & Linear Strip Products

For the matching non-sensor 2ft linear strip, see the Votatec VO-ECSTR2FT-347V-5WAY 2ft LED Linear Strip Fixture. For larger sensor layouts, see the Votatec VO-ECSTR4FT-347V-5WAY-S 4ft LED Linear Strip Fixture With Sensor and the Votatec VO-ECSTR8FT-347V-5WAY-S 8ft LED Linear Strip Fixture With Sensor. For surface-style wrap lighting, see the Votatec 4ft Linkable LED Wrap Light With Sensor.

Product Resources

Frequently Asked Questions

What is the Votatec VO-ECSTR2FT-347V-5WAY-S?

It is a 2ft CCT and power selectable LED linear strip fixture with a built-in microwave occupancy sensor, selectable 25W / 20W / 17.5W / 15W / 10W output, selectable 3500K / 4000K / 4500K / 5000K / 5700K colour temperature, AC120-347V input, and 0-10V dimming.

Does this 2ft Votatec linear strip have a built-in sensor?

Yes. VO-ECSTR2FT-347V-5WAY-S is the built-in sensor model. The matching non-sensor version is VO-ECSTR2FT-347V-5WAY.

Is this Votatec linear strip wattage adjustable?

Yes. This model supports 10W, 15W, 17.5W, 20W, and 25W selectable wattage settings.

Is this fixture CCT adjustable?

Yes. The fixture supports 3500K, 4000K, 4500K, 5000K, and 5700K selectable colour temperature.

Can this fixture be used on 347V?

Yes. The input voltage is AC120-347V.

Is this fixture dimmable?

Yes. The specification sheet lists a 0-10V dimming driver, and dimming cables are included.

Is the remote control included?

No. The remote control is ordered separately for sensor setting adjustments.

Where can this 2ft linear strip with sensor be used?

It is suitable for damp-location indoor applications such as utility rooms, closets, stairwells, corridors, common areas, retail and office spaces, storage rooms, workshops, and general commercial retrofit lighting.

Need Votatec 2ft Linear Strip Fixtures With Sensor for a Project?

Contact MarsLED for stock checks, quantity pricing, and fixture recommendations for utility rooms, closets, stairwells, corridors, offices, storage spaces, workshops, and commercial retrofit projects.
