Description

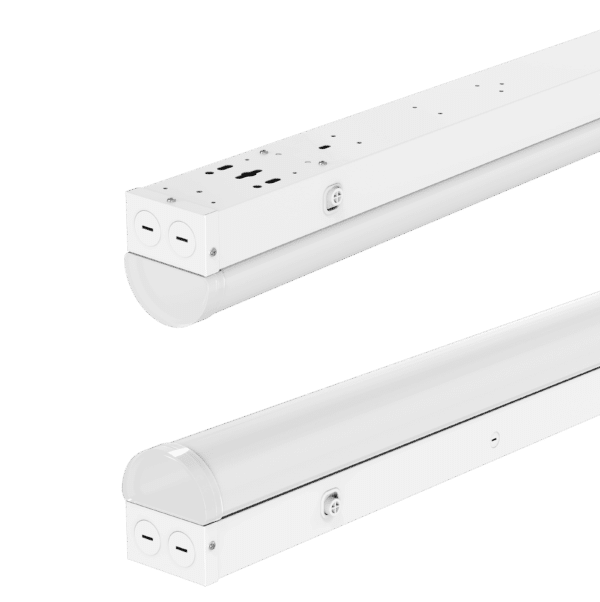

Votatec VO-ECSTR8FT-347V-5WAY-S 8ft CCT & Power Selectable LED Linear Strip Fixture With Sensor
The Votatec VO-ECSTR8FT-347V-5WAY-S is an 8ft LED linear strip fixture with built-in microwave sensor control for commercial, utility, stairwell, corridor, storage, workshop, retail, office, and back-of-house lighting applications.
This fixture supports selectable 90W / 80W / 70W / 60W / 50W output, selectable 3500K / 4000K / 4500K / 5000K / 5700K colour temperature, AC120-347V input, 0-10V dimming, damp-location use, and DLC Premium listing. The built-in sensor helps support occupancy-based control where automatic lighting response is preferred.
Why Choose This 8ft Linear Strip With Sensor?
Built-In Sensor Control
The integrated microwave sensor supports automatic occupancy-based operation for stairwells, corridors, utility rooms, storage spaces, and commercial back-of-house areas.
Adjustable CCT + Wattage
Select the light level and colour temperature on site to match the space, from lower-output utility lighting to higher-output commercial lighting.
120-347V Project Flexibility
The AC120-347V input supports many commercial, industrial, multi-unit, institutional, retail, office, and service-area electrical environments.
Product Specifications
| Brand | Votatec |
|---|---|
| SKU | VO-ECSTR8FT-347V-5WAY-S |
| Fixture Type | 8ft CCT and power selectable LED linear strip fixture with built-in sensor |
| Sensor | Built-in microwave occupancy sensor |
| Input Voltage | AC120-347V |
| Wattage | 90W / 80W / 70W / 60W / 50W adjustable |
| Lumen Output | 6,500-12,510 lm depending on selected wattage and CCT setting |
| Colour Temperature | 3500K / 4000K / 4500K / 5000K / 5700K adjustable |
| CRI | >80 |
| Beam Angle | 120° |
| Rated Life | 100,000 hours to L70 |
| Operating Frequency | 50-60Hz |
| Power Factor | >0.9 |
| Operating Position | Horizontal and vertical |
| Surge Protection | Built-in 2kV surge protection |
| Dimming | 0-10V dimming driver; dimming cables included |
| Operating Temperature | -20°C to 50°C |
| Lens Material | PC / polycarbonate diffuser |
| Housing | SPCC steel housing |
| Housing Colour | White |
| Dimensions | 95.98" L × 2.95" W × 3.26" H |
| Metric Dimensions | 2438 mm × 75 mm × 83 mm |
| Weight | 3.12 kg / 6.88 lb |
| Location Rating | Damp location |
| Safety Listing | cETL listed |
| DLC Approved | DLC Premium |
| Energy Star | No |
| Warranty | 5 years |
Lumen Output by Wattage and CCT
| Wattage Setting | 3500K | 4000K | 4500K | 5000K | 5700K |
|---|---|---|---|---|---|
| 50W | 6,500 lm | 6,850 lm | 6,950 lm | 6,800 lm | 6,750 lm |
| 60W | 7,800 lm | 8,220 lm | 8,340 lm | 8,160 lm | 8,100 lm |
| 70W | 9,100 lm | 9,590 lm | 9,730 lm | 9,520 lm | 9,450 lm |
| 80W | 10,400 lm | 10,960 lm | 11,120 lm | 10,880 lm | 10,800 lm |
| 90W | 11,700 lm | 12,330 lm | 12,510 lm | 12,240 lm | 12,150 lm |
Sensor Settings
Factory Preset
The sensor preset is detection area 100%, hold time 5 seconds, stand-by period 0 seconds, stand-by dim level 10%, and daylight sensor disabled.
Remote Adjustable
Additional sensor setting changes can be made by remote control. Remote control is ordered separately.
Detection Options
The sensor supports selectable detection area, hold time, light-control levels, and standby dimming settings.
Warm-Up Behaviour
After power is connected, the fixture stays on briefly during warm-up before returning to normal sensor-controlled operation.
Best Applications
Stairwells & Corridors
Use in stairwells, corridors, back-of-house paths, and common areas where motion-based lighting control can help reduce unnecessary runtime.
Utility & Storage Areas
Suitable for utility rooms, storage rooms, service spaces, workshops, warehouse support areas, and maintenance rooms.
Retail & Office Back Areas
A practical option for office support areas, retail service spaces, staff areas, stock rooms, and commercial retrofit projects.
Fluorescent Strip Replacement
Use as an LED replacement option where older fluorescent strip fixtures are being upgraded to selectable LED linear lighting with built-in sensor control.
Installation & Accessory Notes
Mounting Options
The fixture supports suspension, wall, and surface-mounted installation. V-hooks, half-round fitting, wire cap, and screws are included.
Linkable Layouts
Linkable accessories are available separately for compatible fixture-row layouts. Confirm total connected load and installation requirements before connecting fixtures in series.
Dimming Compatibility
The fixture uses a 0-10V dimming driver. Compatible tested dimmer families listed by Votatec include Lutron, Leviton, and Legrand options.
Remote Control
The remote control for sensor setting adjustment is ordered separately. Confirm accessory requirements when planning sensor-controlled fixture layouts.
Related Votatec Wrap & Linear Strip Products
For the matching non-sensor 8ft linear strip, see the Votatec VO-ECSTR8FT-347V-5WAY 8ft LED Linear Strip Fixture. For the 4ft sensor version, see the Votatec VO-ECSTR4FT-347V-5WAY-S 4ft LED Linear Strip Fixture With Sensor. For surface-style wrap lighting, see the Votatec 4ft Linkable LED Wrap Light and the Votatec 4ft Linkable LED Wrap Light With Sensor.
Product Resources
Frequently Asked Questions
What is the Votatec VO-ECSTR8FT-347V-5WAY-S?
It is an 8ft CCT and power selectable LED linear strip fixture with a built-in microwave occupancy sensor, selectable 90W / 80W / 70W / 60W / 50W output, selectable 3500K / 4000K / 4500K / 5000K / 5700K colour temperature, AC120-347V input, and 0-10V dimming.
Does this 8ft Votatec linear strip have a built-in sensor?
Yes. VO-ECSTR8FT-347V-5WAY-S is the built-in sensor model. The matching non-sensor version is VO-ECSTR8FT-347V-5WAY.
Is this Votatec linear strip wattage adjustable?
Yes. This model supports 50W, 60W, 70W, 80W, and 90W selectable wattage settings.
Is this fixture CCT adjustable?
Yes. The fixture supports 3500K, 4000K, 4500K, 5000K, and 5700K selectable colour temperature.
Can this fixture be used on 347V?
Yes. The input voltage is AC120-347V.
Is this fixture dimmable?
Yes. The specification sheet lists a 0-10V dimming driver, and dimming cables are included.
Is the remote control included?
No. The remote control is ordered separately for sensor setting adjustments.
Where can this 8ft linear strip with sensor be used?
It is suitable for damp-location indoor applications such as stairwells, corridors, common areas, retail and office spaces, utility rooms, storage rooms, workshops, and general commercial retrofit lighting.
