Votatec VO-ECSTR4FT-347V-5WAY-S 4ft CCT & Power Selectable LED Linear Strip Fixture With Sensor

Save 24%

Price:
$79.98 $105
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Votatec LED Linear Strip With Sensor

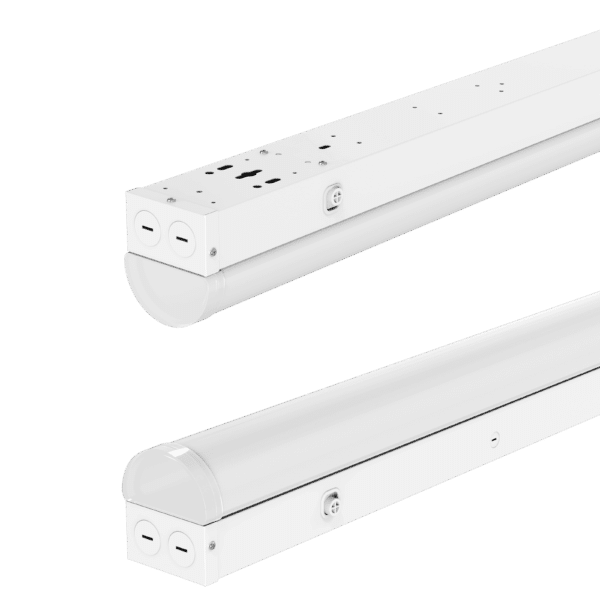

Votatec VO-ECSTR4FT-347V-5WAY-S 4ft CCT & Power Selectable LED Linear Strip Fixture With Sensor

The Votatec VO-ECSTR4FT-347V-5WAY-S is a 4ft round-lens LED linear strip fixture designed for stairwells, corridors, offices, retail common areas, utility rooms, storage areas, workshops, and commercial retrofit lighting where selectable output and built-in occupancy control are required.

This 4ft sensor model supports 40W / 35W / 30W / 20W / 12W power selection, 3500K / 4000K / 4500K / 5000K / 5700K CCT selection, AC120-347V input, 0-10V dimming, damp-location use, cETL listing, DLC Premium performance, and a built-in microwave sensor for automatic occupancy-based lighting control.

40W / 35W / 30W / 20W / 12W1560-5200 lm3500K-5700K120-347VBuilt-In Sensor0-10V DimmingDamp LocationDLC Premium

Why Choose This 4ft Linear Strip With Sensor?

Built-In Occupancy Control

The integrated microwave sensor helps reduce unnecessary energy use in areas such as stairwells, utility rooms, storage spaces, corridors, and other locations where lights may not need to stay fully on at all times.

Selectable CCT + Wattage

Choose from five wattage settings and five colour temperatures on site, making it easier to match brightness and colour needs across different areas using one fixture family.

Commercial 120-347V Fixture

The AC120-347V input, 0-10V dimming driver, damp-location rating, cETL listing, and DLC Premium approval make this fixture a practical option for commercial and multi-unit retrofit work.

Product Specifications

Brand Votatec
SKU VO-ECSTR4FT-347V-5WAY-S
Fixture Type 4ft CCT and power selectable LED linear strip fixture with built-in sensor
Sensor Built-in microwave occupancy sensor
Input Voltage AC120-347V
Wattage 40W / 35W / 30W / 20W / 12W adjustable
Lumen Output 1560-5200 lm depending on selected wattage and colour temperature
Colour Temperature 3500K / 4000K / 4500K / 5000K / 5700K adjustable
CRI >80
Beam Angle 120°
Rated Life 100,000 hours
Operating Frequency 50-60Hz
Power Factor >0.9
Dimming 0-10V dimming driver; dimming cables included
Surge Protection Built-in 2kV surge protection
Operating Temperature -20°C to 50°C / -68°F to 122°F
Lens Material PC diffuser
Housing Colour White
Housing Material SPCC steel housing
Dimensions 48.03" L × 2.95" W × 3.26" H / 1220 mm × 75 mm × 83 mm
Weight 1.5 kg / 3.31 lb
Mounting Suspended, wall-mounted, or surface-mounted installation; splicing connection
Rated For Enclosed Fixture Yes
Location Rating Damp location
Safety Listing cETL listed
DLC Approved DLC Premium
Warranty 5 years
Customer note: This is the built-in sensor version of the 4ft Votatec linear strip. For the matching non-sensor version, use VO-ECSTR4FT-347V-5WAY.

Lumen Output by Setting

Wattage 3500K 4000K 4500K 5000K 5700K
12W 1560 lm 1644 lm 1668 lm 1632 lm 1620 lm
20W 2600 lm 2740 lm 2780 lm 2720 lm 2700 lm
30W 3900 lm 4110 lm 4170 lm 4080 lm 4050 lm
35W 4550 lm 4795 lm 4865 lm 4760 lm 4725 lm
40W 5200 lm 5480 lm 5560 lm 5440 lm 5400 lm

Sensor Function

Occupancy-Based Operation

The built-in microwave sensor supports automatic lighting response based on occupancy, making it useful for areas where traffic changes throughout the day.

Adjustable Sensor Settings

The sensor supports selectable detection area, hold time, standby period, standby dim level, and daylight control settings when configured with the compatible remote control.

Remote Control Optional

The remote control is ordered separately when sensor setting changes are required. The factory preset supports basic operation out of the box.

Useful for Shared Spaces

Sensor control is helpful for stairwells, corridors, utility spaces, back rooms, storage areas, and other common spaces where automatic control can improve energy savings.

Best Applications

Stairwells & Corridors

Suitable for stairwells, hallway runs, corridors, common areas, and multi-unit building spaces where occupancy may vary.

Retail & Office Common Areas

Useful for back-of-house lighting, office service areas, common zones, storage rooms, and general commercial lighting upgrades.

Utility Rooms & Storage Areas

A practical choice for utility rooms, mechanical spaces, storage rooms, workshops, and service areas that benefit from adjustable output and occupancy sensing.

Commercial Retrofit Projects

Use as a replacement option for older fluorescent strip fixtures where 120-347V input, selectable settings, and sensor control are preferred.

Related Votatec Lighting

For the matching non-sensor version, see the Votatec VO-ECSTR4FT-347V-5WAY 4ft LED Linear Strip Fixture. For surface-style wrap lighting, see the Votatec 4ft Linkable LED Wrap Light and the Votatec 4ft Linkable LED Wrap Light With Sensor. Browse more options in the Votatec Commercial & Industrial Lighting collection and the Votatec Lighting & Electrical Products Canada collection.

Product Resources

Frequently Asked Questions

What is the Votatec VO-ECSTR4FT-347V-5WAY-S?

It is a 4ft CCT and power selectable LED linear strip fixture with a built-in microwave sensor, selectable 40W / 35W / 30W / 20W / 12W output, selectable 3500K / 4000K / 4500K / 5000K / 5700K colour temperature, AC120-347V input, and 0-10V dimming.

How is this different from VO-ECSTR4FT-347V-5WAY?

VO-ECSTR4FT-347V-5WAY-S includes a built-in sensor. VO-ECSTR4FT-347V-5WAY is the matching non-sensor version.

Is this Votatec linear strip wattage adjustable?

Yes. This model supports 12W, 20W, 30W, 35W, and 40W selectable wattage settings.

Is this fixture CCT adjustable?

Yes. The fixture supports 3500K, 4000K, 4500K, 5000K, and 5700K selectable colour temperature.

Can this fixture be used on 347V?

Yes. The input voltage is AC120-347V.

Is this fixture dimmable?

Yes. The specification sheet lists a 0-10V dimming driver, and dimming cables are included.

Does the remote control come with the fixture?

The remote control is ordered separately when sensor setting changes are required.

Where can this sensor linear strip be used?

It is suitable for damp-location indoor applications such as stairwells, common areas, retail and office spaces, utility rooms, storage rooms, workshops, corridors, and general retrofit lighting.

Need Votatec 4ft Sensor Linear Strip Fixtures for a Project?

Contact MarsLED for stock checks, quantity pricing, and fixture recommendations for stairwells, corridors, offices, utility rooms, storage spaces, workshops, and commercial retrofit projects.

Order Desk: 1-833-277-6277
Milton: 905-878-9997
Kitchener: 519-893-6666
