Votatec VO-ECSTR2FT-347V-5WAY 2ft CCT & Power Selectable LED Linear Strip Fixture

Save 23%

Price:
$45.98 $59.98
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Votatec 2ft Linear Strip Fixture

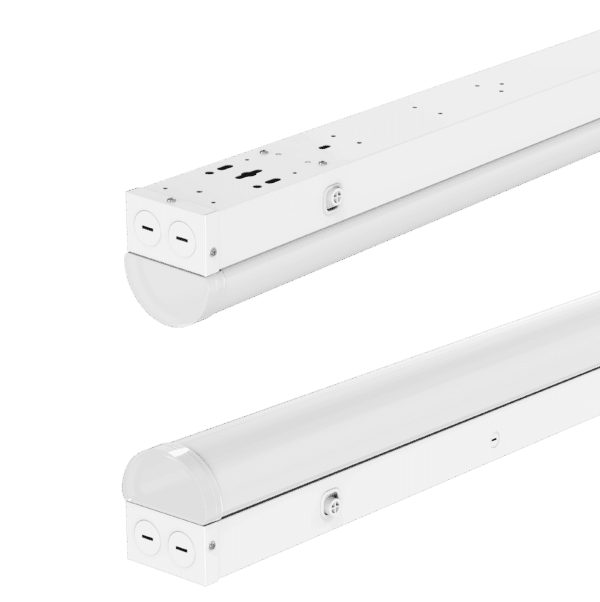

Votatec VO-ECSTR2FT-347V-5WAY 2ft CCT & Power Selectable LED Linear Strip Fixture

The Votatec VO-ECSTR2FT-347V-5WAY is a compact 2ft LED linear strip fixture for utility rooms, stairwells, corridors, storage rooms, closets, service spaces, retail back rooms, office support areas, workshops, and commercial retrofit lighting.

This fixture supports selectable 25W / 20W / 17.5W / 15W / 10W output, selectable 3500K / 4000K / 4500K / 5000K / 5700K colour temperature, AC120-347V input, 0-10V dimming, damp-location use, and DLC Premium listing. It is a practical LED replacement option where a shorter linear strip fixture is required.

25W / 20W / 17.5W / 15W / 10W1,300-3,250 Lumens3500K-5700K SelectableAC120-347V0-10V Dimming2ft LengthDamp LocationDLC Premium

Why Choose This 2ft Linear Strip Fixture?

Compact Linear Lighting

The 2ft body is ideal for smaller rooms, narrow utility spaces, closets, service areas, stairwells, and short lighting runs where a 4ft or 8ft fixture is too long.

Adjustable CCT + Wattage

Select the light level and colour temperature on site to match the space, from lower-output utility lighting to higher-output commercial task lighting.

120-347V Project Flexibility

The AC120-347V input supports many commercial, multi-unit, institutional, retail, office, and service-area electrical environments.

Product Specifications

Brand Votatec
SKU VO-ECSTR2FT-347V-5WAY
Fixture Type 2ft CCT and power selectable LED linear strip fixture
Sensor No built-in sensor. Sensor model available separately as VO-ECSTR2FT-347V-5WAY-S.
Input Voltage AC120-347V
Wattage 25W / 20W / 17.5W / 15W / 10W adjustable
Lumen Output 3,250 / 2,600 / 2,275 / 1,950 / 1,300 lm depending on selected wattage
Colour Temperature 3500K / 4000K / 4500K / 5000K / 5700K adjustable
CRI >80
Beam Angle 120°
Rated Life 100,000 hours to L70
Operating Frequency 50-60Hz
Power Factor >0.9
Operating Position Horizontal and vertical
Surge Protection Built-in 2kV surge protection
Dimming 0-10V dimming driver; dimming cables included
Operating Temperature -20°C to 50°C
Lens Material PC / polycarbonate diffuser
Housing SPCC steel housing
Housing Colour White
Dimensions 23.78" L × 2.95" W × 3.26" H
Metric Dimensions 604 mm × 75 mm × 83 mm
Weight 0.83 kg / 1.83 lb
IP Rating IP20
Location Rating Damp location
Safety Listing cETL listed
DLC Approved DLC Premium
Energy Star No
Warranty 5 years
Helpful information: This 2ft linear strip fixture is a compact non-sensor model. For built-in sensor control, choose VO-ECSTR2FT-347V-5WAY-S.

Lumen Output by Wattage

Wattage Setting Lumen Output Best-Fit Use
25W 3,250 lm Higher-output utility, service, workshop, or commercial lighting
20W 2,600 lm General utility rooms, corridors, storage rooms, and back-of-house lighting
17.5W 2,275 lm Balanced light output for smaller commercial and support spaces
15W 1,950 lm Lower-output rooms, closets, compact service areas, and stairwell zones
10W 1,300 lm Low-output applications where reduced brightness is preferred

Best Applications

Utility Rooms & Closets

The compact 2ft size is suitable for smaller rooms, storage closets, electrical rooms, service spaces, and maintenance areas.

Stairwells & Corridors

Use in shorter stairwell sections, corridor transitions, common areas, and back-of-house spaces where compact linear lighting is needed.

Retail & Office Support Areas

A practical option for staff rooms, stock rooms, office support areas, retail service areas, and commercial retrofit projects.

Fluorescent Strip Replacement

Use as an LED replacement option where older short fluorescent strip fixtures are being upgraded to selectable LED linear lighting.

Installation & Accessory Notes

Mounting Options

The fixture supports suspension, wall, and surface-mounted installation. V-hooks, half-round fitting, wire cap, and screws are included.

Linkable Layouts

Linkable accessories are available separately for compatible fixture-row layouts. Confirm total connected load and installation requirements before connecting fixtures in series.

Dimming Compatibility

The fixture uses a 0-10V dimming driver. Compatible tested dimmer families listed by Votatec include Lutron, Leviton, and Legrand options.

Easy Access Design

The PC cover is designed to open easily for setup, with DIP switches for 5CCT and 5-power adjustment.

Related Votatec Wrap & Linear Strip Products

For the matching 2ft sensor model, see the Votatec VO-ECSTR2FT-347V-5WAY-S 2ft LED Linear Strip Fixture With Sensor. For larger non-sensor layouts, see the Votatec VO-ECSTR4FT-347V-5WAY 4ft LED Linear Strip Fixture and the Votatec VO-ECSTR8FT-347V-5WAY 8ft LED Linear Strip Fixture. For surface-style wrap lighting, see the Votatec 4ft Linkable LED Wrap Light.

Product Resources

Frequently Asked Questions

What is the Votatec VO-ECSTR2FT-347V-5WAY?

It is a 2ft CCT and power selectable LED linear strip fixture with selectable 25W / 20W / 17.5W / 15W / 10W output, selectable 3500K / 4000K / 4500K / 5000K / 5700K colour temperature, AC120-347V input, and 0-10V dimming.

Does this 2ft Votatec linear strip have a built-in sensor?

No. VO-ECSTR2FT-347V-5WAY is the non-sensor model. The matching built-in sensor version is VO-ECSTR2FT-347V-5WAY-S.

Is this Votatec linear strip wattage adjustable?

Yes. This model supports 10W, 15W, 17.5W, 20W, and 25W selectable wattage settings.

Is this fixture CCT adjustable?

Yes. The fixture supports 3500K, 4000K, 4500K, 5000K, and 5700K selectable colour temperature.

Can this fixture be used on 347V?

Yes. The input voltage is AC120-347V.

Is this fixture dimmable?

Yes. The specification sheet lists a 0-10V dimming driver, and dimming cables are included.

Where can this 2ft linear strip be used?

It is suitable for damp-location indoor applications such as utility rooms, closets, stairwells, corridors, common areas, retail and office spaces, storage rooms, workshops, and general commercial retrofit lighting.

Need Votatec 2ft Linear Strip Fixtures for a Project?

Contact MarsLED for stock checks, quantity pricing, and fixture recommendations for utility rooms, closets, stairwells, corridors, offices, storage spaces, workshops, and commercial retrofit projects.
