Description

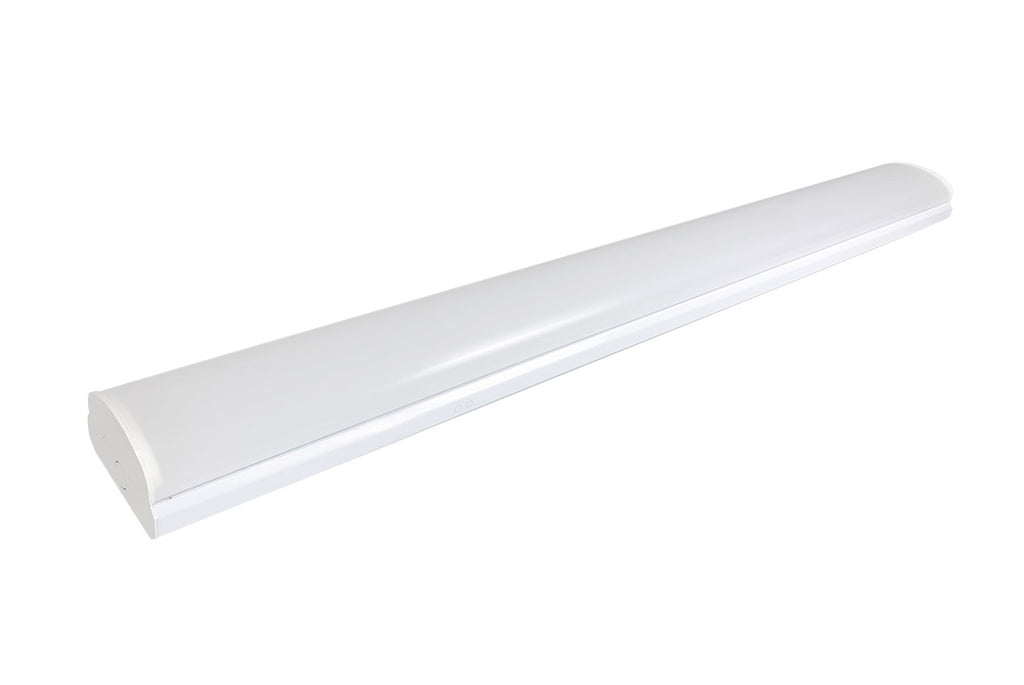

CSC LED WR2-35W-3P-3CCT-UD – 4ft Power & 3CCT Selectable LED Wrap Fixture
WR2 Wrap Fixture: 20W/28W/35W l 3CCT l 120-347V | 2823-4989 lm

The CSC LED WR2-35W-3P-3CCT-UD is a versatile 4ft LED wrap fixture designed for commercial corridors, utility spaces, back-of-house areas and light industrial environments. With power selectable (20W / 28W / 35W) and 3CCT selectable (3500K / 4000K / 5000K) settings, one fixture can cover multiple layouts and light levels while delivering efficient, low-glare illumination.
This WR2 wrap is DLC listed and suitable for Save on Energy Instant Discounts when purchased through Mars Lighting & Electrical Distribution (MarsLED). Qualifying commercial projects in Ontario can receive instant rebates applied directly on the MarsLED invoice.
Request a Rebate-Eligible Lighting Quote View Save on Energy Eligible LED Products
Key Features
- 4ft wraparound LED fixture with clean, low-profile housing.
- Power selectable: 20W / 28W / 35W via internal DIP switch.
- 3CCT selectable: 3500K / 4000K / 5000K colour temperature.
- High efficacy LED engine providing up to ~4,900+ delivered lumens (at higher power/CCT settings).
- 0–10V dimmable driver with 120–347V universal input.
- Wide 120° beam for smooth, even light distribution.
- Long-life LEDs with an L70 lifetime rated over 54,000 hours (typical).*
- Optional motion sensor and emergency accessories available (sold separately).*
*Based on manufacturer published data. Always refer to the official WR2 spec sheet for detailed ratings.
Ideal Applications
- Corridors and service hallways
- Storage rooms and utility spaces
- Commercial and institutional back-of-house areas
- Multi-residential common areas and laundry rooms
- Light industrial and maintenance areas
- Schools, retail stock rooms, and support spaces
Certifications & Listings
- cETL listed for safety.
-
DLC Standard listed for:
- Low-bay luminaires for commercial and industrial buildings.
- Direct linear ambient luminaires.
- IP20 rated for dry indoor locations.
- 5-year limited warranty from CSC LED.
Specifications Overview
Optical & Performance
- Selectable wattage: 20W / 28W / 35W.
- Selectable CCT: 3500K, 4000K, or 5000K.
- High efficacy LED system (up to mid-140 lm/W range depending on setting).
- Approx. lumen output range from ~2,800 to ~5,000 lumens (manufacturer data).
- Wide 120° distribution for broad, even coverage.
- Rated L70 life over 54,000 hours (typical operating conditions).
Electrical
- Input voltage: 120–347V (universal).
- 0–10V dimmable driver for advanced control systems.
- High power factor (≈0.9) and low THD (<20%) as per spec sheet.
- Typical operating temperature: approx. -25°C to +40°C.
- Surge protection and auxiliary output options available on certain configurations.
Construction & Mounting
- 4ft steel housing with durable white powder-coat finish.
- Wraparound acrylic lens for smooth, low-glare illumination.

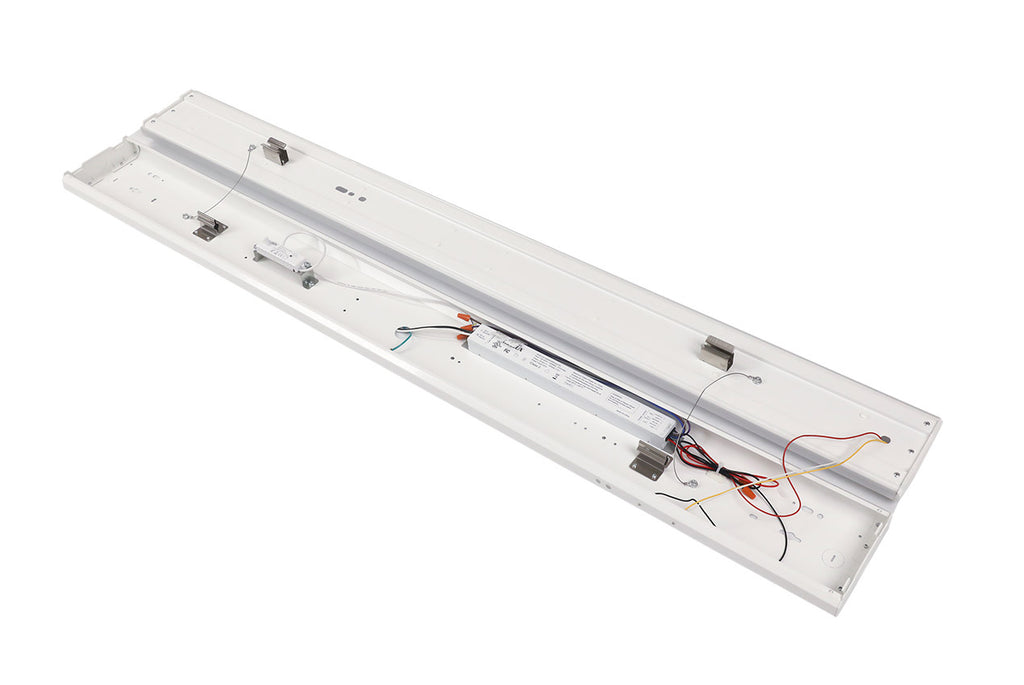

- Two-piece design (base + light engine) for easier installation.
- Mounts directly to ceiling surface or via optional suspension kit.*

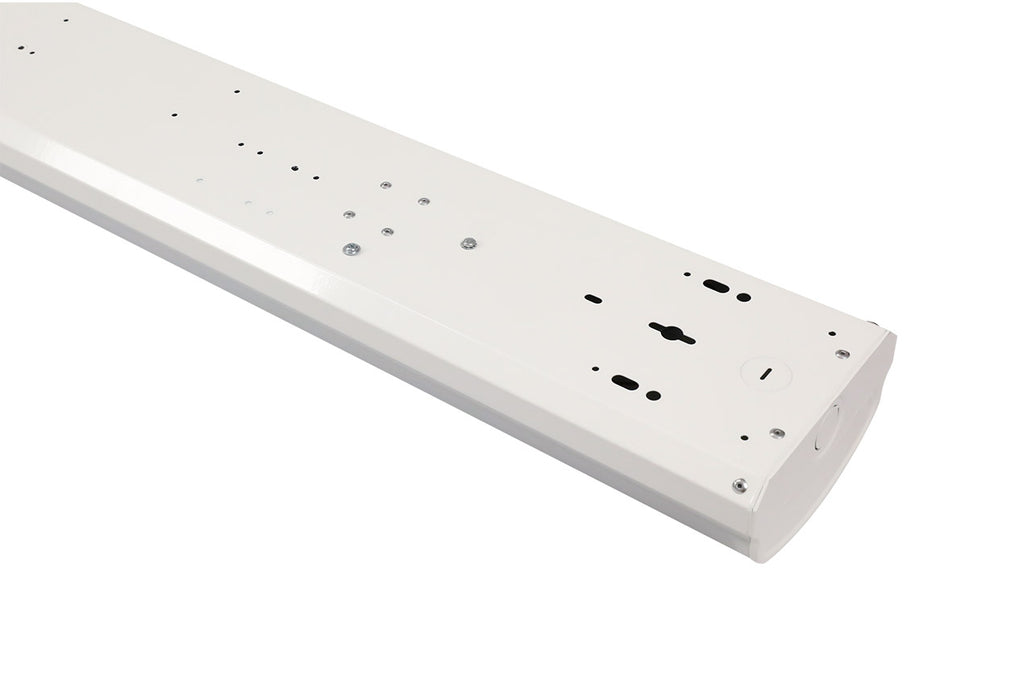

- Knockouts on each end for conduit entry and through-wiring.
- Fixture dimensions approx. 48" x 5.3" x 2.8" (per manufacturer data).
*Refer to CSC LED accessories for compatible suspension and sensor options.
Related CSC LED & Rebate Resources
- CSC LED Authorized Distributor in Ontario – MarsLED
- Browse All CSC LED Products at MarsLED
- Save on Energy Eligible LED Lighting Collection
- Ontario LED Rebates – Save on Energy Program Overview
- LED Energy Saving & Rebate Estimator
Resources & Downloads
Download the official CSC LED WR2-35W-3P-3CCT-UD product sheet for complete technical data, photometrics, and DLC listing details.
Download CSC LED WR2-35W-3P-3CCT-UD Product Sheet (PDF)
