Description
2-Foot Line-Voltage Linkable T5 LED Fixture — 9W, 900 Lumens, 3CCT
The Votatec VO-T5FIXW9FT2-120-3WAY-S-D is a slim 23.7-inch integrated LED fixture designed for longer under-cabinet runs, retail shelving, workbenches, display counters, closets, utility spaces, and commercial task-lighting applications.
This 120V line-voltage fixture does not require a separate low-voltage transformer. It can be powered with a compatible direct-wire junction box, plug-in power cord, or approved power accessory and linked to other Votatec T5 fixtures using direct connections or jumper cords.
Why Choose the 2-Foot Votatec T5 Fixture?
Extended 2-Foot Coverage
The 23.7-inch fixture suits longer cabinet sections, display shelves, counters, work surfaces, and commercial task-lighting runs.
Efficient 900-Lumen Output
Delivers 900 lumens from only 9W, providing practical task illumination for residential and light-commercial applications.
Flexible Linked System
Combine it with other Votatec T5 lengths and use approved jumper cords where the lighting run crosses gaps or obstructions.
Recommended Applications

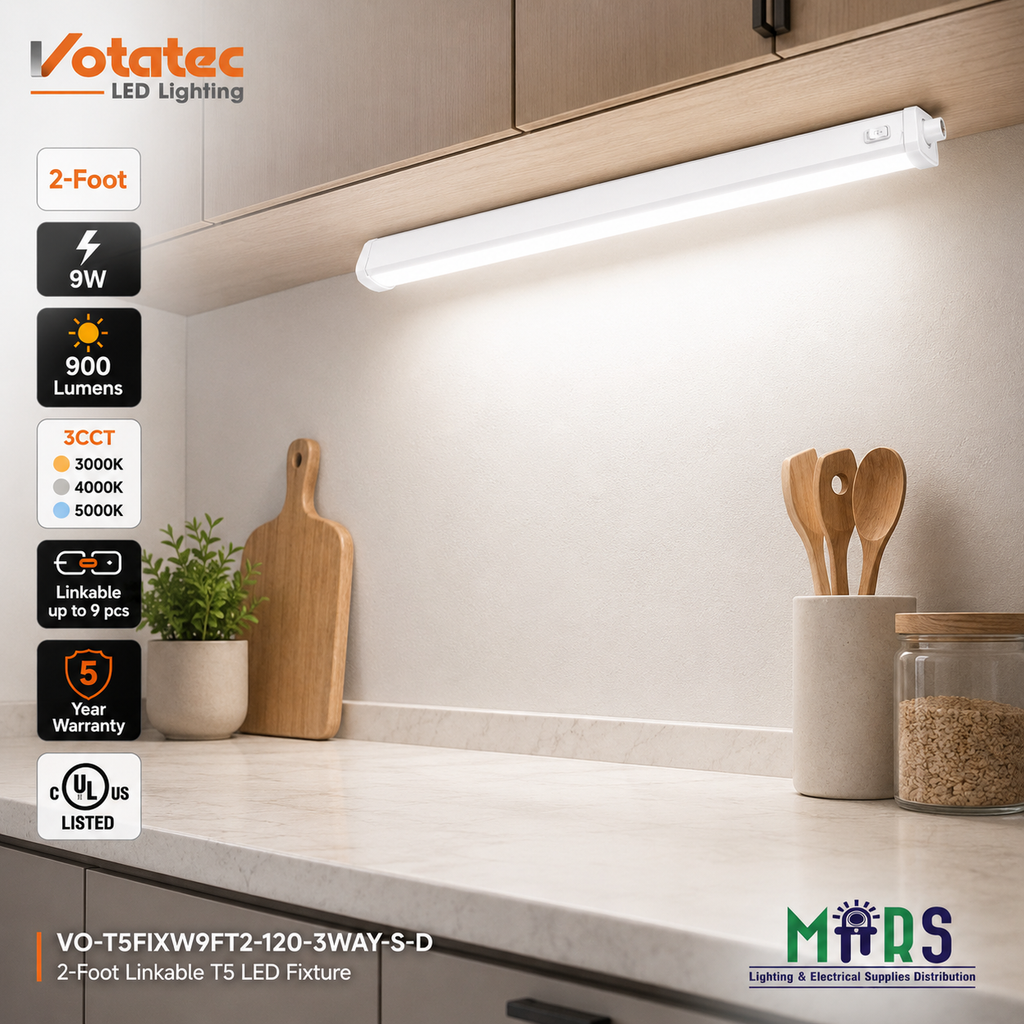

Longer Kitchen Cabinet Runs
Illuminate countertops, food-preparation areas, coffee bars, appliance zones, sinks, and extended cabinet sections.
Retail Shelving & Displays
Add consistent lighting to product shelves, showcases, service counters, merchandising displays, bookcases, and feature walls.
Workbenches & Desks
Provide direct task lighting above workbenches, hobby tables, repair counters, desks, and small commercial workstations.
Closets & Utility Spaces
Use the slim fixture in closets, pantries, storage rooms, laundry areas, utility spaces, and service counters.
Technical Specifications
| Brand | Votatec |
|---|---|
| Full Model | VO-T5FIXW9FT2-120-3WAY-S-D |
| Product Type | Slim integrated line-voltage linkable T5 LED fixture |
| Primary Application | Under-cabinet, shelf, display, workbench, task, closet, and utility lighting |
| Nominal Length | 2 feet |
| Actual Length | Approximately 23.7 inches |
| Width | Approximately 1 inch |
| Height | Approximately 0.6 inch |
| Input Voltage | 120V AC, 60Hz |
| Working Voltage Range | Approximately 108–132V |
| Power | 9W |
| Light Output | 900 lumens |
| Efficacy | Approximately 100 lm/W |
| Selectable CCT | 3000K / 4000K / 5000K |
| Dimming | Dimmable with a compatible control |
| CRI | Greater than 80 |
| Beam Angle | 135° |
| Power Factor | Approximately 0.9 |
| Location Rating | IP20; dry indoor locations |
| Operating Temperature | Approximately −20°C to +45°C |
| Rated Life | Up to 50,000 hours |
| Maximum Linked Quantity | Up to 9 of this 9W model, subject to current manufacturer instructions |
| Certification | cUL / UL-CSA listed as represented by manufacturer documentation |
| Warranty | 5 years, subject to manufacturer and seller terms |
Included Installation Hardware
Mounting Components
- Two 4 × 22 mm mounting screws
- Two 4 × 16 mm mounting screws
- Two mounting clips
- Two wall plugs
Fixture End Component
- Female end cap
Power and linking accessories are sold separately; choose the correct connection option for the installation.
Compatible Power & Linking Accessories
Compare the Complete Votatec T5 Family
| Model | Length | Power | Output | Maximum Linked | Recommended Use |
|---|---|---|---|---|---|
| VO-T5FIXW3FT0.5-120-3WAY-S-D | 6 in / 0.5 ft | 3W | 250 lm | 26 | Short cabinets, display niches, and compact accent areas |
| VO-T5FIXW5FT1-120-3WAY-S-D | 12 in / 1 ft | 5W | 500 lm | 16 | Under cabinets, shelves, closets, and task-lighting runs |
| VO-T5FIXW9FT2-120-3WAY-S-D | 23.7 in / 2 ft | 9W | 900 lm | 9 | Counters, longer shelves, displays, and work areas |
| VO-T5FIXW13FT3-120-3WAY-S-D | 35.6 in / 3 ft | 13W | 1300 lm | 6 | Extended counters, offices, workshops, and task areas |
| VO-T5FIXW18FT4-120-3WAY-S-D | 47.5 in / 4 ft | 18W | 1800 lm | 4 | Long runs, utility spaces, workbenches, and commercial displays |
Shop the Complete Votatec T5 System
Related Votatec Collections
Frequently Asked Questions
Does the 2-foot T5 fixture require a transformer?
No. It operates at 120V line voltage and requires an approved Votatec power connection.
What is the actual length of the fixture?
The nominal 2-foot fixture measures approximately 23.7 inches long.
What colour temperatures are available?
The fixture provides selectable 3000K, 4000K, and 5000K colour temperatures.
How many 2-foot fixtures can be linked?
Votatec lists up to 9 of this 9W model in one linked run, subject to current manufacturer instructions.
Can this fixture be used under kitchen cabinets?
Yes. It is well suited to longer cabinet sections, countertops, shelves, and task-lighting runs in dry indoor locations.
Are the power accessories included?
No. The direct-wire box, plug-in cord, jumper cable, and separate power cord are sold separately.
Need Help Planning a Votatec T5 Lighting Run?
Contact MarsLED with the cabinet or shelf measurements, fixture quantities, installation layout, power method, and control requirements.
