Votatec HD-SB05A-300WD-G-T3050-MSP 300W CCT, Power & Beam Angle Adjustable LED Area Light

Save 25%

Price:
$299.98 $400
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Votatec 300W Beam Adjustable Area Light

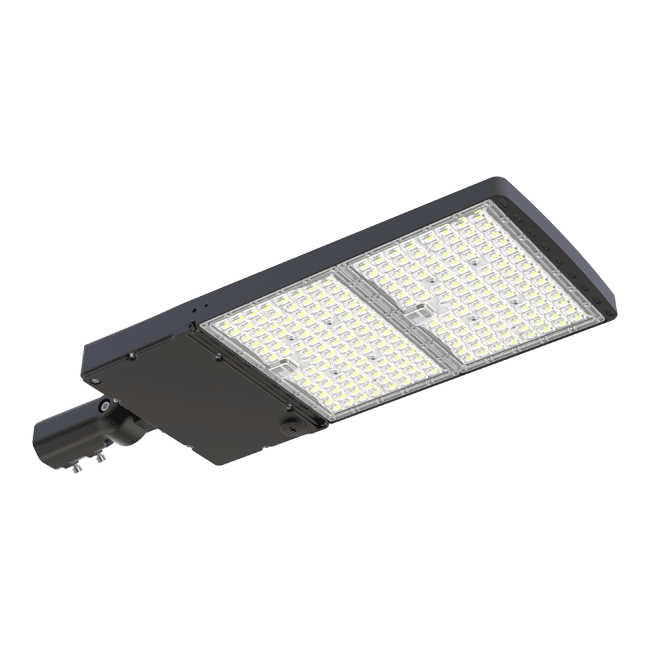

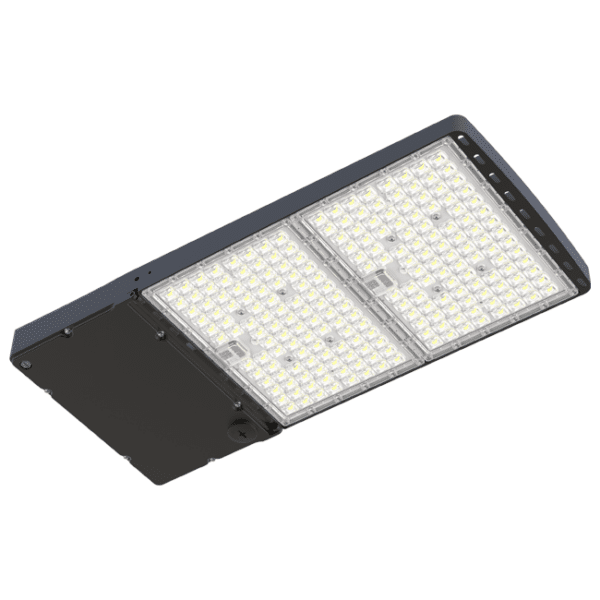

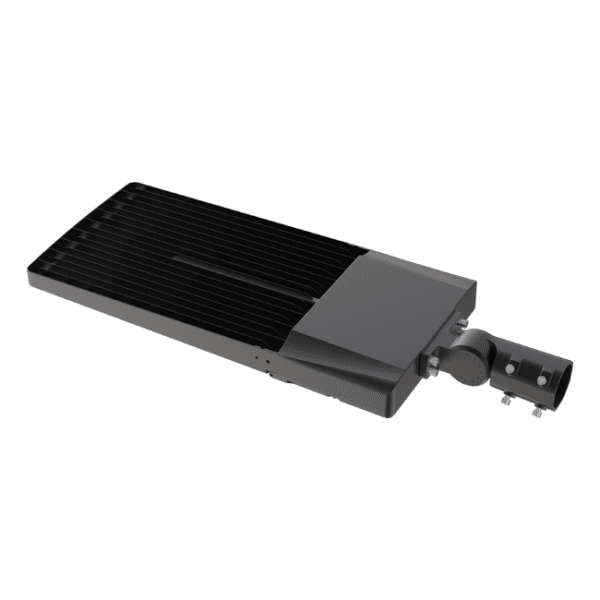

Votatec HD-SB05A-300WD-G-T3050-MSP 300W CCT, Power & Beam Angle Adjustable LED Area Light

The Votatec HD-SB05A-300WD-G-T3050-MSP is a commercial LED area light built for parking lots, roadway-style layouts, yards, building exteriors, pole lighting, site lighting, loading areas, and perimeter lighting projects where beam distribution flexibility matters.

This 120-347V area light supports 300W / 240W / 200W power selection, 3000K / 4000K / 5000K CCT selection, T3 / T4 / T5 beam angle adjustment, IP66 outdoor protection, bronze housing, built-in photocell, and bracket compatibility for round pole, square pole, and wall-mount applications.

300W / 240W / 200W30,000-45,000 Lumens3000K / 4000K / 5000KT3 / T4 / T5 Adjustable120-347VIP66Built-in PhotocellBronze

Why Choose This Votatec Beam Adjustable Area Light?

Beam Angle Adjustable

Choose Type 3, Type 4, or Type 5 distribution to better match different outdoor layouts, including roadway-style coverage, perimeter lighting, and wider open-area lighting.

Power + CCT Adjustable

Select 300W, 240W, or 200W and choose 3000K, 4000K, or 5000K on site to match brightness, energy use, and colour temperature requirements.

Outdoor Commercial Design

IP66 protection, bronze housing, built-in photocell, and multiple bracket options make this fixture suitable for commercial exterior and site-lighting projects.

Verified Product Specifications

Brand Votatec
SKU HD-SB05A-300WD-G-T3050-MSP
Fixture Type CCT + power + beam angle adjustable LED area light with built-in photocell
Input Voltage AC120-347V
Wattage 300W / 240W / 200W adjustable
Lumen Output 30,000-45,000 lm listed
Colour Temperature 3000K / 4000K / 5000K adjustable
CRI >80
Beam / Distribution T3 / T4 / T5 adjustable
Rated Life 50,000 hours listed
Input Current <7A listed
Operating Frequency 50/60Hz
Power Factor >0.9
Surge Protection Built-in surge protection listed
Operating Temperature -40°C to 45°C / -40°F to 113°F
Lens Material Clear polycarbonate lens
Housing Aluminum housing
Housing Colour Bronze
Dimensions 16.57" L × 12.20" W × 2.72" H
IP Rating IP66
Photocell Built-in photocell

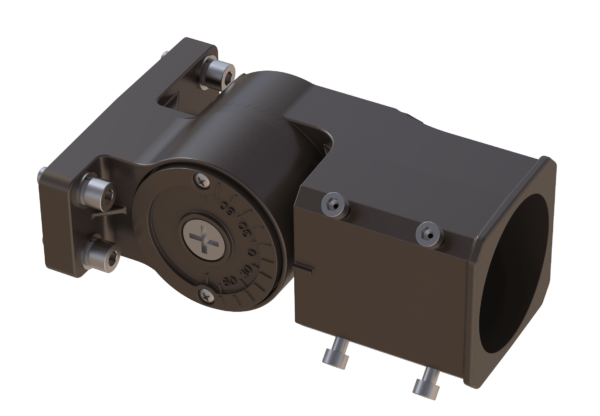

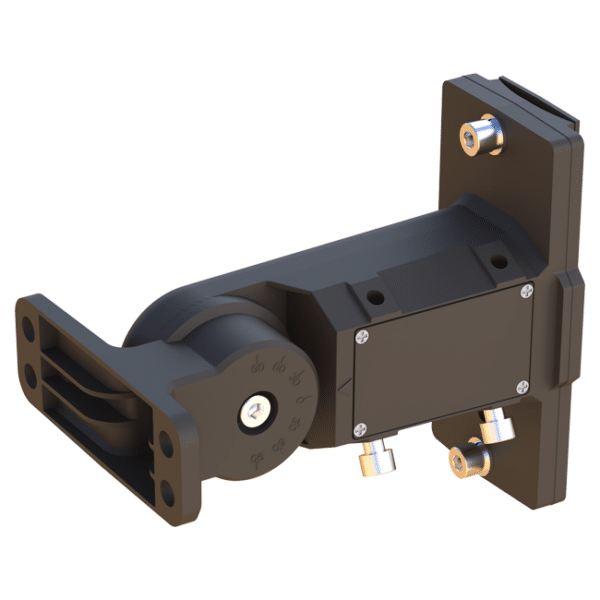

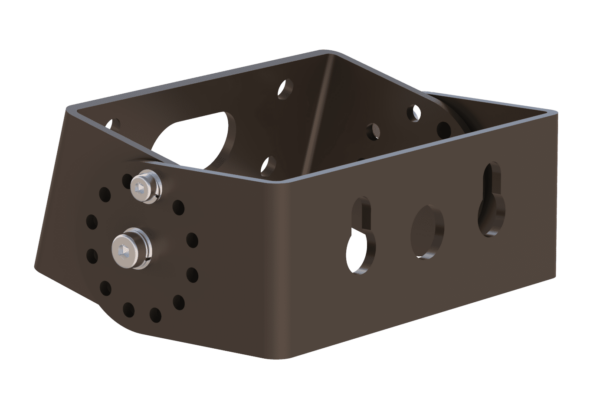

Mounting Compatibility SF, TR, and RS bracket options; hardware listed for round pole, square pole, and wall mounting scenarios
DLC DLC approved per 2025 SB05A PDF; confirm exact DLC ID/status before rebate-sensitive quoting
Warranty 5 years
Catalogue Carton Qty 1
Project note: This SB05A beam-adjustable area light is suitable for outdoor projects where the lighting layout may require Type 3, Type 4, or Type 5 distribution from the same fixture family.

Beam Angle Selection: T3 / T4 / T5

Type 3

Useful for roadway-style, narrow rectangular, or long forward-throw lighting layouts where coverage needs to extend along a path or drive lane.

Type 4

Useful for perimeter, wall-side, or forward-throw applications where the fixture is positioned near the edge of the area being lit.

Type 5

Useful for wider general area lighting where light needs to spread more evenly around the mounting location.

Best Applications

Parking Lot Lighting

Use for commercial parking lots, plazas, service yards, and outdoor site lighting where beam distribution flexibility is helpful.

Roadway & Drive Lane Lighting

The T3 / T4 / T5 beam options make this area light useful for drive lanes, access roads, perimeter zones, and directional site lighting layouts.

Pole & Wall-Mount Projects

Compatible bracket options allow the fixture to support round pole, square pole, and wall-mount installation scenarios.

Dusk-to-Dawn Projects

The built-in photocell helps support automatic outdoor lighting operation where dusk-to-dawn control is needed.

Related Votatec Area Lights

For a standard Type 5 300W area light, see the Votatec HD-SB05-300WD-G-T3050-SP 300W LED Area Light. For lower-output site lighting, see the Votatec HD-SB05-150WD-G-T3050-SP 150W LED Area Light. For high-output outdoor lighting, see the Votatec HD-SB05-500WD-G-T3050-SP 500W LED Area Light.

Product Resources

Frequently Asked Questions

What is the Votatec HD-SB05A-300WD-G-T3050-MSP?

It is a 300W CCT, power, and beam angle adjustable LED area light with 120-347V input, 300W / 240W / 200W power selection, 3000K / 4000K / 5000K CCT selection, T3 / T4 / T5 beam selection, IP66 rating, and built-in photocell.

Is this Votatec area light wattage adjustable?

Yes. This model supports 300W, 240W, and 200W selectable power settings.

Is this LED area light CCT adjustable?

Yes. The fixture supports 3000K, 4000K, and 5000K selectable colour temperature.

What does beam angle adjustable mean?

This model allows Type 3, Type 4, or Type 5 beam distribution selection, helping contractors match the light pattern to different pole, roadway, perimeter, or open-area layouts.

Does this area light include a photocell?

Yes. The product is listed with built-in photocell functionality for outdoor lighting control.

What mounting brackets work with this fixture?

The SB05A area light family supports SF, TR, and RS bracket options for different pole and wall mounting scenarios. Confirm the selected bracket at order time.

Need Beam Adjustable Area Lights for a Project?

Contact MarsLED for stock checks, contractor quantities, bracket selection, parking lot lighting quantities, and project pricing for commercial outdoor lighting layouts.
