Description

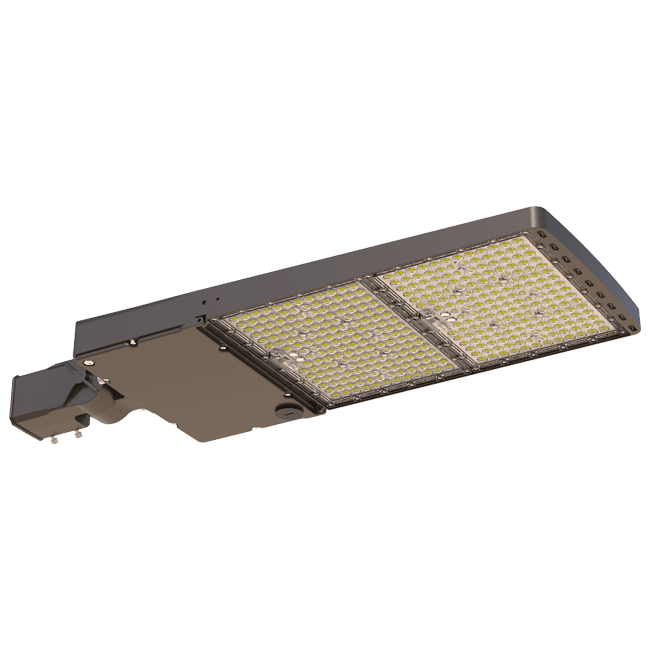

Votatec HD-SB05-500WD-G-T3050-SP 500W CCT & Power Adjustable LED Area Light with Photocell
The Votatec HD-SB05-500WD-G-T3050-SP is a high-output bronze commercial LED area light for parking lots, large yards, pole lighting, building exteriors, loading areas, outdoor work zones, and site security lighting projects.
This 120-347V area light supports 500W / 400W / 300W / 240W power selection, 3000K / 4000K / 5000K CCT selection, 0-10V dimming, Type 5 light distribution, IP65 wet-location rating, built-in surge protection, mini photocell control, and 5-year warranty coverage.
Why Choose This 500W Votatec LED Area Light?
High-Output Outdoor Lighting
With up to 80,000 lumens listed, this model is built for larger parking lots, yards, loading areas, commercial properties, and outdoor site lighting projects.
Power + CCT Adjustable
Select 500W, 400W, 300W, or 240W and choose 3000K, 4000K, or 5000K on site to match project brightness and colour temperature needs.
Photocell Ready
The mini photocell helps support dusk-to-dawn style control where automatic outdoor lighting operation is required.
Verified Product Specifications
| Brand | Votatec |
|---|---|
| SKU | HD-SB05-500WD-G-T3050-SP |
| Fixture Type | CCT + power adjustable LED area light with photocell |
| Input Voltage | AC120-347V |
| Wattage | 500W / 400W / 300W / 240W adjustable |
| Lumen Output | 38,400-80,000 lm listed |
| Colour Temperature | 3000K / 4000K / 5000K adjustable |
| CRI | >80 |
| Beam / Distribution | 143° × 145° Type 5 distribution |
| Dimming | 0-10V dimming driver; 6 ft dimming cable included |
| Power Cable | 6 ft power cable included |
| Rated Life | 50,000 hours listed in general specification; vendor feature page references over 100,000 hours to L70 |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| Surge Protection | Built-in surge protection listed; 6kV surge protection referenced in feature page |
| Operating Temperature | -40°C to 45°C / -40°F to 113°F |
| Lens Material | Clear polycarbonate lens |
| Housing | Aluminum housing |
| Housing Colour | Bronze |
| Dimensions | 26.77" L × 12.17" W × 2.80" H |
| Weight | 13.36 lb |
| IP Rating | IP65 |
| Location Rating | Wet location |
| Photocell | Mini photocell / light control function |

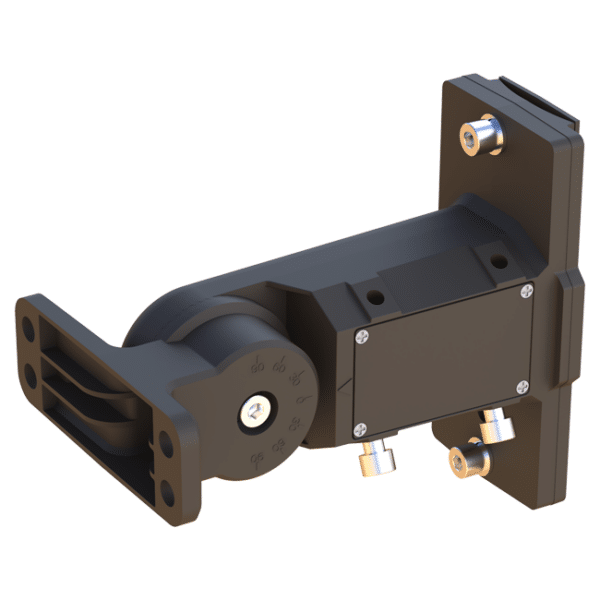

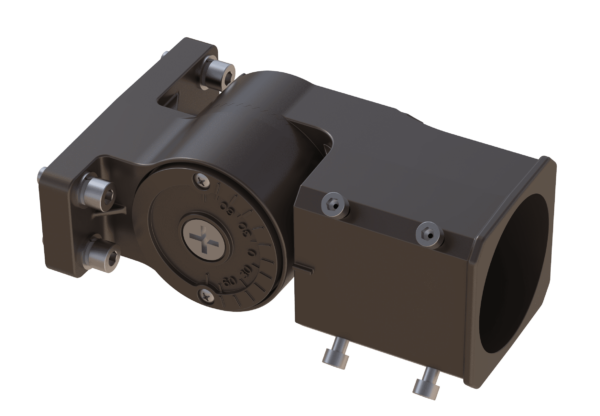

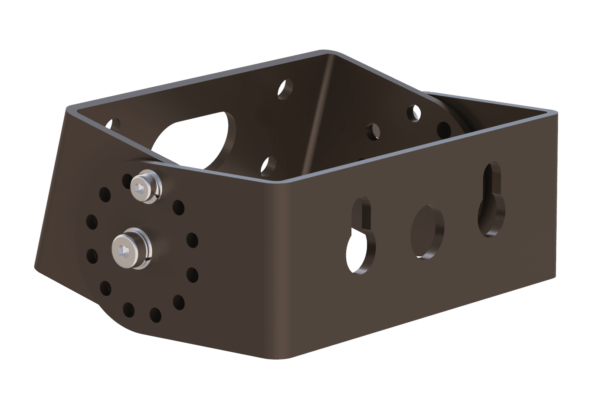

| Mounting Compatibility | SF 500, RS 500, and TR bracket options; confirm selected bracket at order time |
| Safety Listing | cULus-listed |
| DLC Rating | DLC Premium listed in catalogue; vendor PDF table also shows DLC Approved as No, so confirm DLC status for rebate-sensitive projects before quoting |
| Warranty | 5 years |
| Catalogue Carton Qty | 1 |
Best Applications
Large Parking Lot Lighting
Use for larger commercial parking lots, plazas, dealerships, industrial yards, and wide outdoor site lighting layouts where high output is required.
Yard & Building Exterior Lighting
Suitable for large yards, loading areas, building perimeters, storage compounds, and commercial outdoor spaces requiring 120-347V LED lighting.
Pole & Wall-Mount Projects
Compatible bracket options allow the fixture to support round pole, square pole, and wall-mount installation scenarios.
Dusk-to-Dawn Projects
The photocell function helps support automatic outdoor lighting operation where dusk-to-dawn control is needed.
Related Votatec Area Lights
For lower-output site lighting, see the Votatec HD-SB05-150WD-G-T3050-SP 150W LED Area Light. For medium-to-large parking lots, see the Votatec HD-SB05-300WD-G-T3050-SP 300W LED Area Light. Browse the full Votatec Commercial & Industrial Lighting collection.
Product Resources
Frequently Asked Questions
What is the Votatec HD-SB05-500WD-G-T3050-SP?
It is a 500W CCT + power adjustable LED area light with selectable 500W / 400W / 300W / 240W output, selectable 3000K / 4000K / 5000K colour temperature, 120-347V input, IP65 rating, and mini photocell functionality.
Is this Votatec area light wattage adjustable?
Yes. This model supports 500W, 400W, 300W, and 240W selectable power settings.
Is this LED area light CCT adjustable?
Yes. The fixture supports 3000K, 4000K, and 5000K selectable colour temperature.
Does this area light include a photocell?
Yes. The product is listed with mini photocell / light-control functionality for outdoor lighting control.
Is this fixture wet-location rated?
Yes. The vendor specification lists IP65 and cULus wet-location certification.
What mounting brackets work with this fixture?
The SB05 500W area light supports SF 500, RS 500, and TR bracket options for different pole and wall mounting scenarios. Confirm the selected bracket at order time.
Need Votatec 500W Area Lights for a Project?
Contact MarsLED for stock checks, contractor quantities, bracket selection, parking lot lighting quantities, and project pricing for commercial outdoor lighting layouts.
Order Desk: 1-833-277-6277
Milton: 905-878-9997
Kitchener: 519-893-6666
