Votatec HD-SB05-150WD-G-T3050-SP 150W CCT & Power Adjustable LED Area Light with Photocell

Save 26%

Price:
$169.98 $230
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

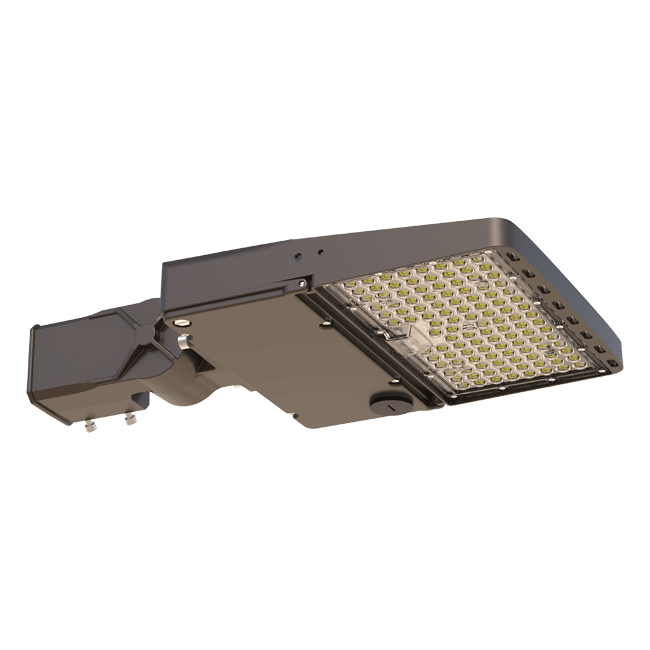

Votatec 150W LED Area Light

Votatec HD-SB05-150WD-G-T3050-SP 150W CCT & Power Adjustable LED Area Light with Photocell

The Votatec HD-SB05-150WD-G-T3050-SP is a bronze LED area light for parking lots, yards, building exteriors, pole lighting, commercial outdoor spaces, loading areas, and security lighting projects.

This 120-347V area light supports 150W / 120W / 100W / 80W power selection, 3000K / 4000K / 5000K CCT selection, 0-10V dimming, Type 5 light distribution, IP65 wet-location rating, built-in surge protection, mini photocell control, and 5-year warranty coverage.

150W / 120W / 100W / 80W12,800-24,000 Lumens3000K / 4000K / 5000K120-347V0-10V DimmingType 5 DistributionIP65 Wet LocationBronze

Why Choose This 150W Votatec LED Area Light?

Power + CCT Adjustable

Select 150W, 120W, 100W, or 80W and choose 3000K, 4000K, or 5000K on site to match project brightness and colour temperature needs.

Outdoor Commercial Lighting

Designed for parking lots, yards, exterior building areas, pole lighting, loading zones, and general commercial site lighting.

Photocell Ready

The mini photocell helps support dusk-to-dawn style control where automatic outdoor lighting operation is required.

Verified Product Specifications

Brand Votatec
SKU HD-SB05-150WD-G-T3050-SP
Fixture Type CCT + power adjustable LED area light with photocell
Input Voltage AC120-347V
Wattage 150W / 120W / 100W / 80W adjustable
Lumen Output 12,800-24,000 lm listed
Colour Temperature 3000K / 4000K / 5000K adjustable
CRI >80
Beam / Distribution 143° × 145° Type 5 distribution
Dimming 0-10V dimming driver; 6 ft dimming cable included
Power Cable 6 ft power cable included
Rated Life 50,000 hours listed in general specification; product feature page references over 100,000 hours to L70
Operating Frequency 50/60Hz
Power Factor >0.9
Surge Protection Built-in surge protection listed; 6kV surge protection referenced in feature page
Operating Temperature -40°C to 45°C / -40°F to 113°F
Lens Material Clear polycarbonate lens
Housing Aluminum housing
Housing Colour Bronze
Dimensions 12.32" L × 11.30" W × 2.64" H
Weight 5.73 lb
IP Rating IP65
Location Rating Wet location
Photocell Mini photocell / light control function

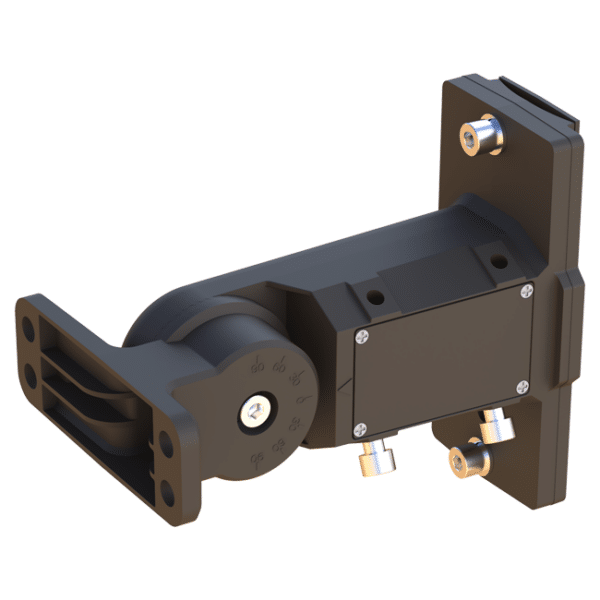

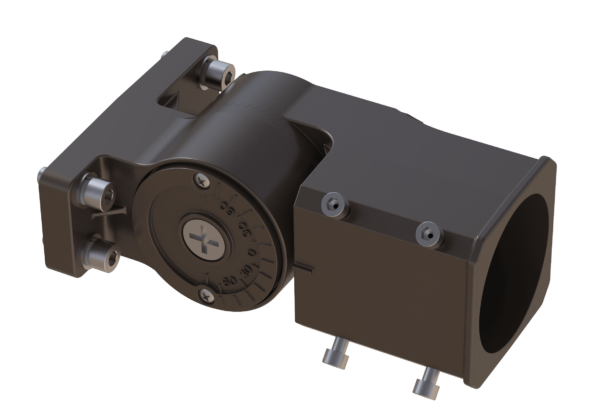

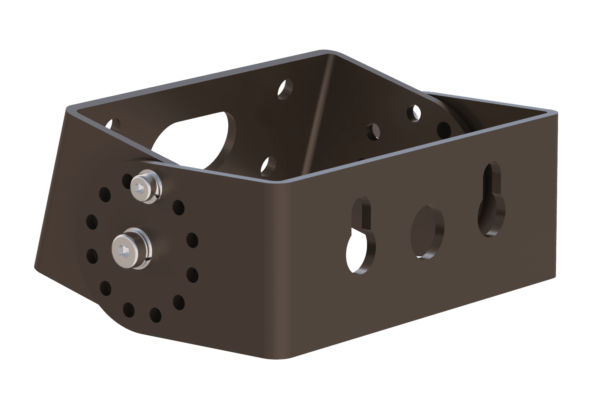

Mounting Compatibility SF, TR, and RS bracket options; confirm selected bracket at order time
Safety Listing cULus-listed
DLC Rating DLC Premium listed in catalogue; vendor PDF product table shows DLC Approved as No, so confirm DLC status for rebate-sensitive projects before quoting
Warranty 5 years
Catalogue Carton Qty 1
Product note: This is the 150W / 120W / 100W / 80W SB05 area light. Keep it separate from the 300W and 500W SB05 area light models. Mounting brackets are listed as compatible options; confirm whether the selected bracket is included or ordered separately before final quotation.

Best Applications

Parking Lot Lighting

Use for small-to-medium parking lots, commercial plazas, outdoor work areas, and general site lighting where Type 5 distribution is useful.

Yard & Building Exterior Lighting

Suitable for yards, loading areas, building perimeters, storage areas, and commercial outdoor spaces requiring 120-347V LED lighting.

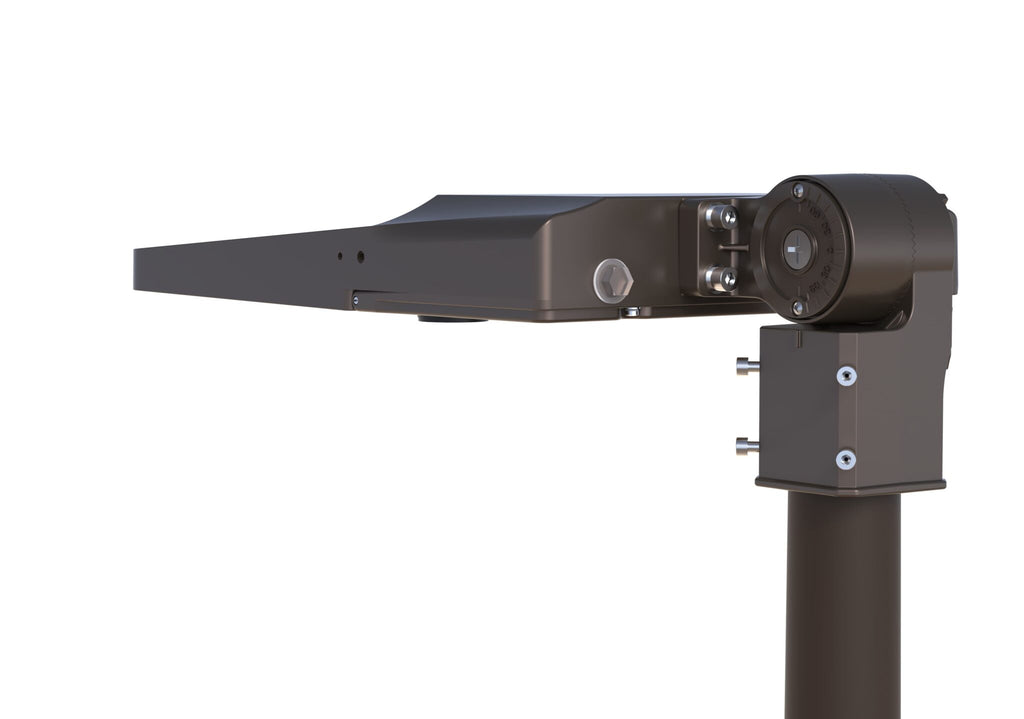

Pole & Wall-Mount Projects

Compatible bracket options allow the fixture to support round pole, square pole, and wall-mount installation scenarios.

Dusk-to-Dawn Projects

The photocell function helps support automatic outdoor lighting operation where dusk-to-dawn control is needed.

Related Votatec Commercial Lighting Products

For higher output area lighting, pair this 150W model with the Votatec 300W and 500W SB05 area light models as they are added to ShopMarsLED. For high bay and vapor tight lighting, browse the Votatec Commercial & Industrial Lighting collection. You can also view the full Votatec Lighting & Electrical Products Canada collection.

Product Resources

Frequently Asked Questions

What is the Votatec HD-SB05-150WD-G-T3050-SP?

It is a 150W CCT + power adjustable LED area light with selectable 150W / 120W / 100W / 80W output, selectable 3000K / 4000K / 5000K colour temperature, 120-347V input, IP65 rating, and mini photocell functionality.

Is this Votatec area light wattage adjustable?

Yes. This model supports 150W, 120W, 100W, and 80W selectable power settings.

Is this LED area light CCT adjustable?

Yes. The fixture supports 3000K, 4000K, and 5000K selectable colour temperature.

Does this area light include a photocell?

Yes. The product is listed with mini photocell / light-control functionality for outdoor lighting control.

Is this fixture wet-location rated?

Yes. The vendor specification lists IP65 and cULus wet-location certification.

What mounting brackets work with this fixture?

The SB05 area light family supports SF, TR, and RS bracket options for different pole and wall mounting scenarios. Confirm the selected bracket at order time.

Need Votatec Area Lights for a Project?

Contact MarsLED for stock checks, contractor quantities, bracket selection, parking lot lighting quantities, and project pricing for commercial outdoor lighting layouts.

Order Desk: 1-833-277-6277
Milton: 905-878-9997
Kitchener: 519-893-6666
