Votatec VO-SP2W8-120-D-5WAY/BK 2 Inch Square Black Baffle Regressed Downlight 8W 5CCT 120V

Save 28%

Price:
$17.98 $25
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Votatec 2 Inch Black Square Baffle Downlight

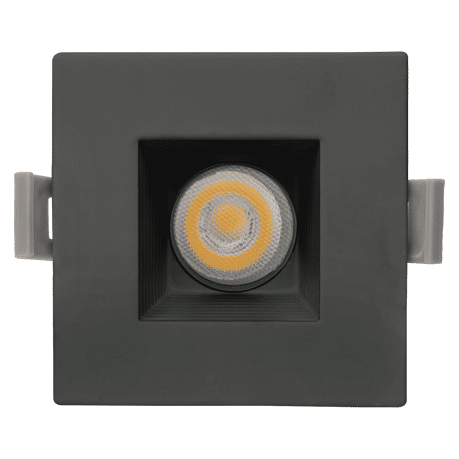

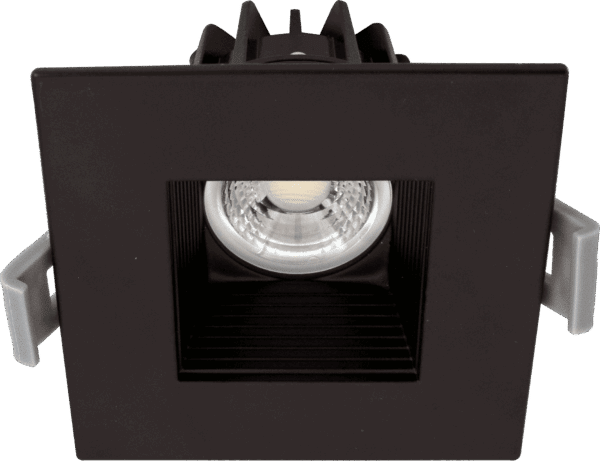

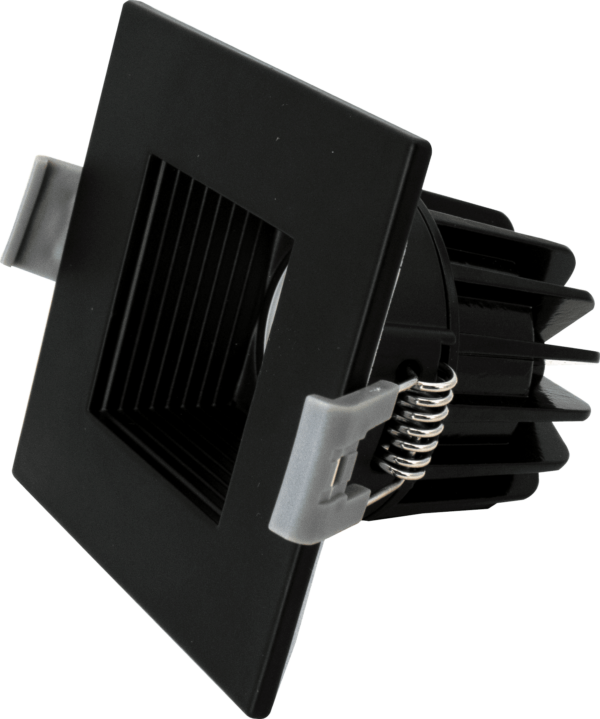

Votatec VO-SP2W8-120-D-5WAY/BK 2 Inch Square Black Baffle Regressed Downlight

The Votatec VO-SP2W8-120-D-5WAY/BK is a compact 2 inch square black baffle regressed LED downlight designed for low-glare architectural recessed lighting where a black square trim is preferred.

This 8W 120V black square baffle downlight delivers up to 650 lumens, offers 2700K to 5000K selectable colour temperature, 90+ CRI, TRIAC dimming, built-in surge protection, wet location rating, airtight and IC rated construction, and a modern black trim for retail, hospitality, restaurant, office, dark ceiling, feature wall, and residential lighting projects across Canada.

2 Inch SquareBlack FinishBaffle Regressed8W650 Lumens5CCT AdjustableCRI 90+Wet Location

Why Choose the Black 2 Inch Square Baffle Downlight?

Modern Black Square Trim

The black square trim works well in dark ceilings, restaurants, retail spaces, hospitality interiors, theatres, display zones, and modern residential designs.

Compact Architectural Aperture

The 2 inch format is ideal where a smaller, cleaner ceiling opening is preferred over larger standard pot lights.

Low-Glare Baffle Regressed Design

The square baffle and recessed light source help reduce glare while creating a more architectural ceiling appearance.

Product Specifications

Brand Votatec
SKU VO-SP2W8-120-D-5WAY/BK
Fixture Type 2 inch square black baffle regressed LED downlight
Trim Shape Square
Finish Black
Wattage 8W
HID Equivalent 50W
Lumen Output 650 lumens listed
Colour Temperature 2700K / 3000K / 3500K / 4000K / 5000K selectable
Voltage 120V
CRI >90
Beam Angle 34°
Dimming TRIAC dimming; dimming range listed as 10%–100%
Operating Position Both horizontal and vertical
Surge Protection Built-in 2.5kV surge protection
Operating Temperature -20°C / -4°F to 40°C / 104°F
Minimum Compartment Size 3 1/8" × 2 3/8"
Diameter 3 1/8" / 8.0cm
Height 2 3/8" / 6.1cm
Cut Hole 2 13/16" / 72mm
Net Weight 0.77 lb
Ratings Wet location, airtight, IC rated, rated for enclosed fixture
Certifications cETLus-listed, Energy Star
Warranty 5 years
Product note: This is the black square version of the 2 inch baffle downlight family. Use the separate white listing for VO-SP2W8-120-D-5WAY/WH.

Best Applications

Retail & Display Lighting

The compact black baffle design works well for approved retail displays, shelving, counters, feature walls, and boutique lighting layouts.

Hospitality & Restaurant Interiors

Suitable for restaurants, lounges, bars, reception areas, corridors, and modern commercial interiors where black trim supports the design.

Dark Ceilings & Theatre Rooms

Black square trim is useful for black ceilings, theatre rooms, finished basements, and darker residential design spaces.

Low-Glare Accent Lighting

The regressed baffle design is useful where a lower-glare appearance is preferred compared with flat slim LED panels.

Related Votatec Pot Lights & Accessories

For the white square version, see the Votatec VO-SP2W8-120-D-5WAY 2 inch square baffle regressed downlight. For the round 2 inch version, see the Votatec VO-RP2W8-120-D-5WAY 2 inch baffle regressed downlight. For smaller architectural lighting, see the Votatec VO-RP1W7-120-D-5WAY 1 inch module downlight.

Product Resources

Frequently Asked Questions

What is the Votatec VO-SP2W8-120-D-5WAY/BK?

It is a 2 inch square black baffle regressed LED downlight with 8W output, selectable 2700K to 5000K colour temperature, and a black square trim.

Is this the black square version?

Yes. VO-SP2W8-120-D-5WAY/BK is the black square version. The white square version uses the /WH suffix.

Is this fixture dimmable?

Yes. The spec sheet lists TRIAC dimming with a 10% to 100% dimming range. Always confirm compatible LED dimmers before installation.

What colour temperatures are selectable?

The fixture can be set to 2700K, 3000K, 3500K, 4000K, or 5000K.

Is this fixture suitable for wet locations?

Yes. The spec sheet lists wet location certification. Installation should still follow local electrical code and manufacturer instructions.

Where does black square trim work best?

Black square trim works well in retail displays, restaurants, hospitality interiors, black ceilings, theatre rooms, feature areas, and modern architectural layouts.
