Votatec VO-SP2W8-120-D-5WAY 2 Inch Square Baffle Regressed Downlight 8W 5CCT 120V

Save 28%

Price:
$17.98 $25
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

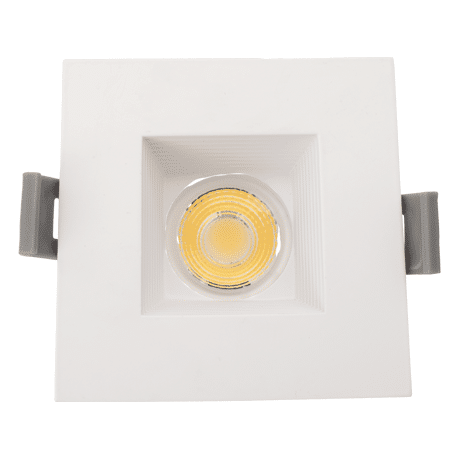

Votatec 2 Inch Square Baffle Downlight

Votatec VO-SP2W8-120-D-5WAY 2 Inch Square Baffle Regressed Downlight

The Votatec VO-SP2W8-120-D-5WAY is a compact 2 inch square baffle regressed LED downlight designed for low-glare architectural recessed lighting in residential, retail, hospitality, office, corridor, display, and light-commercial projects.

This 8W 120V square baffle downlight delivers up to 650 lumens, offers 2700K to 5000K selectable colour temperature, 90+ CRI, TRIAC dimming, built-in surge protection, wet location rating, airtight and IC rated construction, and white or black finish options for modern recessed lighting layouts across Canada.

2 Inch SquareBaffle Regressed8W650 Lumens5CCT AdjustableCRI 90+Wet LocationWhite / Black

Why Choose a 2 Inch Square Baffle Downlight?

Compact Architectural Aperture

The 2 inch format is ideal where a smaller, cleaner ceiling opening is preferred over larger standard pot lights.

Square Baffle Regressed Design

The square baffle and recessed light source help reduce glare while creating a more architectural ceiling appearance.

White or Black Finish

Use white trim for clean ceilings or black trim for darker ceilings, hospitality interiors, retail displays, and modern design projects.

Product Specifications

Brand Votatec
Base Model VO-SP2W8-120-D-5WAY
White SKU VO-SP2W8-120-D-5WAY/WH
Black SKU VO-SP2W8-120-D-5WAY/BK
Fixture Type 2 inch square baffle regressed LED downlight
Wattage 8W
HID Equivalent 50W
Lumen Output 650 lumens listed
Colour Temperature 2700K / 3000K / 3500K / 4000K / 5000K selectable
Voltage 120V
CRI >90
Beam Angle 34°
Dimming TRIAC dimming; dimming range listed as 10%–100%
Operating Position Both horizontal and vertical
Surge Protection Built-in 2.5kV surge protection
Operating Temperature -20°C / -4°F to 40°C / 104°F
Minimum Compartment Size 3 1/8" × 2 3/8"
Diameter 3 1/8" / 8.0cm
Height 2 3/8" / 6.1cm
Cut Hole 2 13/16" / 72mm
Net Weight 0.77 lb
Available Finishes White / Black
Ratings Wet location, airtight, IC rated, rated for enclosed fixture
Certifications cETLus-listed, Energy Star
Warranty 5 years
Product note: This is the square version of the 2 inch baffle downlight family. Use the VO-RP2W8 model for the round version and VO-SP2W8 for the square version.

Best Applications

Architectural Residential Lighting

Use in kitchens, hallways, living spaces, powder rooms, finished basements, stair areas, and renovation projects where a small square aperture is preferred.

Retail & Display Lighting

The compact baffle design works well for approved retail displays, shelving, counters, feature walls, and boutique lighting layouts.

Hospitality & Office Interiors

Suitable for restaurants, lounges, reception areas, corridors, boardrooms, and modern commercial interior lighting.

Low-Glare Accent Lighting

The regressed baffle design is useful where a lower-glare appearance is preferred compared with flat slim LED panels.

Related Votatec Pot Lights & Accessories

For the round 2 inch version, see the Votatec VO-RP2W8-120-D-5WAY 2 inch baffle regressed downlight. For smaller architectural lighting, see the Votatec VO-RP1W7-120-D-5WAY 1 inch module downlight. For 3.5 inch square regressed gimbal lighting, see the Votatec 3.5 inch square white regressed gimbal LED pot light.

Product Resources

Frequently Asked Questions

What is the Votatec VO-SP2W8-120-D-5WAY?

It is a 2 inch square baffle regressed LED downlight with 8W output, selectable 2700K to 5000K colour temperature, and white or black finish options.

Is this the square version of the 2 inch downlight?

Yes. VO-SP2W8 is the square version. VO-RP2W8 is the round version.

Is this fixture dimmable?

Yes. The spec sheet lists TRIAC dimming with a 10% to 100% dimming range. Always confirm compatible LED dimmers before installation.

What colour temperatures are selectable?

The fixture can be set to 2700K, 3000K, 3500K, 4000K, or 5000K.

Is this fixture suitable for wet locations?

Yes. The spec sheet lists wet location certification. Installation should still follow local electrical code and manufacturer instructions.

What finishes are available?

The product family includes white and black finish options.

Need Help with Votatec 2 Inch Square Baffle Downlights?

Contact Mars LED for finish selection, stock checks, contractor quantities, dimmer compatibility, and Votatec recessed lighting support.

Order Desk: 1-833-277-6277
Milton: 905-878-9997
Kitchener: 519-893-6666
