Votatec VO-RP4W16-120-D-5WAY 4 Inch Round Regressed Gimbal LED Pot Light 16W 5CCT 120V

Save 11%

Price:
$39.98 $45
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Votatec 4 Inch Regressed Gimbal

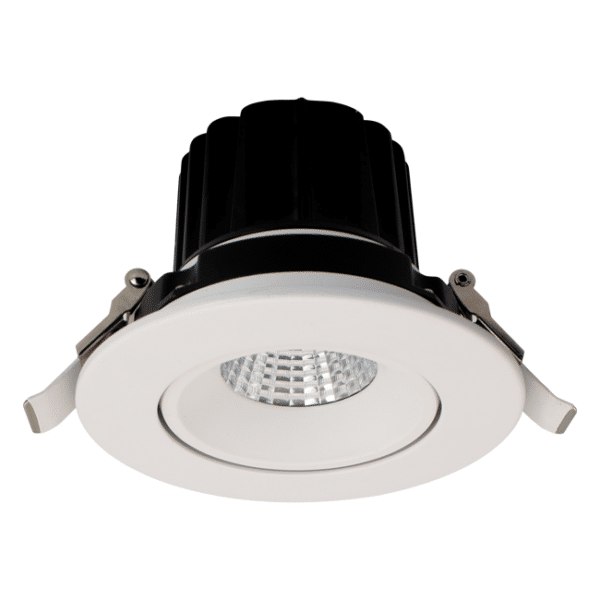

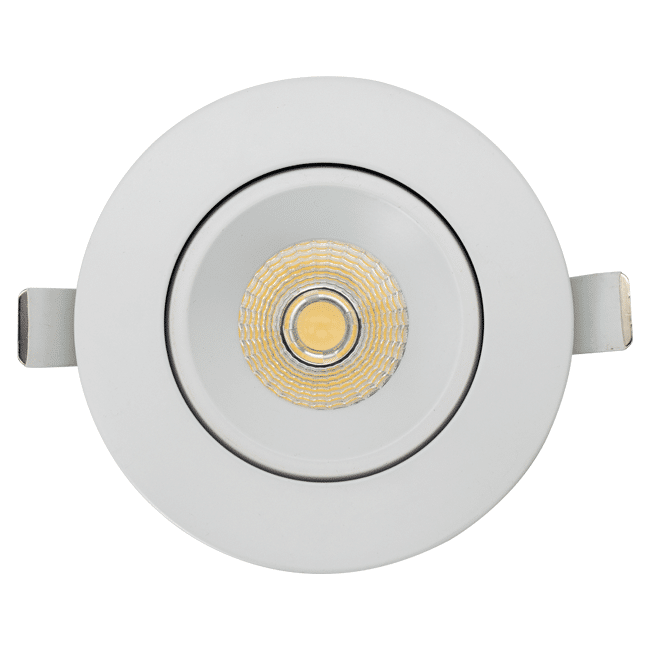

Votatec VO-RP4W16-120-D-5WAY 4 Inch Round Regressed Gimbal LED Pot Light

The Votatec VO-RP4W16-120-D-5WAY is a 4 inch round regressed gimbal LED pot light designed for directional recessed lighting where higher output, low-glare appearance, and adjustable beam control are preferred.

This 16W 120V regressed gimbal delivers 1200 lumens listed, 2700K to 5000K selectable colour temperature, CRI 90+, ELV and TRIAC dimming, 40° beam angle, FT4 wire, 2.5kV built-in surge protection, wet location rating, and white or black finish options for residential, retail, hospitality, office, display, and light-commercial lighting projects across Canada.

4 Inch RoundRegressed Gimbal16W1200 Lumens5CCT SelectableCRI 90+ELV / TRIAC DimmingWet Location

Why Choose a 4 Inch Regressed Gimbal?

Directional Recessed Lighting

The gimbal design supports aimable lighting for feature walls, counters, displays, artwork, sloped ceilings, and accent-lighting layouts.

Regressed Low-Glare Appearance

The deeper regressed fixture style helps create a cleaner ceiling appearance compared with flat slim panels.

Higher Output 16W Design

With 1200 lumens listed, this 4 inch gimbal provides stronger output than many smaller residential recessed fixtures.

Product Specifications

Brand Votatec
Base Model VO-RP4W16-120-D-5WAY
White SKU VO-RP4W16-120-D-5WAY/WH
Black SKU VO-RP4W16-120-D-5WAY/BK
Fixture Type 4 inch round regressed gimbal LED pot light / adjustable recessed downlight
Wattage 16W
HID Equivalent 75W
Lumen Output 1200 lumens listed
Colour Temperature 2700K / 3000K / 3500K / 4000K / 5000K selectable
Voltage 120V
CRI >90
Beam Angle 40°
Dimming ELV & TRIAC dimming
Dimming Range 10%–100%
Wire FT4
Surge Protection Built-in 2.5kV surge protection
Operating Frequency 60Hz
Operating Position Both horizontal and vertical
Operating Temperature -20°C / -4°F to 40°C / 104°F
Rated Life 50,000 hours listed
Minimum Compartment Size 6" × 3 1/2"
Diameter 6" / 14.7cm
Height 3 1/2" / 8.8cm
Net Weight 1.81 lb / 0.82 kg
Available Finishes White / Black
Location Rating Wet location
Rated for Enclosed Fixture Yes
Safety Listing cETLus-listed
Energy Star No
DLC Approved No
Warranty 5 years
Product note: This is a 4 inch round regressed gimbal product. Do not position it as a slim LED panel.

Best Applications

Feature Walls & Accent Lighting

Use for artwork, shelving, fireplace walls, retail displays, counters, and areas where light direction matters.

Residential Renovations

Suitable for kitchens, basements, hallways, living rooms, sloped ceiling areas, and upgraded recessed lighting layouts.

Retail & Hospitality Interiors

A strong option for approved boutiques, restaurants, lounges, reception areas, display zones, and modern commercial interiors.

Low-Glare General Lighting

The regressed gimbal design supports a more architectural ceiling appearance while still offering aimable light output.

Related Votatec Pot Lights & Accessories

For smaller directional recessed lighting, see the Votatec 3.5 inch round regressed gimbal LED pot light. For a compact square baffle option, see the Votatec 2 inch square baffle regressed downlight. For a standard 4 inch slim panel, see the Votatec 4 inch 6CCT slim round LED panel. For rough-in support, see 4 inch galvanized pot light mounting plates.

Product Resources

Frequently Asked Questions

What is the Votatec VO-RP4W16-120-D-5WAY?

It is a 4 inch round regressed gimbal LED pot light with 16W output, selectable 2700K to 5000K colour temperature, and white or black finish options.

Is this product a slim panel?

No. This product should be positioned as a round regressed gimbal LED pot light, not a slim LED panel.

What colour temperatures are selectable?

The fixture can be set to 2700K, 3000K, 3500K, 4000K, or 5000K.

Is this fixture dimmable?

Yes. The spec sheet lists ELV and TRIAC dimming, with a dimming range listed as 10% to 100%. Always confirm compatible LED dimmers before installation.

Is this fixture wet location rated?

Yes. The spec sheet lists the fixture as wet location rated.

What finishes are available?

The product family includes white and black finish options: VO-RP4W16-120-D-5WAY/WH and VO-RP4W16-120-D-5WAY/BK.

Need Help with Votatec 4 Inch Regressed Gimbal Pot Lights?

Contact Mars LED for finish selection, stock checks, contractor quantities, dimmer compatibility, mounting accessories, and Votatec recessed lighting support.

Order Desk: 1-833-277-6277
Milton: 905-878-9997
Kitchener: 519-893-6666
