Description

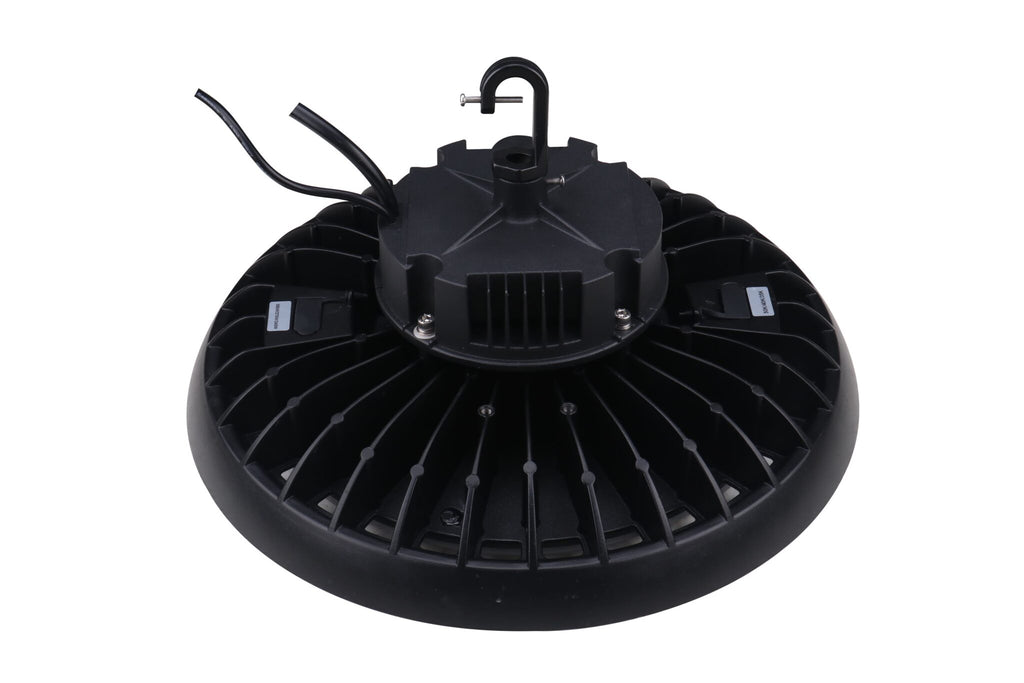

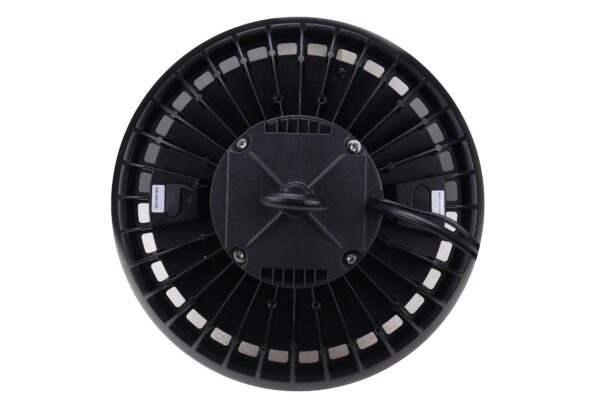

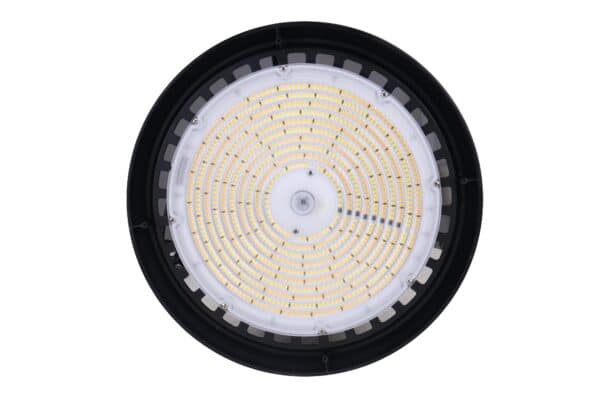

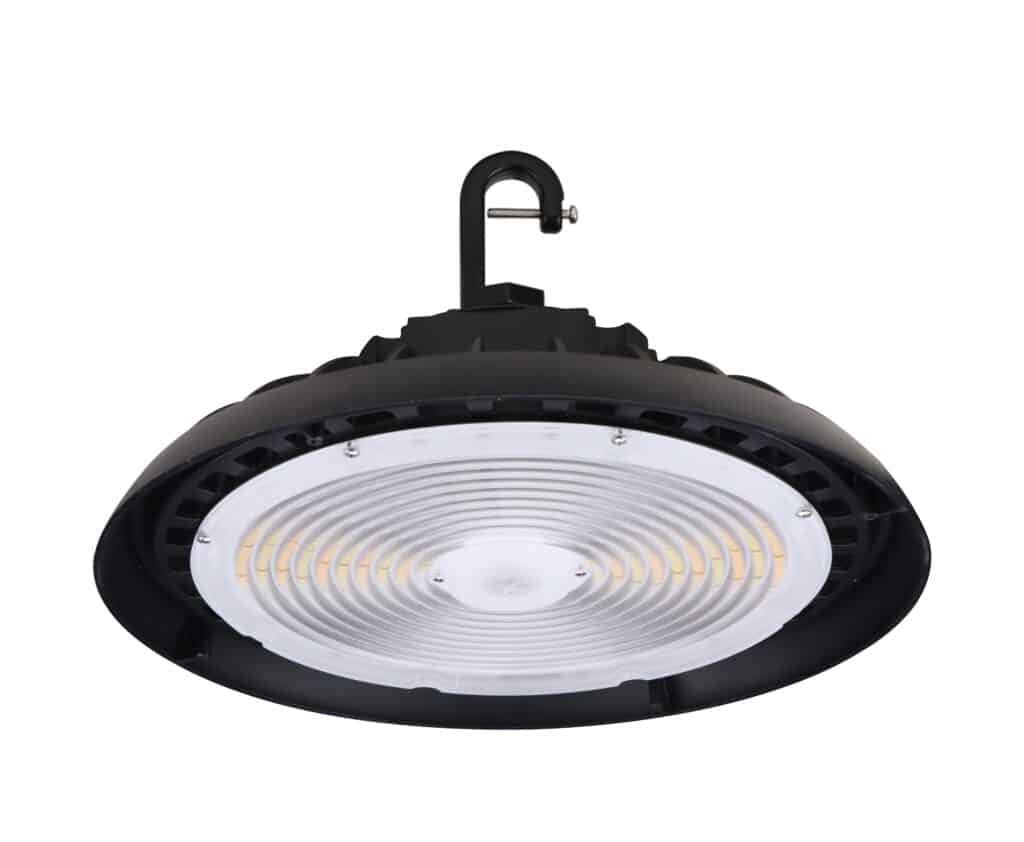

Votatec AST-HB23-300WF1BT2C1-BH35/40/50WD 300W UFO High Bay LED Light
The Votatec AST-HB23-300WF1BT2C1-BH35/40/50WD is a high-output 300W UFO high bay LED light designed for warehouses, industrial spaces, commercial garages, workshops, gyms, storage buildings, and high-ceiling lighting projects.
This 120-347V UFO high bay supports 300W / 270W / 240W power selection, 3500K / 4000K / 5000K CCT selection, 0-10V dimming, IP65 wet location rating, cULus listing, DLC Premium, and optional sensor / remote-control functionality for commercial and industrial lighting upgrades.
Why Choose This Votatec 300W UFO High Bay?
High-Output 300W Performance
With up to 44,400 lumens listed, this fixture is built for larger open areas and higher mounting applications where strong commercial illumination is required.
Power + CCT Adjustable
Select 300W, 270W, or 240W and choose 3500K, 4000K, or 5000K on site to support different ceiling heights, work areas, and brightness requirements.
Sensor-Ready UFO Design
The fixture includes sensor-ready functionality for optional occupancy or motion-based control when paired with the compatible sensor and remote accessories.
Verified Product Specifications
| Brand | Votatec |
|---|---|
| SKU | AST-HB23-300WF1BT2C1-BH35/40/50WD |
| Fixture Type | CCT + power adjustable UFO high bay LED light |
| Input Voltage | AC120-347V |
| Wattage | 300W / 270W / 240W adjustable |
| Lumen Output | 44,400 lm / 40,000 lm / 35,500 lm listed |
| Colour Temperature | 3500K / 4000K / 5000K adjustable |
| CRI | >80 |
| Beam Angle | 90° |
| Dimming | 0-10V dimming |
| Rated Life | 50,000 hours listed |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| Surge Protection | Built-in 6kV surge protection |
| Operating Temperature | -40°C to 50°C / -40°F to 122°F |
| Lens Material | PC / clear polycarbonate lens |
| Housing | Pure aluminum shell / die-cast style black housing |
| Housing Colour | Black |
| Dimensions | 13.78" diameter × 7.64" height |
| Weight | 9.6 lb |
| IP Rating | IP65 |
| Location Rating | Wet location |
| Mounting | Hook mount |
| Sensor Compatibility | Optional UFO DC sensor and remote control support; accessories sold separately |
| Safety Listing | cULus-listed |
| DLC Rating | DLC Premium |
| Warranty | 5 years |
| Catalogue Carton Qty | 1 |
300W / 270W / 240W Power Selection
300W Setting
Use the highest output setting for larger spaces, higher ceilings, and applications requiring maximum light output.
270W Setting
Use the mid setting where strong illumination is needed while reducing power draw compared with the maximum setting.
240W Setting
Use the lower setting for projects where lower output is sufficient or where energy savings are a priority.
Best Applications
Warehouses & High-Ceiling Storage
Use for warehouse aisles, open storage areas, shipping zones, racking areas, and logistics spaces where high-output LED lighting is needed.
Industrial & Manufacturing Areas
Suitable for production areas, maintenance shops, fabrication spaces, utility buildings, service areas, and industrial work environments.
Commercial Garages & Workshops
A strong option for automotive bays, contractor garages, large workshops, commercial repair spaces, and high-ceiling service areas.
Gyms & Open Commercial Interiors
Useful for approved gymnasiums, supermarkets, exhibition areas, recreation spaces, and other open commercial interiors.
Related Votatec High Bay Products
For a lower-output adjustable beam model, see the Votatec AST-HB26 150W Adjustable Beam UFO High Bay. For a higher-output adjustable beam option, see the Votatec AST-HB26 240W Adjustable Beam UFO High Bay. For fixed 300W UFO lighting, see the Votatec AST-HB18 300W UFO High Bay. Browse the full Votatec Commercial & Industrial Lighting collection.
Product Resources
Frequently Asked Questions
What is the Votatec AST-HB23-300WF1BT2C1-BH35/40/50WD?
It is a 300W CCT + power adjustable UFO high bay LED light with selectable 300W / 270W / 240W output and selectable 3500K / 4000K / 5000K colour temperature.
Is this UFO high bay wattage adjustable?
Yes. The fixture supports 300W, 270W, and 240W adjustable power settings.
Is this UFO high bay CCT adjustable?
Yes. The fixture supports 3500K, 4000K, and 5000K selectable colour temperature.
What beam angle does this model use?
This HB23 model uses a 90° beam angle.
Is this fixture wet location rated?
Yes. The vendor specification lists IP65 rating and wet location use.
Does this fixture support sensor control?
Yes. This model supports optional UFO DC sensor and remote-control accessories. Accessories are sold separately.
Need 300W UFO High Bays for a Project?
Contact MarsLED for stock checks, contractor quantities, sensor accessories, mounting options, and commercial project pricing.
