Votatec AST-HB26-150WS1B60/80/100C2-BH35/40/50WD 150W Adjustable Beam UFO High Bay LED Light

Save 25%

Price:
$149.98 $200
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

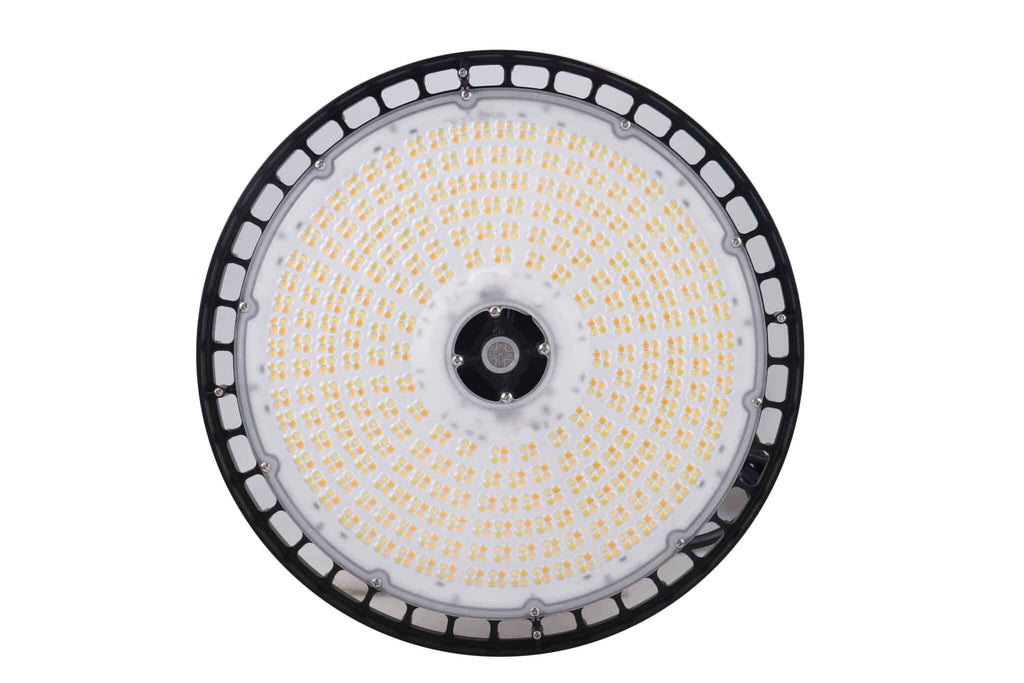

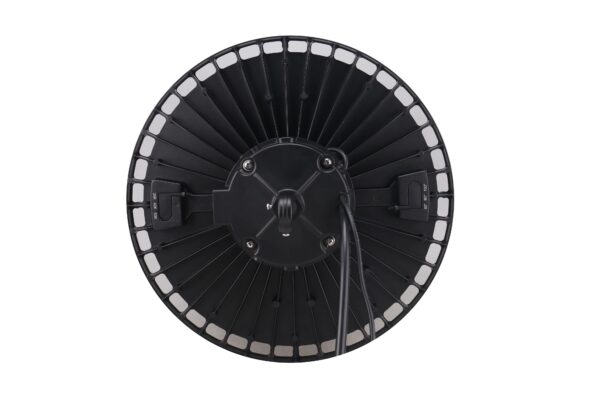

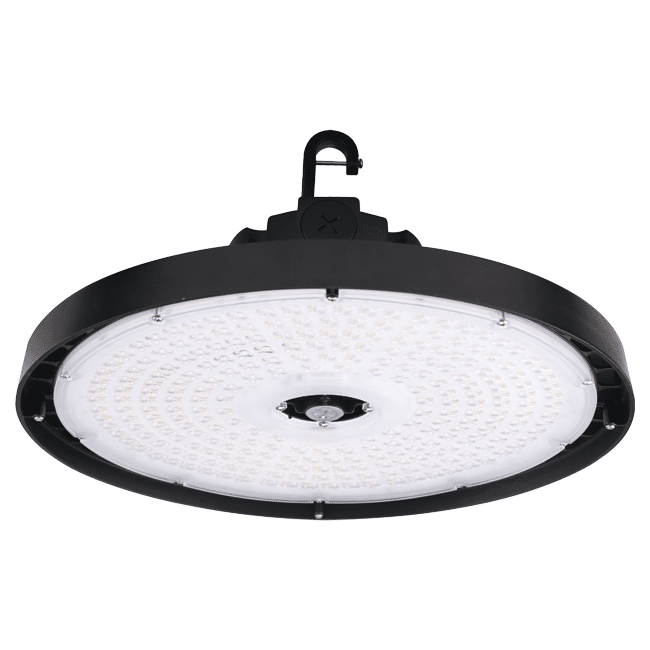

Votatec Adjustable Beam UFO High Bay

Votatec AST-HB26-150WS1B60/80/100C2-BH35/40/50WD 150W Adjustable Beam UFO High Bay LED Light

The Votatec AST-HB26-150WS1B60/80/100C2-BH35/40/50WD is a black CCT, power, and beam-angle adjustable UFO high bay LED light for warehouses, workshops, industrial buildings, open-ceiling commercial spaces, gyms, storage areas, and high-ceiling lighting projects.

This 120-347VAC UFO high bay supports 150W / 100W / 80W power selection, 3500K / 4000K / 5000K CCT selection, and 60° / 80° / 100° beam angle adjustment. The vendor sheet lists IP65, cULus wet location certification, DLC 5.1 Premium, NSF requirements, 6 ft power and dimming cables, Sosen 0-10V dimming driver, integrated sensor receptacle, IK08 impact rating, and 5-year warranty.

150W / 100W / 80W3500K / 4000K / 5000K60° / 80° / 100° Beam120-347VAC0-10V DimmingIP65 WetNSF RequirementsDLC 5.1 Premium

Why Choose This Adjustable Beam UFO High Bay?

Power Adjustable

Select 150W, 100W, or 80W to match ceiling height, target brightness, and energy-use requirements on site.

CCT Adjustable

Choose 3500K, 4000K, or 5000K for warmer commercial interiors, neutral work areas, or brighter industrial-style lighting.

Beam Angle Adjustable

Switch between 60°, 80°, and 100° beam angles for focused, balanced, or wider distribution from the same fixture.

Verified Product Specifications

Brand Votatec
SKU AST-HB26-150WS1B60/80/100C2-BH35/40/50WD
Fixture Type Black CCT, power, and beam-angle adjustable UFO high bay LED light
Input Voltage AC120-347V
Wattage 150W / 100W / 80W adjustable
HID Equivalent 450W listed
General Listed Lumens 21,100 lm / 14,100 lm / 11,300 lm
Maximum Tested Output Up to 25,500 lm at 4000K, 150W, 80° beam setting
Colour Temperature 3500K / 4000K / 5000K adjustable
CRI >80
Beam Angle 60° / 80° / 100° adjustable
Rated Life 50,000 hours
Operating Frequency 50/60Hz
Power Factor >0.9
Surge Protection Built-in 6kV surge protection
Operating Temperature -40°C to 50°C / -40°F to 122°F
Dimming Sosen 0-10V dimming driver
Cables 6 ft power cable and 6 ft dimming cable included
Lens Material PC / clear polycarbonate lens
Housing Pure aluminum / die-cast aluminum housing
Housing Colour Black
Diameter / MOD 11.81" / 30 cm
Height / MOL 7.01" / 17.8 cm
Net Weight 6.61 lb
IK Rating IK08
IP Rating IP65
Location Rating Wet location
Mounting Hook mount
Sensor Compatibility Integrated sensor receptacle for plug-and-play microwave sensor; sensor sold separately
Safety Listing cULus-listed
NSF Meets NSF requirements for splash zone and non-food zone
DLC Rating DLC 5.1 Premium
DLC ID S-J2HHBGQ
Energy Star No
Warranty 5 years
Catalogue Carton Qty 1
Product note: The vendor spec sheet formats the model number slightly differently from the catalogue SKU. Keep the Shopify SKU and URL based on the catalogue SKU unless Votatec confirms a SKU change.

Lumen Output by Setting

Setting 60° Beam 80° Beam 100° Beam
3500K / 80W 10,800 lm 12,240 lm 10,800 lm
3500K / 100W 13,500 lm 15,300 lm 13,500 lm
3500K / 150W 20,250 lm 22,950 lm 20,250 lm
4000K / 80W 12,000 lm 13,600 lm 12,000 lm
4000K / 100W 15,000 lm 17,000 lm 15,000 lm
4000K / 150W 22,500 lm 25,500 lm 22,500 lm
5000K / 80W 11,040 lm 12,800 lm 11,300 lm
5000K / 100W 13,800 lm 16,000 lm 14,100 lm
5000K / 150W 20,700 lm 24,000 lm 21,100 lm

Beam Angle Selection Guidance

60° Beam

Use for taller mounting heights, aisles, or focused work zones where tighter light distribution is needed.

80° Beam

Use as the balanced option for many warehouse, shop, industrial, and commercial layouts.

100° Beam

Use for wider light spread where broader open-area coverage is preferred.

Compatible Dimmers Listed by Vendor

Lutron NTSTV-DV
Leviton DS710-10Z / IP710
Legrand RH4FBL3PW
Dimming Range 10% to 100%

Best Applications

Warehouses & Aisles

The adjustable beam design makes this fixture useful for warehouse aisles, open storage areas, and varied ceiling layouts.

Industrial & Manufacturing Areas

Suitable for production zones, maintenance areas, fabrication shops, and general industrial workspaces.

Gyms & Commercial Interiors

Useful for approved gyms, retail spaces, supermarkets, exhibition areas, and open ceiling commercial interiors.

Sensor-Controlled Lighting Projects

Includes an integrated sensor receptacle for optional plug-and-play microwave sensor control.

Related Votatec High Bay Products

For standard 150W adjustable UFO high bays, see the Votatec AST-HB28 150W Black Adjustable UFO High Bay or the Votatec AST-HB28 150W White Adjustable UFO High Bay. For higher output fixed UFO lighting, see the Votatec AST-HB18 300W UFO High Bay. Browse the full Votatec Commercial & Industrial Lighting collection.

Product Resources

Frequently Asked Questions

What is the Votatec AST-HB26-150WS1B60/80/100C2-BH35/40/50WD?

It is a black adjustable UFO high bay LED light with selectable 150W / 100W / 80W output, selectable 3500K / 4000K / 5000K colour temperature, and adjustable 60° / 80° / 100° beam angle.

Is this UFO high bay wattage adjustable?

Yes. The fixture supports 150W, 100W, and 80W adjustable power settings.

Is this UFO high bay CCT adjustable?

Yes. The fixture supports 3500K, 4000K, and 5000K selectable colour temperature.

Is the beam angle adjustable?

Yes. The fixture supports 60°, 80°, and 100° beam angle adjustment.

Is this fixture wet location rated?

Yes. The vendor sheet lists cULus certification for wet locations and IP65 rating.

Does this fixture support a sensor?

Yes. The vendor sheet lists an integrated sensor receptacle for optional plug-and-play microwave sensor installation. Sensor and remote accessories are sold separately.

Need Adjustable Beam UFO High Bays for a Project?

Contact MarsLED for stock checks, contractor quantities, sensor accessories, mounting options, and commercial project pricing.
