Description

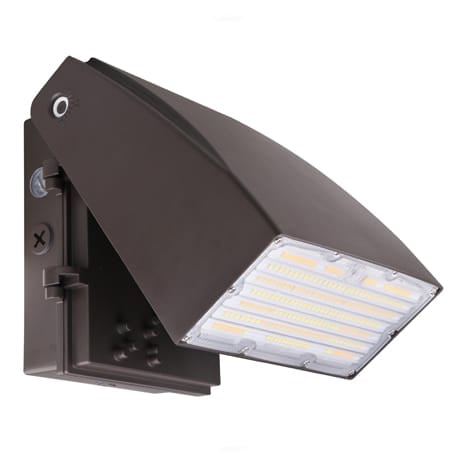

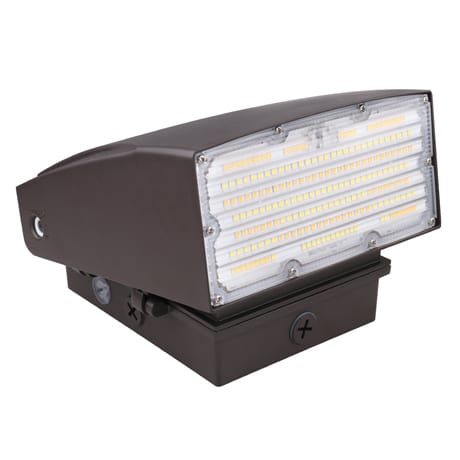

Votatec AST-AWP01B-80WB1JYH8DC1-BRPW30/40/50 80W CCT & Power Adjustable LED Wall Pack
The Votatec AST-AWP01B-80WB1JYH8DC1-BRPW30/40/50 is the high-output model in the adjustable wall pack family, designed for building exteriors, entrances, exterior walkways, service doors, loading-area corners, utility walls, perimeter zones, and wall-mounted security lighting.
This bronze wall pack supports 80W / 70W / 65W power selection, 3000K / 4000K / 5000K CCT selection, 120-347V input, photocell operation, 0-10V dimming, IP65 wet-location use, cULus listing, DLC Premium approval, and a 5-year warranty.
Why Choose This 80W Votatec Adjustable Wall Pack?
High-Output Wall Lighting
The 80W model is the strongest output option in this adjustable wall pack family for larger exterior wall-lighting and security applications.
CCT + Power Adjustable
Select 80W, 70W, or 65W and choose 3000K, 4000K, or 5000K on site to match the project without carrying multiple fixed-output fixtures.
Photocell + Dimming
The photocell function and 0-10V dimming support flexible outdoor control for dusk-to-dawn and project-based wall lighting needs.
Verified Product Specifications
| Brand | Votatec |
|---|---|
| SKU | AST-AWP01B-80WB1JYH8DC1-BRPW30/40/50 |
| Fixture Type | CCT + power adjustable LED wall pack with photocell |
| Input Voltage | AC120-347V |
| Wattage | 80W / 70W / 65W adjustable |
| Lumen Output | 7,800-10,800 lm depending on wattage and CCT setting |
| HID Equivalent | 250W |
| Colour Temperature | 3000K / 4000K / 5000K adjustable |
| CRI | >70 |
| Beam Angle | 90° × 110° |
| Rated Life | 50,000 hours listed; feature sheet references over 100,000 hours to L70 |
| Operating Frequency | 50-60Hz |
| Power Factor | >0.9 |
| Dimming | 0-10V dimming |
| Surge Protection | Built-in surge protection, 4kV |
| Lens Material | PC lens |
| Housing | Die-cast aluminum |
| Housing Colour | Bronze |
| Dimensions | 8.98" L × 7.80" W × 5.51" H |
| Weight | 4.90 lb |
| Operating Temperature | -40°C to 50°C / -40°F to 122°F |
| IP Rating | IP65 |
| Location Rating | Wet location |
| Photocell | On/off photocell function |
| Mounting | Standard wall mounting |
| Safety Listing | cULus-listed |
| DLC Approved | Yes, DLC Premium |
| DLC ID | P33QZAGX |
| Warranty | 5 years |
Lumen Output by Setting
| Setting | 3000K | 4000K | 5000K |
|---|---|---|---|
| 80W | 9,600 lm | 10,800 lm | 10,000 lm |
| 70W | 8,400 lm | 9,450 lm | 8,750 lm |
| 65W | 7,800 lm | 8,775 lm | 8,125 lm |
Best Applications
Building Exterior Lighting
Use for building entrances, side walls, rear doors, and service-door lighting where higher wall-mounted output is needed.
Walkways & Perimeter Lighting
Suitable for exterior walkways, building sides, pathways, and wall-mounted perimeter security-lighting zones.
Loading & Service Areas
A good choice for utility walls, maintenance areas, loading-area corners, storage-area entrances, and service zones.
Dusk-to-Dawn Wall Lighting
The photocell function supports automatic outdoor lighting control where dusk-to-dawn operation is useful.
Related Votatec Wall Packs & Exterior Lighting
For lower output in the same family, see the Votatec AST-AWP01B 30W Adjustable Wall Pack and Votatec AST-AWP01B 50W Adjustable Wall Pack. For flood-lighting applications, see the Votatec AST-FL19 80W Flood Light. Browse the full Votatec Commercial & Industrial Lighting collection.
Product Resources
Frequently Asked Questions
What is the Votatec AST-AWP01B-80WB1JYH8DC1-BRPW30/40/50?
It is an 80W CCT and power adjustable LED wall pack with selectable 80W / 70W / 65W power, selectable 3000K / 4000K / 5000K colour temperature, AC120-347V input, photocell control, IP65 wet-location rating, and DLC Premium approval.
Is this Votatec wall pack wattage adjustable?
Yes. This model supports 80W, 70W, and 65W selectable power settings.
Is this LED wall pack CCT adjustable?
Yes. The fixture supports 3000K, 4000K, and 5000K selectable colour temperature.
Does this wall pack have a photocell?
Yes. The adjustable wall pack specification lists an on/off photocell function.
Can this wall pack be used outdoors?
Yes. The specification sheet lists IP65, wet location, and cULus certification.
What mounting is used?
This adjustable wall pack uses standard wall mounting.
