Description

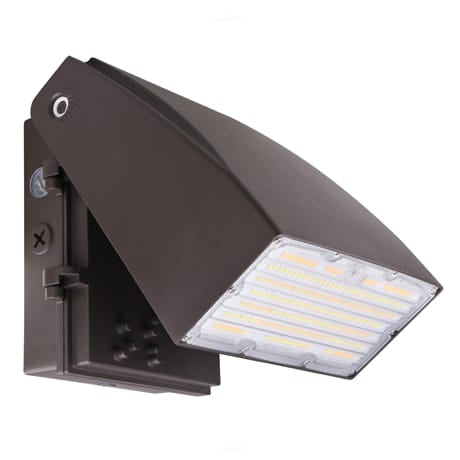

Votatec AST-AWP01B-50WB1JYH8DC1-BRPW30/40/50 50W CCT & Power Adjustable LED Wall Pack
The Votatec AST-AWP01B-50WB1JYH8DC1-BRPW30/40/50 is a commercial LED wall pack for building exteriors, entrances, exterior walkways, service doors, loading-area corners, utility walls, and wall-mounted security lighting where more output is required than the 30W model.
This bronze wall pack supports 50W / 40W / 30W power selection, 3000K / 4000K / 5000K CCT selection, 120-347V input, photocell operation, 0-10V dimming, IP65 wet-location use, cULus listing, DLC Premium approval, and a 5-year warranty.
Why Choose This 50W Votatec Adjustable Wall Pack?
Balanced Exterior Wall Lighting
A practical wall-pack option for entrances, side walls, walkways, service areas, and commercial building perimeter lighting.
CCT + Power Adjustable
Select 50W, 40W, or 30W and choose 3000K, 4000K, or 5000K on site to match the project without carrying multiple fixed-output fixtures.
Photocell + Dimming
The photocell function and 0-10V dimming support flexible outdoor control for dusk-to-dawn and project-based wall lighting needs.
Verified Product Specifications
| Brand | Votatec |
|---|---|
| SKU | AST-AWP01B-50WB1JYH8DC1-BRPW30/40/50 |
| Fixture Type | CCT + power adjustable LED wall pack with photocell |
| Input Voltage | AC120-347V |
| Wattage | 50W / 40W / 30W adjustable |
| Lumen Output | 3,600-6,750 lm depending on wattage and CCT setting |
| HID Equivalent | 150W |
| Colour Temperature | 3000K / 4000K / 5000K adjustable |
| CRI | >70 |
| Beam Angle | 90° × 110° |
| Rated Life | 50,000 hours listed; feature sheet references over 100,000 hours to L70 |
| Operating Frequency | 50-60Hz |
| Power Factor | >0.9 |
| Dimming | 0-10V dimming |
| Surge Protection | Built-in surge protection, 4kV |
| Lens Material | PC lens |
| Housing | Die-cast aluminum |
| Housing Colour | Bronze |
| Dimensions | 8.98" L × 7.80" W × 5.51" H |
| Weight | 4.84 lb |
| Operating Temperature | -40°C to 50°C / -40°F to 122°F |
| IP Rating | IP65 |
| Location Rating | Wet location |
| Photocell | On/off photocell function |
| Mounting | Standard wall mounting |
| Safety Listing | cULus-listed |
| DLC Approved | Yes, DLC Premium |
| DLC ID | PXLKIQ0J |
| Warranty | 5 years |
Lumen Output by Setting
| Setting | 3000K | 4000K | 5000K |
|---|---|---|---|
| 50W | 6,000 lm | 6,750 lm | 6,250 lm |
| 40W | 4,800 lm | 5,400 lm | 5,000 lm |
| 30W | 3,600 lm | 4,050 lm | 3,750 lm |
Best Applications
Entrances & Side Doors
Use for building entrances, side doors, rear doors, and service-door wall lighting where moderate output is needed.
Walkways & Building Sides
Suitable for exterior walkways, building sides, pathways, and wall-mounted perimeter security-lighting zones.
Utility & Service Areas
A good choice for utility walls, maintenance areas, loading-area corners, storage-area entrances, and service zones.
Dusk-to-Dawn Wall Lighting
The photocell function supports automatic outdoor lighting control where dusk-to-dawn operation is useful.
Related Votatec Wall Packs & Exterior Lighting
For lower output, see the Votatec AST-AWP01B 30W Adjustable Wall Pack. For flood-lighting applications, see the Votatec AST-FL19 35W Flood Light and Votatec AST-FL19 80W Flood Light. Browse the full Votatec Commercial & Industrial Lighting collection.
Product Resources
Frequently Asked Questions
What is the Votatec AST-AWP01B-50WB1JYH8DC1-BRPW30/40/50?
It is a 50W CCT and power adjustable LED wall pack with selectable 50W / 40W / 30W power, selectable 3000K / 4000K / 5000K colour temperature, AC120-347V input, photocell control, IP65 wet-location rating, and DLC Premium approval.
Is this Votatec wall pack wattage adjustable?
Yes. This model supports 50W, 40W, and 30W selectable power settings.
Is this LED wall pack CCT adjustable?
Yes. The fixture supports 3000K, 4000K, and 5000K selectable colour temperature.
Does this wall pack have a photocell?
Yes. The adjustable wall pack specification lists an on/off photocell function.
Can this wall pack be used outdoors?
Yes. The specification sheet lists IP65, wet location, and cULus certification.
What mounting is used?
This adjustable wall pack uses standard wall mounting.
