Description
Votatec VO-24W50-347-5Way-B-PX 2×4 Back-Lit LED Panel
The Votatec VO-24W50-347-5Way-B-PX is a commercial 2×4 back-lit LED panel designed for offices, classrooms, clinics, corridors, reception areas, retail spaces, managed properties, institutional facilities, and commercial renovation projects requiring broad, uniform ceiling illumination.
This panel supports selectable 25W / 30W / 40W / 45W / 50W output, selectable 3000K / 3500K / 4000K / 5000K / 6000K colour temperature, AC120-347V input, 0-10V dimming, and recessed, surface-mounted, or suspended installation using compatible accessories.
Why Choose This 2×4 Back-Lit LED Panel?
Five Selectable Wattages
Set the panel to 25W, 30W, 40W, 45W, or 50W to match the required light level, room size, and project energy target.
Five Selectable Colour Temperatures
Choose 3000K, 3500K, 4000K, 5000K, or 6000K for warm, neutral, cool, or daylight-oriented commercial spaces.
Commercial Voltage + Dimming
AC120-347V input and 0-10V dimming support a wide range of commercial, institutional, and property-management applications.
Product Specifications
| Brand | Votatec |
|---|---|
| SKU | VO-24W50-347-5Way-B-PX |
| Fixture Type | 2×4 back-lit commercial LED panel |
| Input Voltage | AC120-347V, 50/60Hz |
| Selectable Wattage | 25W / 30W / 40W / 45W / 50W |
| Maximum Lumen Output | Up to 6250 lumens depending on selected wattage and colour temperature |
| Brightness | 125 lm/W platform |
| Selectable Colour Temperature | 3000K / 3500K / 4000K / 5000K / 6000K |
| CRI | >80 |
| Beam Angle | 120° |
| Dimming | 0-10V dimming, 10%-100% |
| Power Factor | >0.9 |
| Flicker Percentage | <5% |
| Surge Protection | L-N 1kV |
| Rated Life | 50,000 hours |
| Operating Temperature | -20°C to 40°C / -4°F to 104°F |
| IP Rating | IP20 |
| Location Rating | Damp location |
| Frame Material | Aluminum |
| Frame Colour | RAL 9003 white |
| Lens Material | PMMA |
| Back Cover | Galvanized steel |
| Installation Methods | Recessed, surface-mounted, or suspended using compatible accessories |
| Dimensions | 47.6" L × 23.7" W × 1.49" H |
| Metric Dimensions | Approximately 1209 mm × 602 mm × 38 mm |
| Net Weight | 8.11 lb |
| Safety Listing | cUL listed |
| DLC Approved | DLC 5.1 Premium |
| DLC ID | S-H8P9C7 |
| Warranty | 5 years |
Selectable Output by Wattage
| Wattage Setting | Nominal Lumen Output | Typical Use |
|---|---|---|
| 50W | 6250 lm | Higher-output offices, classrooms, retail spaces, corridors, and institutional areas |
| 45W | 5625 lm | General commercial lighting where slightly reduced output is preferred |
| 40W | 5000 lm | Meeting rooms, private offices, support spaces, and managed properties |
| 30W | 3750 lm | Smaller rooms, corridors, and lower-light commercial applications |
| 25W | 3125 lm | Controlled lighting layouts and spaces requiring lower power consumption |
Best Applications
Offices & Boardrooms
Use in open offices, private offices, meeting rooms, boardrooms, reception areas, and administrative workspaces.
Schools & Institutional Spaces
A practical option for classrooms, libraries, corridors, staff areas, training rooms, and other institutional ceiling applications.
Clinics & Professional Interiors
Suitable for clinics, professional offices, treatment-support areas, reception spaces, and customer-facing commercial environments.
Retail & Property Upgrades
Use for tenant improvements, fluorescent-panel replacement, retail interiors, managed properties, and commercial renovation projects.
Installation & Accessory Notes
T-Bar Ceiling Installation
The panel is designed for compatible commercial T-bar ceiling systems. Confirm ceiling-grid dimensions, clearances, and electrical requirements before installation.
Optional Mounting Accessories

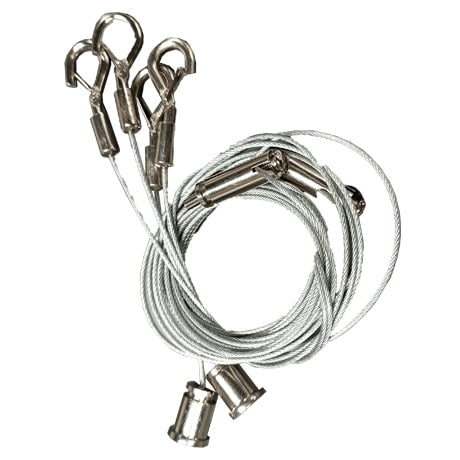

Compatible recessed frames, surface-mount frames, suspension kits, and spring clips are available separately for suitable installation layouts.
Junction Box Access
The fixture includes multiple junction-box knockouts for compatible commercial wiring and conduit-entry requirements.
Project Planning
Confirm fixture quantity, wattage setting, colour temperature, dimming controls, mounting method, and accessory requirements before ordering.
Product Resources
Frequently Asked Questions
What is the Votatec VO-24W50-347-5Way-B-PX?
It is a commercial 2×4 back-lit LED panel with selectable 25W-50W output, selectable 3000K-6000K colour temperature, AC120-347V input, and 0-10V dimming.
Is this LED panel wattage selectable?
Yes. The listed selectable settings are 25W, 30W, 40W, 45W, and 50W.
What colour temperatures are available?
The panel supports 3000K, 3500K, 4000K, 5000K, and 6000K selectable colour temperature.
Can this panel operate on 347V?
Yes. The listed input-voltage range is AC120-347V.
Is this fixture dimmable?
Yes. It supports 0-10V dimming from 10% to 100% when used with compatible controls.
Is this fixture suitable for damp locations?
Yes. The official specification sheet identifies the fixture as damp-location rated with an IP20 rating.
What installation methods are available?
The panel can be recessed, surface-mounted, or suspended using compatible accessories ordered separately.
What are the exact dimensions and weight?
The panel measures 47.6 inches long by 23.7 inches wide by 1.49 inches high and has a listed net weight of 8.11 lb.
Need Votatec Commercial LED Panels for a Project?
Contact MarsLED for stock checks, quantity pricing, and fixture recommendations for offices, schools, clinics, retail interiors, corridors, institutional facilities, and commercial renovation projects.
