Votatec VO-14W40-347-5Way-B-PX 1×4 Back-Lit LED Panel

Save 14%

Price:
$59.98 $70
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Votatec Commercial LED Panel

Votatec VO-14W40-347-5Way-B-PX 1×4 Back-Lit LED Panel

The Votatec VO-14W40-347-5Way-B-PX is a commercial 1×4 back-lit LED panel designed for offices, classrooms, clinics, corridors, retail spaces, managed properties, institutional facilities, and commercial renovation projects requiring broad, uniform ceiling illumination.

This panel supports selectable 20W / 25W / 30W / 35W / 40W output, selectable 3000K / 3500K / 4000K / 5000K / 6000K colour temperature, AC120-347V input, 0-10V dimming, and recessed, surface-mounted, or suspended installation using compatible accessories.

1×4 Back-Lit LED Panel 20W-40W Selectable Up to 4961 Lumens 3000K-6000K Selectable AC120-347V 0-10V Dimming IP20 / Damp Location DLC 5.1 Premium

Why Choose This 1×4 Back-Lit LED Panel?

Five Selectable Wattages

Set the panel to 20W, 25W, 30W, 35W, or 40W to match the required light level, room size, and project energy target.

Five Selectable Colour Temperatures

Choose 3000K, 3500K, 4000K, 5000K, or 6000K for warm, neutral, cool, or daylight-oriented commercial spaces.

Commercial Voltage + Dimming

AC120-347V input and 0-10V dimming support a wide range of commercial, institutional, and property-management applications.

Product Specifications

Brand Votatec
SKU VO-14W40-347-5Way-B-PX
Fixture Type 1×4 back-lit commercial LED panel
Input Voltage AC120-347V, 50/60Hz
Selectable Wattage 20W / 25W / 30W / 35W / 40W
Lumen Output Up to approximately 4961 lumens depending on selected wattage and colour temperature
Brightness 125 lm/W platform
Selectable Colour Temperature 3000K / 3500K / 4000K / 5000K / 6000K
CRI >80
Beam Angle 120°
Dimming 0-10V dimming, 10%-100%
Power Factor >0.9
Flicker Percentage <5%
Surge Protection L-N 1kV
Rated Life 50,000 hours
Operating Temperature -20°C to 40°C / -4°F to 104°F
IP Rating IP20
Location Rating Damp location
Frame Material Aluminum
Frame Colour RAL 9003 white
Lens Material PMMA
Back Cover Galvanized steel
Installation Methods Recessed, surface-mounted, or suspended using compatible accessories
Dimensions 47.76" L × 11.93" W × 1.34" H
Metric Dimensions 1213 mm × 303 mm × 34 mm
Net Weight 3.86 lb
Safety Listing cETLus listed
DLC Approved DLC 5.1 Premium
DLC ID S-H8P9C7
Warranty 5 years
Helpful information: This 1×4 panel is designed for compatible commercial ceiling systems and can also be installed with separately ordered surface-mount, recessed-frame, suspension, or spring-clip accessories where the project requires them.

Selectable Output by Wattage

Wattage Setting Approximate Output Range Typical Use
40W Approximately 4880-4961 lm Higher-output offices, classrooms, retail spaces, corridors, and institutional areas
35W Lower than maximum output, depending on selected CCT General commercial lighting where slightly reduced output is preferred
30W Mid-range selectable output Meeting rooms, private offices, support spaces, and managed properties
25W Reduced selectable output Smaller rooms, corridors, and lower-light commercial applications
20W Lowest selectable output Controlled lighting layouts and spaces requiring lower power consumption

Best Applications

Offices & Boardrooms

Use in open offices, private offices, meeting rooms, boardrooms, reception areas, and administrative workspaces.

Schools & Institutional Spaces

A practical option for classrooms, libraries, corridors, staff areas, training rooms, and other institutional ceiling applications.

Clinics & Professional Interiors

Suitable for clinics, professional offices, treatment-support areas, reception spaces, and customer-facing commercial environments.

Retail & Property Upgrades

Use for tenant improvements, fluorescent-panel replacement, retail interiors, managed properties, and commercial renovation projects.

Installation & Accessory Notes

T-Bar Ceiling Installation

The panel is designed for compatible commercial T-bar ceiling systems. Confirm ceiling-grid dimensions, clearances, and electrical requirements before installation.

Optional Mounting Accessories

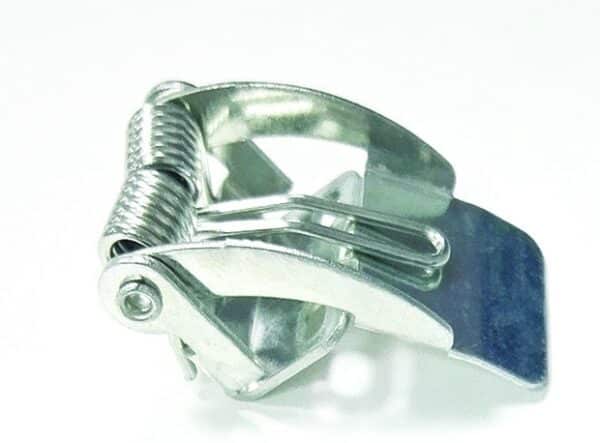

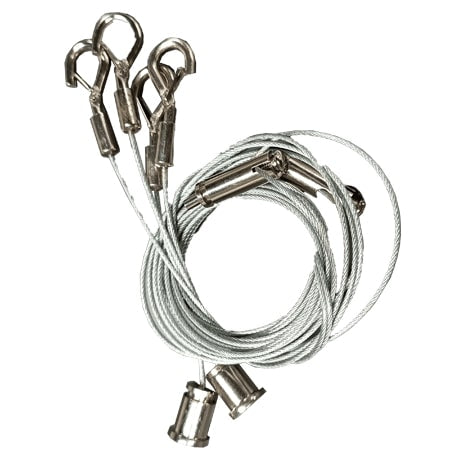

Compatible recessed frames, surface-mount frames, suspension kits, and spring clips are available separately for suitable installation layouts.

Junction Box Access

The fixture includes five junction-box knockouts, including a side knockout designed for 90-degree conduit entry.

Project Planning

Confirm fixture quantity, wattage setting, colour temperature, dimming controls, mounting method, and accessory requirements before ordering.

Project note: Confirm current inventory, required quantities, mounting accessories, 0-10V dimming controls, and delivery timing before scheduling installation.

Product Resources

Frequently Asked Questions

What is the Votatec VO-14W40-347-5Way-B-PX?

It is a commercial 1×4 back-lit LED panel with selectable 20W-40W output, selectable 3000K-6000K colour temperature, AC120-347V input, and 0-10V dimming.

Is this LED panel wattage selectable?

Yes. The selectable settings are 20W, 25W, 30W, 35W, and 40W.

What colour temperatures are available?

The panel supports 3000K, 3500K, 4000K, 5000K, and 6000K selectable colour temperature.

Can this panel operate on 347V?

Yes. The listed input-voltage range is AC120-347V.

Is this fixture dimmable?

Yes. It supports 0-10V dimming from 10% to 100% when used with compatible controls.

Is this fixture suitable for damp locations?

Yes. The official specification sheet identifies the fixture as damp-location rated with an IP20 rating.

What installation methods are available?

The panel can be recessed, surface-mounted, or suspended using compatible accessories ordered separately.

What are the exact dimensions and weight?

The panel measures 47.76 inches long by 11.93 inches wide by 1.34 inches high and has a listed net weight of 3.86 lb.

Need Votatec Commercial LED Panels for a Project?

Contact MarsLED for stock checks, quantity pricing, and fixture recommendations for offices, schools, clinics, retail interiors, corridors, institutional facilities, and commercial renovation projects.

Order Desk: 1-833-277-6277
Milton: 905-878-9997
Kitchener: 519-893-6666
