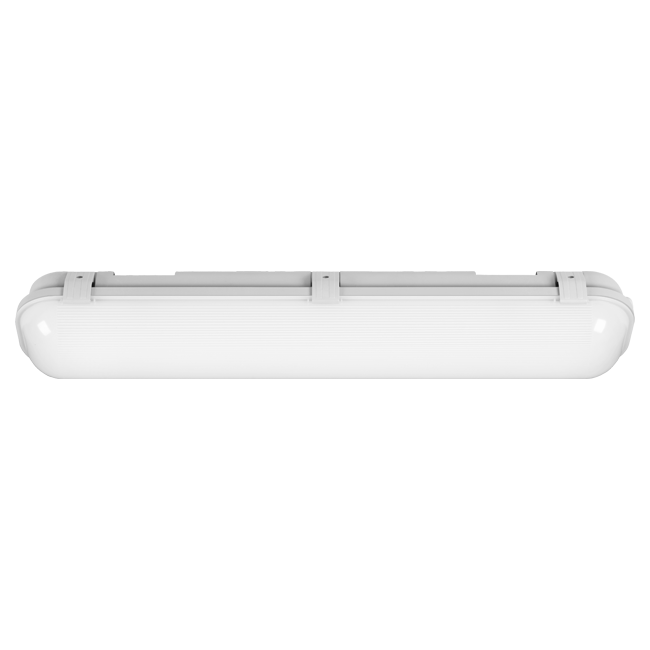

Votatec J5218KLDA-UF24W-5P5C-H 2FT CCT & Power Adjustable Vapor Tight LED Fixture

Save 25%

Price:
$74.98 $100
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Votatec 2FT Vapor Tight

Votatec J5218KLDA-UF24W-5P5C-H 2FT CCT & Power Adjustable Vapor Tight LED Fixture

The Votatec J5218KLDA-UF24W-5P5C-H is a 2FT vapor tight LED fixture for utility rooms, parking garages, service corridors, storage areas, workshops, cold spaces, industrial rooms, covered outdoor areas, and wet-location commercial lighting projects.

This 120-347V vapor tight fixture supports 24W / 20W / 17W / 13W / 10W power selection, 3000K / 3500K / 4000K / 5000K / 6500K CCT selection, 0-10V dimming, IP66 protection, wet-location use, DLC Standard compliance, cULus wet-location certification, and stainless steel mounting clips.

2FT Vapor Tight24W / 20W / 17W / 13W / 10W1500-3400 Lumens5CCT Adjustable120-347V0-10V DimmingIP66DLC Standard

Why Choose This 2FT Votatec Vapor Tight?

5 Power Settings

Select 24W, 20W, 17W, 13W, or 10W on site to match brightness needs, energy targets, mounting height, and fixture spacing.

5CCT Adjustable

Choose 3000K, 3500K, 4000K, 5000K, or 6500K during installation for warm, neutral, bright white, or utility-style lighting.

IP66 Vapor Tight Design

The IP66 vapor tight body is designed for damp, dusty, wet, and utility environments where a standard strip fixture is not the right fit.

Verified Product Specifications

Brand Votatec
SKU J5218KLDA-UF24W-5P5C-H
Fixture Type 2FT CCT + power adjustable vapor tight LED fixture
Length 2FT
Input Voltage AC120-347V
Wattage 24W / 20W / 17W / 13W / 10W adjustable
Lumen Output 3400 lm / 2800 lm / 2400 lm / 1900 lm / 1500 lm listed
Colour Temperature 3000K / 3500K / 4000K / 5000K / 6500K adjustable
CRI >80
Average Beam Angle 110°
Dimming 0-10V dimming driver
Rated Life Over 50,000 hours listed
Operating Frequency 50/60Hz
Power Factor >0.9
IP Rating IP66
Operating Temperature -40°F to 104°F / -40°C to 40°C
Lens Material PC lens
Base / Housing Material PC base
Dimensions 23.62" L × 4.96" W × 3.60" H
Weight 1.23 kg / 2.71 lb
Mounting Ceiling mounted, wall mounted, or surface mounted
Included Hardware Stainless steel clips and accessory bag included
Sensor No built-in sensor on this SKU
Compliance DLC Standard
Certification cULus certified for wet locations
Warranty 5 years
Catalogue Carton Qty 6
Product note: This is the 2FT non-sensor model in the Votatec 5CCT + 5-power vapor tight family. Do not position this SKU as having a built-in sensor.

5 Power Settings for Flexible Layouts

24W / 3400 Lumens

Use the maximum setting where stronger output is required for utility rooms, short service corridors, garages, or commercial support spaces.

17W / 2400 Lumens

Use the mid setting for balanced output in storage rooms, work areas, back rooms, and shorter vapor tight runs.

10W / 1500 Lumens

Use the lowest setting where energy savings, softer light, or lower brightness is preferred.

Best Applications

Utility Rooms & Service Corridors

Use for utility rooms, service corridors, mechanical rooms, stairwells, and smaller commercial support spaces.

Workshops & Commercial Back Rooms

A practical option for small workshops, maintenance areas, electrical rooms, storage rooms, and back-of-house commercial lighting.

Damp, Dusty & Wet Areas

The IP66 construction helps protect the fixture in demanding environments where moisture, dust, or debris may be present.

Industrial & Covered Outdoor Spaces

Suitable for approved industrial rooms, covered outdoor areas, utility buildings, cold spaces, and 120-347V commercial lighting upgrades.

Related Votatec Vapor Tight Products

For longer runs, see the Votatec J5236KLDA-UF48W-5P5C-H 4FT Vapor Tight LED Fixture. For larger layouts, pair this 2FT fixture with matching 4FT and 8FT Votatec vapor tight models as they are added to ShopMarsLED. Browse the full Votatec Commercial & Industrial Lighting collection or view all Votatec Lighting & Electrical Products Canada.

Product Resources

Frequently Asked Questions

What is the Votatec J5218KLDA-UF24W-5P5C-H?

It is a 2FT CCT + power adjustable vapor tight LED fixture with 120-347V input, 5 selectable wattage settings, 5 selectable colour temperatures, IP66 rating, wet-location certification, and 0-10V dimming.

Is this 2FT vapor tight wattage adjustable?

Yes. This model supports 24W, 20W, 17W, 13W, and 10W selectable power settings.

Is this vapor tight CCT adjustable?

Yes. This fixture supports 3000K, 3500K, 4000K, 5000K, and 6500K colour temperature selection.

Does this 2FT model have a built-in sensor?

No. The J5218KLDA-UF24W-5P5C-H model is the non-sensor 2FT version.

Is this fixture wet-location rated?

Yes. The vendor specification lists IP66 protection and cULus certification for wet locations.

What mounting options are supported?

The fixture can be ceiling mounted, wall mounted, or surface mounted using the included stainless steel clips and accessory hardware.

Need 2FT Vapor Tight Fixtures for a Project?

Contact MarsLED for stock checks, contractor quantities, project pricing, and help matching 2FT, 4FT, and 8FT vapor tight fixtures for commercial or industrial layouts.

Order Desk: 1-833-277-6277
Milton: 905-878-9997
Kitchener: 519-893-6666
