Panasonic FV-0511VF1 WhisperFit® DC Bathroom Fan – Pick-A-Flow® 50/80/110 CFM

Save 9%

Price:
$144.98 $159.95
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

WhisperFit® DC Low-Profile Retrofit Fan

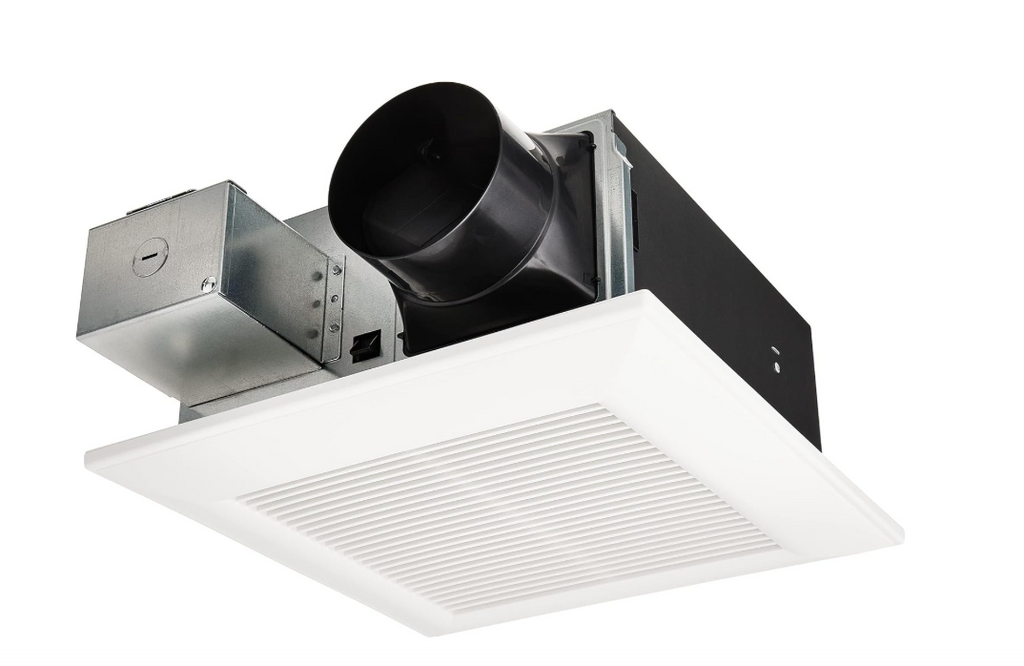

Panasonic FV-0511VF1 WhisperFit® DC Bathroom Fan

The Panasonic FV-0511VF1 WhisperFit® DC is a low-profile ceiling ventilation fan designed for renovation, retrofit and new-construction applications. Its Pick-A-Flow® selector provides 50, 80 or 110 CFM, while the brushless ECM motor uses SmartFlow™ technology to help maintain the selected airflow.

With a 5-5/8-inch housing depth, installation from below the ceiling and a Flex-Z Fast® bracket, the FV-0511VF1 is especially useful when replacing an older bathroom fan or working in a ceiling cavity with limited depth.

50 / 80 / 110 CFM 5-5/8" Housing Depth Retrofit Installation ECM Motor 4" Duct + 3" Reducer ENERGY STAR®

Why Choose the Panasonic FV-0511VF1?

Low-Profile Housing

The 5-5/8-inch housing depth fits 2-inch by 6-inch ceiling joists or larger, making this model suitable for many space-constrained retrofit and renovation projects.

Selectable Airflow

Pick-A-Flow® allows the installer to select 50, 80 or 110 CFM to better match the intended room and ventilation design.

Installation From Below

The fan is designed for convenient installation from below the ceiling, which can be valuable when attic access is limited or unavailable.

Key Product Features

  • Pick-A-Flow® selectable airflow: 50 / 80 / 110 CFM
  • Brushless DC ECM motor with SmartFlow™ technology
  • Low-profile 5-5/8-inch housing depth
  • Fits 2-inch by 6-inch ceiling joists or larger
  • ENERGY STAR® certified
  • Single-hinged Flex-Z Fast® installation bracket
  • Designed for installation from below the ceiling
  • Slide-and-snap junction box and duct collar
  • 4-inch duct adapter with backdraft damper
  • 3-inch duct reducer included

Recommended Applications

Bathroom Fan Replacement

A practical current model to compare when replacing an older bathroom fan, especially where installation from below the ceiling is preferred.

Renovation and Retrofit Projects

Well suited to bathroom upgrades where the ceiling is already finished and access above the ceiling may be limited.

Condos and Multi-Family Housing

The low-profile housing can work well in condos, apartments, townhomes and multi-family projects when the existing ceiling, duct and electrical conditions are compatible.

Bathrooms, Laundry Rooms and Living Spaces

Panasonic identifies this model for bathrooms, laundry rooms and other living spaces requiring quiet, efficient spot ventilation.

Compare FV-0511VF1, FV-0510VS1 and FV-0511VQ1

These Panasonic fans overlap in airflow but are designed around different installation conditions. Verify the ceiling opening, housing depth, ductwork and project requirements before selecting a model.

Model Airflow Primary Strength Typical Selection Reason
FV-0511VF1 50 / 80 / 110 CFM Low-profile retrofit fan Installation from below the ceiling and a 5-5/8-inch housing depth
FV-0510VS1 50 / 80 / 100 CFM Very shallow housing Projects involving 2-inch by 4-inch ceiling construction or especially limited ceiling depth
FV-0511VQ1 50 / 80 / 110 CFM WhisperCeiling standard residential fan Broad residential applications where the deeper housing and 4-inch or 6-inch duct configuration fit

Verified Product Specifications

Brand Panasonic
Model FV-0511VF1
Series WhisperFit® DC
Fan Type Low-profile ceiling-mounted spot ventilation fan
Airflow Settings 50 / 80 / 110 CFM
Motor Type Brushless DC ECM motor with SmartFlow™ technology

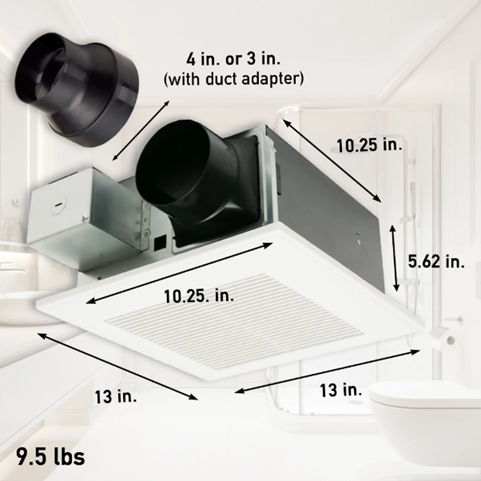

Housing Depth 5-5/8 inches
Construction Fit Fits 2-inch by 6-inch ceiling joists or larger
Installation Method Designed for renovation, retrofit and new construction; can be installed from below the ceiling
Mounting System Single-hinged Flex-Z Fast® bracket
Duct Connection 4-inch duct adapter with backdraft damper; 3-inch reducer included
Grille Compatibility Compatible with applicable Panasonic 13-inch designer grilles
Tub/Shower Application Listed for tub or shower enclosure use when GFCI protected and installed according to Panasonic requirements
Certifications ENERGY STAR® certified; refer to official Panasonic documentation for complete certification and compliance information
Warranty Six-year ECM motor warranty and three-year parts warranty, subject to Panasonic warranty terms and conditions

Replacement and Installation Check

The FV-0511VF1 is retrofit-friendly, but universal drop-in compatibility should not be assumed. Before ordering, compare the existing ceiling opening, available housing depth, joist spacing, duct diameter and route, exterior termination, electrical supply and required airflow with Panasonic documentation.

Use the 3-inch reducer only where the installation and manufacturer instructions permit it. Smaller or restrictive ductwork can affect delivered airflow and noise. Installation should follow Panasonic instructions and applicable Canadian electrical and building requirements.

Panasonic Bathroom Fan Installation Overview

This video provides a general installation overview for Panasonic bathroom ventilation projects. Always use the official FV-0511VF1 installation manual as the controlling product-specific resource.

Official Panasonic Resources

Use the official Panasonic product page and installation video library below to access currently published manufacturer resources.

Panasonic FV-0511VF1 FAQ

What airflow settings does the FV-0511VF1 provide?

The Pick-A-Flow® selector provides 50, 80 or 110 CFM settings. The appropriate setting depends on the room and ventilation design.

Is the FV-0511VF1 designed for bathroom fan replacement?

It is designed for renovation and retrofit applications and can be installed from below the ceiling. However, compare the existing opening, housing depth, ductwork, joist space and wiring before ordering.

How deep is the FV-0511VF1 housing?

The published housing depth is 5-5/8 inches, and Panasonic identifies it for 2-inch by 6-inch ceiling joists or larger.

Can the FV-0511VF1 use 3-inch ducting?

The fan uses a standard 4-inch adapter and includes a 3-inch reducer. Follow Panasonic’s installation instructions and account for the effect that smaller or restrictive ductwork can have on airflow and noise.

How does FV-0511VF1 differ from FV-0510VS1?

The FV-0511VF1 provides 50, 80 or 110 CFM and uses a 5-5/8-inch low-profile housing designed for retrofit installation from below. The FV-0510VS1 provides 50, 80 or 100 CFM and is intended for especially shallow applications involving 2-inch by 4-inch construction.

How does FV-0511VF1 differ from FV-0511VQ1?

Both provide 50, 80 or 110 CFM. The FV-0511VF1 emphasizes a lower-profile retrofit design, while the FV-0511VQ1 is a WhisperCeiling model suited to broader ceiling applications where its housing and duct configuration fit.

Does MarsLED ship Panasonic bathroom fans across Canada?

MarsLED supports Panasonic ventilation orders and project inquiries across Canada. Availability, shipping cost and delivery timing depend on inventory, destination and order size.

Need Help With the Panasonic FV-0511VF1?

Contact MarsLED for current inventory, contractor quantities, replacement guidance, product selection and Canadian order support.

Order Desk: 1-833-277-6277
Kitchener: 519-893-6666
Milton Delivery Support: 905-878-9997
