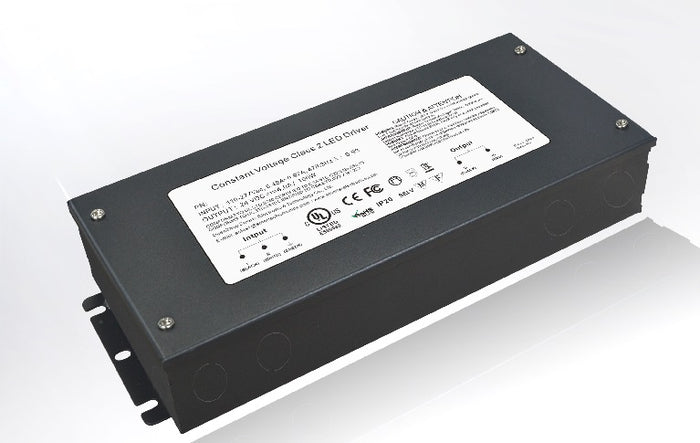

60W 12VDC Non-Dimmable Class P Type HL 110-277VAC constant voltage LED driver UL/cUL.

filler

Price:
$60.95

Description

60W 12VDC Non-Dimmable Class P Type HL 110-277VAC constant voltage LED driver, MRS-12V60W-NVWJ

Features:

  • Output constant voltage
  • Input voltage range 100-277VAC
  • Built-in PFC function / PF>0.99 / Efficiency >88%
  • Protections:short circuit/over voltage/over heat
  • Suitable for dry & damp location
  • Cooling by free air convection
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lightings.
  • UL/cUL, FCC listed, Class P, Type HL
  • 7 years warranty

Specification:

Model MRS-12V60W-NVWJ (1.0 version)
Output DC Voltage 12V
Voltage Accuracy ±0.5V
Voltage Regulation ±0.5%
Rated current 5.00A
Load Regulation ±1%
Rated power  60W
Input Voltage Range 100-277V AC
Frequency Range 47~63HZ
Power Factor ( Typ.) 0.98@120VAC  0.94@277VAC
  Full Load Efficiency(Typ.) >83%@110V, >85%@277VAC
AC Current(Typ.) 0.93A/120VAC
Inrush Current (Typ.) 14A,50% ,780us @120v ;50A,50% 176us@230V ;15A 50% 660us@277V
Leakage current <0.50mA
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading ≤120% Hiccup mode,recovers automatically after fault condition is removed
Over voltage ≦140VAC(90~135V) , ≦285VAC(170~277V)
Environment Working TEMP. -40~+60℃
Working Humidity  20~90%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z  axes
Safety&EMC Safety standards UL8750+UL1310
Withstand voltage I/P-O/P:2.2KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
EMC IMMUNITY  Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level (surge4KV)
Others Weight About 1.1Kg
Size 1.0 version: 188*92*26mm /2.0 version: 188*94.5*40mm(L*W*H)
packing 10PCS/CTN
 (L*W*H)
Notes 1.    All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2.    Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
 pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3.  Tolerance:includes set us tolerance,line regulation and load regulation .


※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

※Outputpower cord: 16AWG, Red to LED Positive side (+) , Black to LED Negative side (-).

■Derating Curve

※Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the running life.

■Connecting Diagram

■ Simple Connection Diagram

■ Instruction:

※This driver should be installed by qualified and professional person;

※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

※Ensure that wiring is correct before test in order to avoid light and power supply damage;
