Shallow enclosure
The 1¼-inch depth helps the power supply fit into installations where available space is limited.

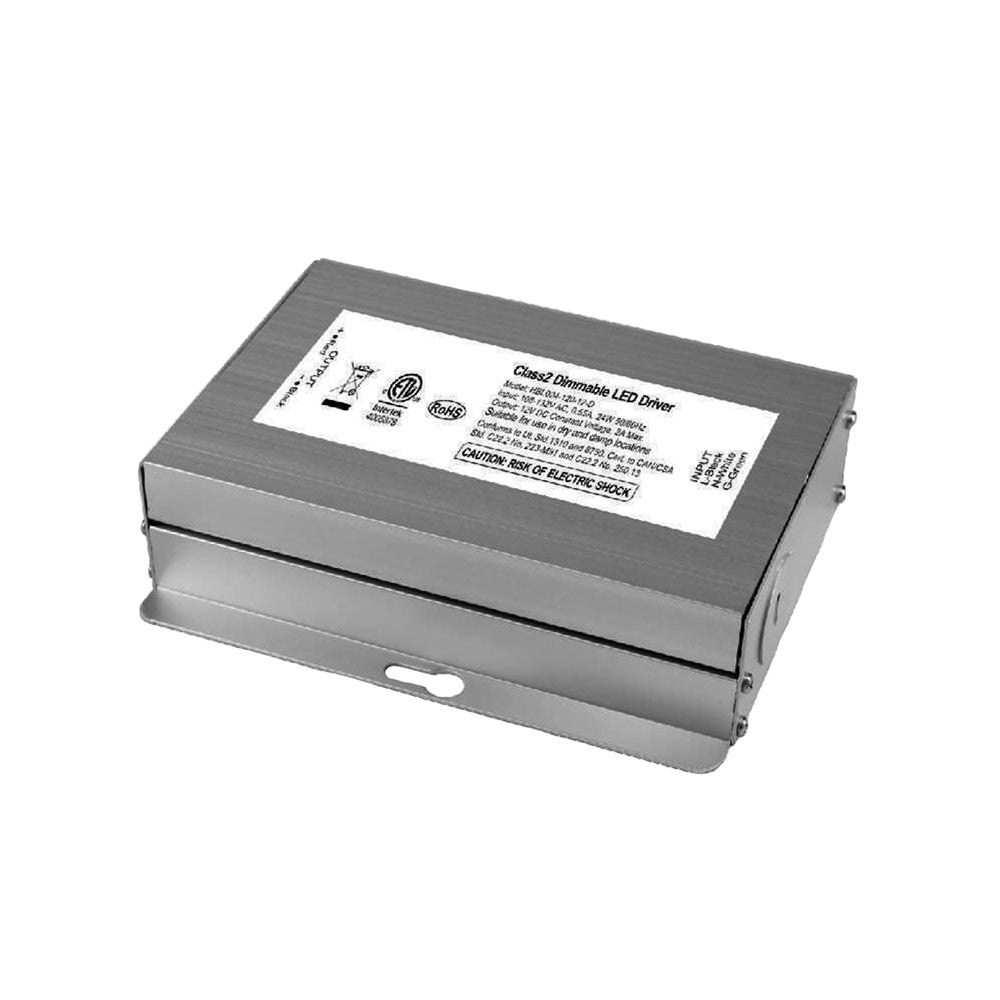

Model HBL024-120-12-D
Hardwired Dimmable Puck-Light Power Supply
Power a compatible Lotus LED puck-lighting system with this compact 24-watt Class 2 power supply. The HBL024-120-12-D accepts a hardwired 120V AC input, delivers 12V DC output at 2 amps, supports TRIAC dimming from 100% down to 10%, and connects to the included six-port hub.
Built for Lotus puck-light systems
This low-profile driver is designed for compatible Lotus LED puck lights in cabinet, under-cabinet, millwork, retail and hospitality lighting installations.
The 1¼-inch depth helps the power supply fit into installations where available space is limited.
Designed for a permanent 120V AC hardwired connection as part of a properly planned lighting system.
Supports compatible TRIAC dimming from full output down to 10% for adjustable puck-light illumination.
The output uses a plug-in connector to the included six-port hub for compatible Lotus puck lights.
Verified manufacturer data
The specifications below are based on the official Lotus LED Lights HBL024-120-12-D manufacturer specification sheet.
| Manufacturer | Lotus LED Lights |
|---|---|
| Model | HBL024-120-12-D |
| Product type | 12V Class 2 LED power supply / driver |
| Application | Compatible Lotus LED puck lights |
| Rated power | 24 watts |
| Input voltage | 120V AC |
| Input connection | Hardwired |
| Output voltage | 12V DC |
| Output current | 2 amps |
| Output connection | Plug-in connector to included six-port hub |
| Dimming | TRIAC, 100% to 10% |
| Approved location | Damp locations |
| Power factor | Greater than 0.5 |
| Ambient temperature | -40°C to +40°C (-40°F to +104°F) |
| Dimensions | 5 × 4 × 1¼ inches |
| Certification | cETLus, file #4005878 |
| Warranty | 3 years |
Included with this model
One Lotus LED HBL024-120-12-D 24W power supply
One compatible six-port puck-light hub
Compact installation profile
Measuring 5 inches by 4 inches and only 1¼ inches deep, the HBL024-120-12-D is suited to compatible cabinet and millwork lighting layouts where enclosure depth is limited.
Installation and electrical connections should follow the manufacturer instructions and applicable electrical requirements.
Suggested applications
Use the HBL024-120-12-D as the power supply for a compatible 12V Lotus puck-light system.
Power compatible Lotus puck lights used to illuminate kitchen counters and work surfaces.
Support puck lighting inside built-ins, glass cabinets, wardrobes and display cases.
Integrate low-voltage puck lighting into shelving, cabinetry and architectural woodwork.
Provide power for compatible Lotus puck lights in shelves and merchandising fixtures.
Suitable for selected cabinet and accent-lighting systems in hospitality environments.
Use in compatible puck-lighting layouts for bars, entertainment units and decorative cabinetry.
Build a complete system
Pair this driver with compatible 12V Lotus puck lights and the connection accessories required for the planned fixture layout.
Choose compatible 12V puck lights while keeping the total connected wattage within the driver's rating.
The included hub provides connection points for compatible Lotus puck-light fixtures.
Compatible extension accessories may be used where required by the lighting layout and manufacturer guidance.
Product resources
Review manufacturer electrical data, dimensions, connections and compliance information.
Explore compatible low-voltage puck-lighting options available from MarsLED.
Browse cabinet and under-cabinet lighting products for residential and commercial projects.
Frequently asked questions
It is a 24-watt, 12V Class 2 power supply designed for compatible Lotus LED puck lights.
Yes. The manufacturer specifies TRIAC dimming from 100% down to 10% when used with a compatible control.
Yes. The input connection is hardwired for 120V AC power.
The HBL024-120-12-D provides 12V DC output at 2 amps, with a maximum rated power of 24 watts.
Yes. The manufacturer specifies a plug-in output connection to the included six-port hub.
This power supply is specified for Lotus LED puck lights. Confirm fixture compatibility and total connected wattage before installation.
Yes. The official specification sheet lists the HBL024-120-12-D for damp-location use.
The driver measures 5 inches by 4 inches by 1¼ inches deep.
Canada-wide availability
Order this Lotus 24W hardwired 12V LED driver for compatible puck-lighting projects. MarsLED ships across Canada, serving residential, contractor, cabinet, millwork, retail and hospitality customers. Local project support is available through our Kitchener location, with delivery service available in Milton and surrounding areas.
Product specifications are based on current manufacturer documentation and may be updated by the manufacturer. Confirm fixture compatibility, connected load, dimmer compatibility and installation requirements before ordering or installation.
