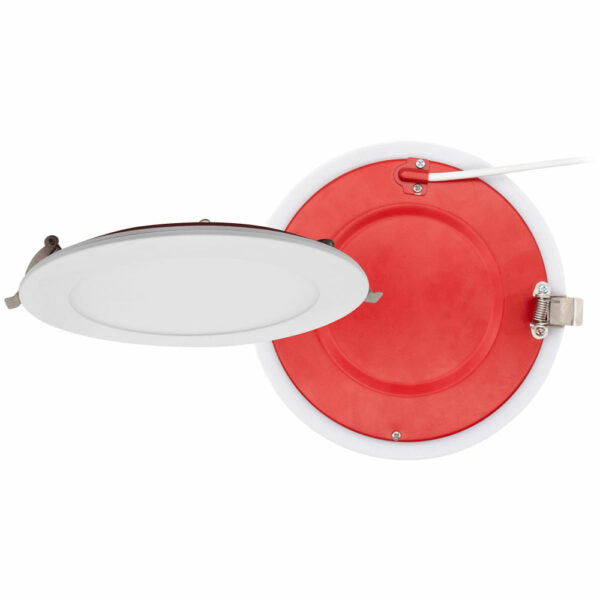

LotusLED 6″ Round Fire Rated Ultra Slim Recessed LED 5CCT 15W

filler

Price:
$51.50

Description

Lotus LED 6″ Round Fire Rated Ultra Slim Recessed LED 5CCT 15W

Product Features

  • 2 Hour Fire Rated without additional housing or hardware
  • Type IC & Air-Tight Rated – No Housing Required
  • Heat Resistant Steel Casing provides up to 2 Hour Fire Protection
  • Heavy Duty Steel Spring Clips for easy installation
  • 1 1/4″ Spring Height for installations on up to 2 x 5/8″ drywall
  • Plenum Rated Cable for Commercial Installations
  • 1/2″ Thin – Install in Limited Ceiling Spaces
  • Driver Inside Connection Box – No Junction Box Needed
  • 5 CCT User Selectable Light Colors
  • CRI 90+ for True Color Rendering



Specifications:

  • Applications Multi-Family Residential, Basements & Commercial
  • Energy Used 15 W
  • Color Temperature (K) 2700 – 3000 – 3500 – 4000 – 5000
  • Light Output (lm) 960 – 1030 – 1080 – 1100 – 1050
  • Halogen Equivalent 90 W
  • Beam Angle 110°
  • CRI 90+
  • Driver Input 120V AC 50/60 Hz
  • Dimming TRIAC Dimmers 10% – 100%
  • Junction Box Volume 9.69 cubic inches / Max 5 No 12 AWG or 8 No 14 AWG
  • Approved Location Insulated Ceiling & Damp Locations
  • Cable FT6 / CMP Plenum Rated
  • Air Tight & Type IC Yes
  • Ambient Temperature -4°F (-20°C) to +104°F (+40°C)
  • Projected Life 70% Light Output at 50,000 Hours
  • Certification cETLus
  • Fire Rating UL 263-2011(R2022), STM E119-20 & CAN/ULC-S101-14
  • Warranty 3 Year

DIMENSIONS:

  • ID ID 6 1/8″, OD 6 7/8″, Cut Out 6 1/4″
  • Fixture Thickness: 1/2″
  • 120V Triac Dimmable Driver Included
  • Spec Sheet: FR-LED-6-S15W-5CCT-PL
