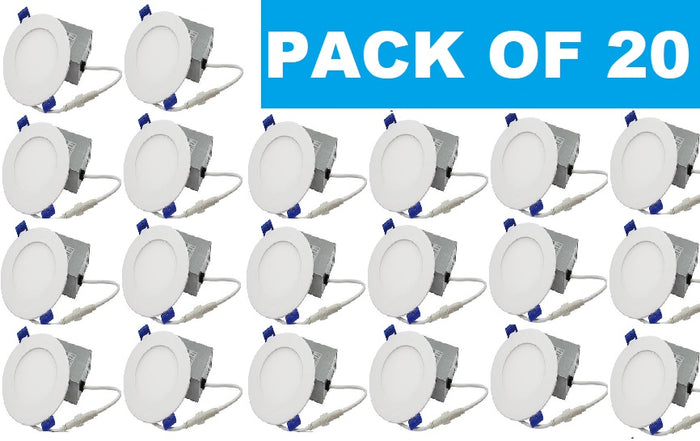

4" LED Slim Panel Potlight Recessed Downlight IC Rated - 9W 550LM, 6000K, White, Pack of 20 Lights
Round 4" with Integral LEDs. Isolated external driver factory installed inside Galvanized Steel junction box. One Driver for every fixture included.
This is our most cost effective - Budget grade LED Ultra Slim Potlight. Its backed by 2-years Standard manufacturer's warranty
LED Fixture and driver are Type IC rated approved for direct contact with Insulation. Potlight housing is NOT required even for insulated ceilings.
- Certification: cETLus, Conforms to UL STD. 1598. Certified to CSA STD. C22.2 NO.250.0
- Driver Input Voltage: 120V AC(dimmable)m, Power Factor >0.9, CRI>80
- Operating Temperature: -4F° + 104F° /-20°c to +40°c
- Watts: 9W
- Light Output: 550LM ± 10%
- The construction of this item is built to standards. 25mm Thickness, its easy to install and can be used in house, hotel, supermarket, restaurant etc. It totally replaces traditional downlight. Suitable for damp locations and soffit Installations, not suitable for steam shower and saunas. Not waterproof, DO NOT expose to rain.
- The outer panel is using PMMA material.the transmittance is higher than acrylic panel.
- This products is using smd2835 chips,lighting is soft and equal,higher CRI.
- lt seems like only seeing the light without the lamp
- Extremely long working life .
Connecting the Driver:
- Open the cover of the junction box.
- Push and remove one of the half-inch knockouts on the side plate.
- Install standard L16 cable connector.Use double connector for daisy chaining multiple drivers.
- Insert line voltage feed into the cable connector and splice same color wires, join using wire nuts.
- Close the cover.Connect the driver to the light fixture. The arrows on the male and female parts of the connector between the driver and the fixture should match.
- Tighten the connector by hand.
We recommend LED/CFL dimmers that have a low range adjustment dial. After this light fixtures is connected to the dimmer adjust the dial to the lowest position before the lights start to flicker or shut down.This setting depends on the local voltage and number of fixtures per dimmer. For a typical LED dimmer rated for 150W LED load, the maximum number of fixtures per dimmer is 12-14.
Trim Color Changing Option:
What something different? Want to add a little spice to your ceiling decor? Buy a cost effective upgrade - "A Color Change Trim". This simple upgrade lets you change your standard white trim potlight to either black or satin nickle finish.
Along with your potlights, order the following part numbers for matching color changing trim:
1) Black: SLM-CHT-BK4
2) Satin Nickle: SLM-CHT-SN4
