Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, HBLAC2 Aux Contact

Save 2%
filler

Price:
$524.95 $535
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2024. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

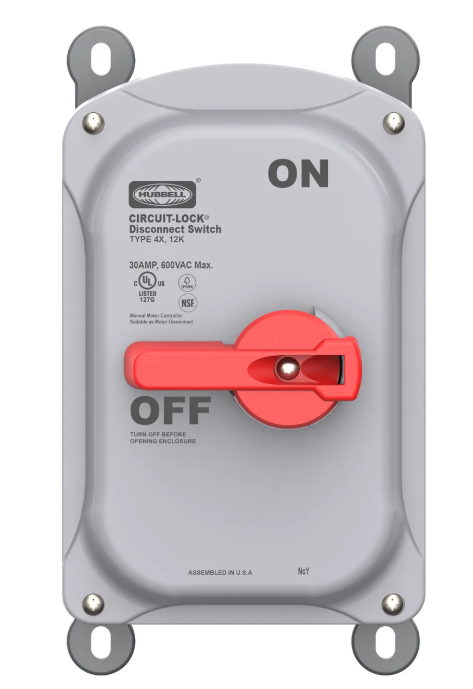

Hubbell HBLAC2 Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, HBLAC2 Aux Contact

NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbell’s Circuit-Lock® Unfused Disconnect Switches are UL listed as a manual motor controller and also “suitable as a motor disconnect” and meet these code requirements.

  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
  • IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
  • Product rating are permanently laser-marked and will not wash off
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
  • Factory installed HBLAC2 auxiliary contact is "Break Before Main Break", 1 set of N/O contacts for VFD applications

    Product details
    General

    Application: Heavy Duty Industrial and/or Washdown

    Catalog Number: HBLDS30VFD

    Color: Gray

    Enclosure Type: IP69k and UL Type 4X, 12

    Environmental Conditions: Indoor and Outdoor

    Horsepower - Maximum: 15

    Ingress Protection: IP69k, NEMA Type 4X, 12

    Material - Mounting Hardware: Stainless Steel Screw Mounting

    Mounting Method: External fully adjustable feet

    Operating Cycles: 10,000 Cycles Minimum

    Operating Temperature: Without Impact Maximum continuous 75°C and minimum -40 °C






    Style: Heavy Duty

    Type: Disconnect Switches

    UPC: 783585763064

    Dimensions

    Height

    4.12 in

    Hub Size

    3/4"

    Weight

    2.8 lb

    Electrical Ratings

    Current / Amperage Rating

    30 A

    Dielectric Strength

    Withstands 3000V AC minimum

    Conductor Related

    Wire Size

    #14 AWG to #8AWG

    Certifications And Compliance

    Industry Standard(s)

    cULus Listed
