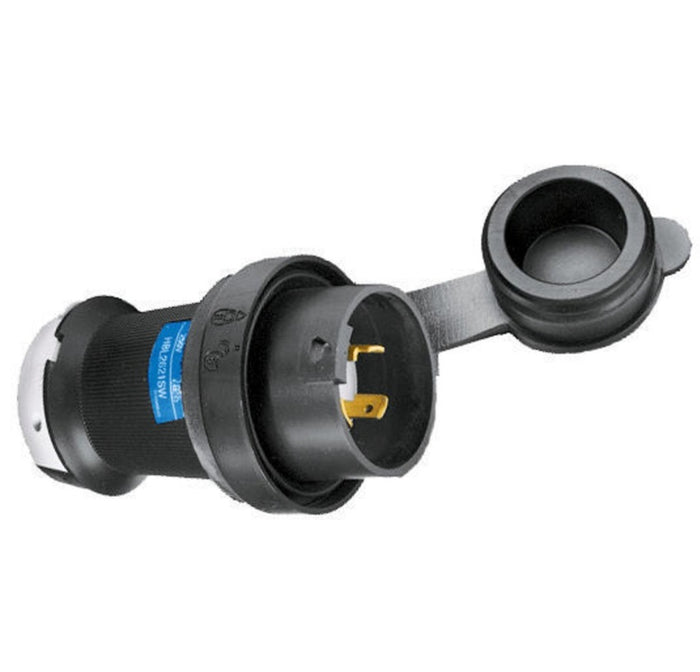

HUBBELL HBL2321SW Twist-Lock®, Watertight Safety-Shroud® Locking Male Plug 20 A, 250 VAC, Standard, Shrouded

Save 33%
filler

Price:
$110 $165
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2024. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

HUBBELL HBL2321SW Twist-Lock®, Watertight Safety-Shroud® Locking Male Plug 20 A, 250 VAC, Standard, Shrouded

Description:
Hubbell HBL2321SW Locking Watertight Safety-Shroud Plug, 20A 250V, L6-20P

Technical Description:
Polarized Type; Valox Body/Clamp, Thermoplastic Polyester Interior Material; Black/White Color; L6-20P Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 250 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S)

UPC: 78358523110

Part Number: HBL2321SW

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand Twist-Lock®, Watertight Safety-Shroud®
Item Name Locking Male Plug Type Standard, Shrouded
Number of Wires 3 Number of Poles 2
Voltage Rating 250 VAC Amperage Rating 20 A
Conductor Size 16-8 AWG Color/Finish Black and White
Cord Type Portable Cord Size 0.36 - 0.93 in
Phase 1 Terminal Connection Pressure Screw
Temperature Rating -40 to 75 °C Continuous Maximum Load Capacity 5000 W
NEMA Rating L6-20P Dielectric Strength 2000 V
Material PBT Grounding Yes
Degree of Protection IP66 Mounting Type Surface, Cord
Dimensions 4.4 in H Environmental Conditions Watertight, UL 94 Requirements, V0 Rated Flammability
Standards UL 498, CSA C22.2 No. 42, Federal Specification W-C-596 Application For Extra Heavy Duty Industrial Applications
UPC 783585231105
