Eaton TR1307W-BOX Deco 20Amp Receptacle, 125V, White

Save 35%

Price:
$3.89 $5.95
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Eaton Wiring Devices

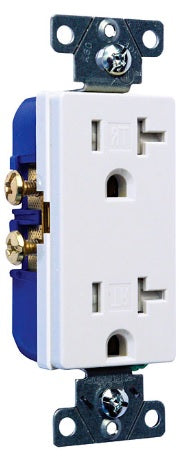

Eaton TR1307W-BOX Tamper-Resistant Decorator Duplex Receptacle, 20A, 125V, NEMA 5-20R, White

The Eaton TR1307W-BOX is a 20A 125V tamper-resistant decorator duplex receptacle designed for commercial and residential applications requiring a NEMA 5-20R configuration. Ideal for electricians, contractors, builders, and maintenance teams across Ontario, Alberta, British Columbia, Saskatchewan, Manitoba, Quebec, and Atlantic Canada.

20A / 125V Tamper Resistant NEMA 5-20R Side Wire White Finish cULus Listed

20A decorator receptacle for higher-amperage branch circuit applications

Eaton’s TR1307W-BOX is built for installations where a 20A 125V tamper-resistant decorator receptacle is required. It offers a clean white decorator look while supporting the heavier-duty 5-20R configuration commonly specified in certain residential, commercial, and specialty outlet applications.

  • 20A tamper-resistant receptacle with NEMA 5-20R configuration
  • Suitable for commercial and residential use where 20A devices are specified
  • Strong fit for contractor installs, service replacements, and project takeoffs
Always verify branch circuit design, plug configuration, local code requirements, and project suitability with the licensed electrician and authority having jurisdiction.

20A Rated Performance

Designed for 20A, 125V applications where a standard 15A receptacle is not the correct device choice.

Tamper-Resistant Design

Provides tamper-resistant protection while maintaining a clean decorator appearance for finished spaces.

Commercial & Residential Use

Suitable for both commercial and residential projects where a 5-20R receptacle is specified.

TR1307W-BOX overview

The Eaton TR1307W-BOX is a standard-grade decorator duplex receptacle rated for 20A and 125V. It features tamper-resistant construction, a white decorator face, flush mounting, screw termination, and a NEMA 5-20R configuration for applications that require a true 20A receptacle.


For Canadian electricians and contractors, this device is a practical choice for projects where the branch circuit and equipment call for 20A-rated receptacles rather than standard 15A devices. It is suited to commercial renovations, specialty residential installs, service upgrades, and maintenance work.


  • 20A, 125V decorator duplex receptacle
  • Tamper resistant with white finish
  • NEMA 5-20R straight blade configuration
  • Commercial and residential application range

TR1307W-BOX specifications

Specification Details
Manufacturer Eaton
Catalog Number TR1307W-BOX
Device Type Receptacle
Type Decorator duplex receptacle
Amperage Rating 20A
Voltage Rating 125V
NEMA Configuration 5-20R
Features Tamper resistant
Application Commercial / residential
Device Grade Standard grade
Wiring Method Side wire
Connection Type Screw
Allowable Wire Size Side wiring: #10-14 copper or copper clad aluminum
Contact Material Brass
Material Thermoplastic
Face / Body Material Impact-resistant thermoplastic face, PVC body
Color White
Mounting Method Flush
Number of Poles Two-pole
Number of Wires 3
Torque Rating 14 lbf-inch
Dimensions 1.31 in D x 4.19 in H x 0.74 in W
Weight 0.154 lb
Certifications cULus Listed, NOM

Best-fit applications

  • 20A branch circuit outlet installations
  • Commercial renovation and replacement work
  • Residential applications requiring 5-20R configuration
  • Service work where a 20A receptacle is specified

Contractor buying advantages

  • Clear 20A specification for code-conscious installs
  • Decorator styling for modern finished spaces
  • Reliable fit for commercial and residential projects
  • Easy cross-sell with Eaton switches and wall plates

TR1107W vs TR1307W

The main difference between Eaton TR1107W and TR1307W is amperage and receptacle configuration. TR1107W is the 15A, 5-15R option for standard general-purpose outlets, while TR1307W is the 20A, 5-20R option for circuits and applications requiring a true 20A receptacle.

Feature Eaton TR1107W Eaton TR1307W
Amperage 15A 20A
Voltage 125V 125V
NEMA 5-15R 5-20R
Wiring Method Side and push Side wire
Best Fit Standard outlet applications 20A-specified outlet applications
Buying tip: choose TR1307W only where the circuit design and device requirement call for a 20A, 5-20R receptacle.

Downloads & related resources

Review Eaton’s official product information and browse related MarsLED device categories for matching switches, plates, and receptacle options.

Suggested companion products

  • Eaton 7501-W single-pole decorator switch
  • Eaton 7503-W 3-way decorator switch
  • Eaton PJ26W decorator wall plate
  • Eaton PJS26W screwless decorator wall plate

MarsLED support

  • Contractor and project pricing support
  • Ontario-based supplier with Canada-wide shipping
  • Help matching devices to project requirements
  • Suitable for service stock and commercial orders

Frequently asked questions

What is the Eaton TR1307W-BOX used for?
The Eaton TR1307W-BOX is a 20A 125V tamper-resistant decorator duplex receptacle used where a NEMA 5-20R receptacle is required for commercial or residential branch circuit applications.
Is the TR1307W tamper resistant?
Yes. Eaton lists the TR1307W-BOX as a tamper-resistant receptacle.
What is the difference between TR1107W and TR1307W?
TR1107W is a 15A 5-15R receptacle, while TR1307W is a 20A 5-20R receptacle. The TR1307W is used where a true 20A configuration is specified.
Does Eaton TR1307W use side wire or push wire?
Eaton lists the TR1307W-BOX as a side-wire receptacle with screw termination.
Can MarsLED supply Eaton TR1307W across Canada?
Yes. MarsLED supports electricians, contractors, builders, and commercial buyers across Canada for Eaton wiring devices and project supply needs.

Need contractor pricing on Eaton 20A receptacles?

Contact MarsLED for bulk orders, recurring stock supply, and project pricing on Eaton receptacles, switches, wall plates, and other wiring devices for commercial and residential jobs across Canada.
