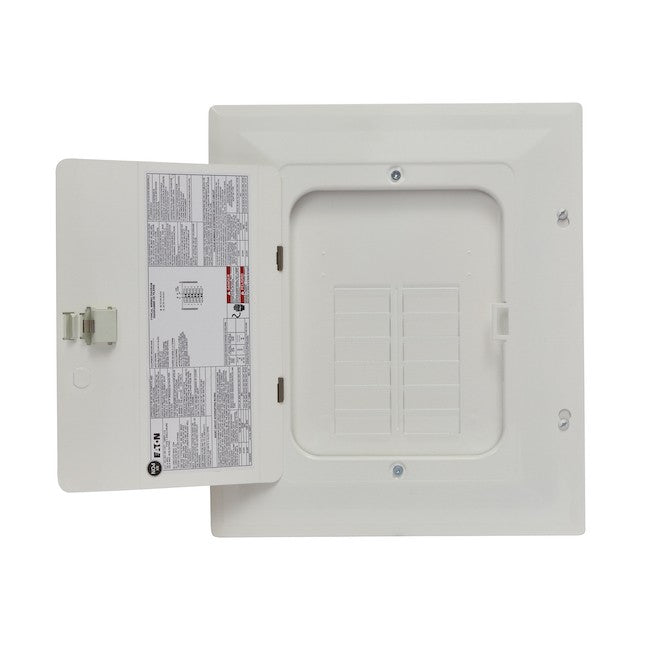

Eaton CBRPL116 125A 16/32-Circuit Main Lug Loadcentre – Single Phase

Save 19%

Price:
$194.98 $240
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Eaton BR Plug-On Neutral Subpanel

Eaton CBRPL116 125A 16/32-Circuit Main Lug Loadcentre

The Eaton CBRPL116 is a Canadian 125 amp BR main-lug-only indoor loadcentre for residential and light-commercial distribution. It provides 16 full-size spaces with capacity for up to 32 circuits, 120/240V single-phase 3-wire configuration, plug-on neutral, and a white NEMA 1 enclosure.

125A16 Spaces / 32 CircuitsMain Lug OnlyPlug-On Neutral
Availability Varies
125A
16/32 Circuit Subpanel
Eaton BR • 120/240V • NEMA 1 • 25 kAIC
Bus Rating125A
Spaces / Circuits16 / 32
Voltage / Phase120/240V 1Ø
Panel TypeMain Lug

Expanded 125A Branch-Circuit Capacity

CBRPL116 is designed for feeder-supplied downstream distribution and gives contractors substantially more circuit capacity than compact 4/8 and 8/16 subpanels. Common applications include garages, workshops, additions, utility areas and suitable light-commercial projects.

Key Features

125A Main Lug

Main-lug-only configuration for feeder-supplied downstream electrical distribution.

16 Spaces / 32 Circuits

Sixteen full-size breaker spaces with capacity for up to thirty-two circuits using compatible Eaton BR breakers.

Plug-On Neutral

Eaton BR plug-on-neutral architecture for compatible branch protection products and cleaner wiring.

Technical Specifications

Specification Details
Manufacturer Eaton
Catalog Number CBRPL116
Series BR
Product Type Main lug only loadcentre / subpanel
Maximum Ampere Rating 125A
Voltage 120/240V AC
Phase Single-phase
Wiring 3-wire
Full-Size Spaces 16
Maximum Circuits 32
Main Main lug only / non-combination
Neutral Plug-on neutral
Main Wire Range #14–2/0 AWG Cu/Al
Enclosure NEMA / Type 1 indoor
Enclosure Colour White
Cover Style Flush / surface
Interrupt Rating 25 kAIC
Catalogue Enclosure Dimensions 18.75 in H × 14.375 in W × 3.875 in D
Manufacturer Pack/Product Data 21 in L × 16 in W × 5.75 in H; 19 lb
UPC 621037003170
Certifications UL 50, UL 67, CSA Certified
Market Canada

Typical Applications

Garage Subpanel

Feeder-supplied branch distribution for suitable attached or detached garage projects.

Workshop & Addition

Additional local branch circuits for workshops, renovations and additions.

Light Commercial

Suitable indoor downstream distribution where a 125A main-lug panel is specified.

Related MarsLED Categories

Need Eaton CBRPL116 Pricing or Project Quantities?

MarsLED supplies Eaton loadcentres, subpanels, breakers and feeder materials for residential, contractor and light-commercial projects. Contact us for current availability and project quantities.
