Eaton BR230 30A Double-Pole Type BR Plug-On Circuit Breaker

Save 33%

Price:
$23.98 $36
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Eaton BR Thermal Magnetic Breaker

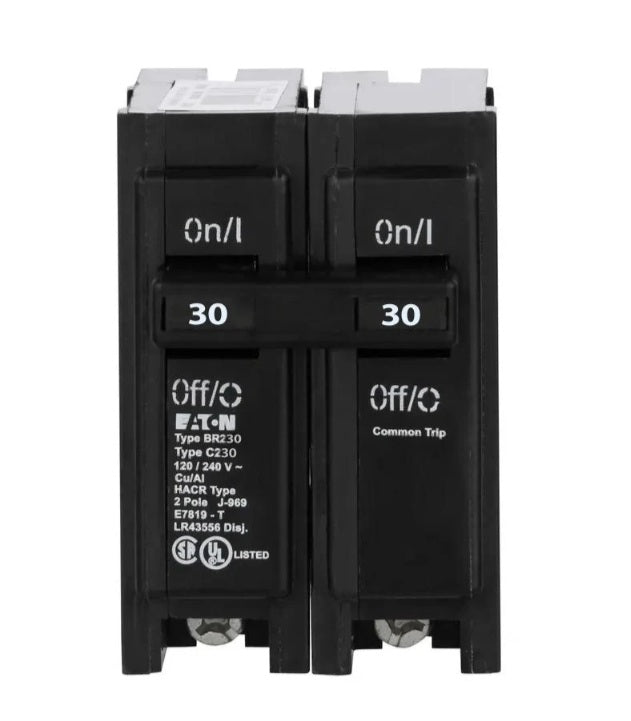

Eaton BR230 30A Double-Pole Type BR Plug-On Circuit Breaker

The Eaton BR230 is a 30 amp, two-pole Type BR thermal-magnetic circuit breaker for compatible Eaton Type BR loadcentres. It is rated 120/240V, uses a plug-on format, has a common breaker trip, and provides a 10 kAIC interrupt rating.

30A2 Pole120/240V10 kAIC
In Stock
30ADouble-Pole BR Breaker
Type BR • Plug-On • Common Trip • UL 489
Amperage30A
Poles2 Pole
Voltage120/240V
Interrupt Rating10 kAIC

Eaton BR 30A Double-Pole Circuit Protection

BR230 provides common-trip two-pole protection for compatible Eaton BR loadcentres. It is suitable for applications requiring a 30 amp, 120/240V two-pole breaker where the panel labeling and project requirements call for Type BR circuit protection.

Technical Specifications

Specification Details
Manufacturer Eaton
Catalog Number BR230
Product Type Thermal magnetic circuit breaker
Series / Type Type BR
Amperage 30A
Voltage 120/240V
Poles Two-pole
Trip Type Common breaker trip
Mounting Plug-on
Interrupt Rating 10 kAIC
Wire Size #14–4 AWG Cu/Al
Used With Type BR loadcentres
Dimensions 1.9 in L/D × 2.5 in H × 2.9 in W
Product Weight 0.65 lb
UPC 786676362955
Certification UL 489

Key Applications

Two-Pole Branch Circuits

Common-trip protection for suitable 120/240V branch-circuit applications.

Panel Replacement

Useful where an Eaton Type BR 30A two-pole breaker is specified for replacement or service work.

New BR Loadcentres

Pairs with compatible Eaton BR panels and loadcentres carried by MarsLED.

Final Sale – Circuit Breakers

All circuit breaker sales are final. Circuit breakers are not eligible for return, exchange or credit for incorrect selection, change of mind, project changes or compatibility issues.

Please verify the manufacturer, breaker series/type, model number, amperage, number of poles, voltage, mounting style and panel compatibility before ordering. If you are unsure, contact the MarsLED sales desk before purchase.

This final-sale policy does not limit any rights or remedies that cannot legally be excluded, including applicable rights relating to misrepresented or defective products and manufacturer warranty coverage.
