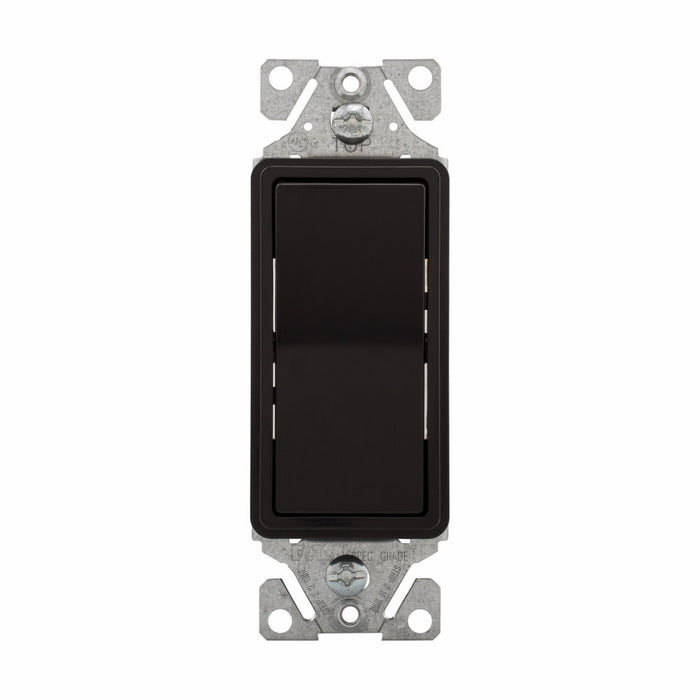

Eaton 7503BK-SP-C 15Amp 120/277V 3-Way Decorator Standard Grade Switch - Back Wire/Push Wire, Black
Decorator Switches feature ultrasonic welding and integrated construction of the strap and body provide superior integrity. Backwire clamps on the side terminals provide for easy installation of #12 and #14 wire. Redesigned paddle for easier actuation and quiet operation. Thermoplastic rocker, top and backbody are virtually unbreakable, promising years of durable performance. Tri-combo screws accept slotted-, Phillips, and Robertson-head tools for installation flexibility. Long, broad mounting strap virtually eliminates floating installations. Patented built-in wire stripper for #12 and #14 wire to speed installation. Stippled ground screw terminal standard. 120/277V/AC rating ideal for fluorescent lighting fixtures typical in commercial applications. Push-in terminals accept #14 solid wire.
Brand Name Eaton Sub Brand Arrow Hart Item Name Decorator Switch Type 3-Way, Standard Voltage Rating 120/277 VAC Amperage Rating 15 A Number of Poles 3 Actuator Rocker Switch Function Momentary Mounting Snap-In Connection Push Wired, Back and Side Wired Terminal Type Screw Temperature Rating -20 to 60 °C Material Thermoplastic Color Black Dimensions 1.81 in W x 2-1/2 in D x 3.28 in H Environmental Conditions V0, V2 Flammability Rated Per UL94 Standards UL20 Listed, cUL Listed Application For Commercial Use UPC 032664643781
