CSC LED HB8-240W-3P-3CCT-UD UFO LED High Bay – 200/220/240W 3CCT 120-347V DLC Premium

Save 16%
Eligible for Save on Energy Instant Discounts (Ontario)

Rebates applied instantly on your MarsLED invoice for qualifying commercial, industrial & institutional customers in Ontario.


Price:
$179.95 $215
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

CSC LED HB8 Series • Commercial & Industrial Lighting

HB8-240W-3P-3CCT-UD Selectable UFO LED High Bay

A compact, high-output LED high bay with selectable 200W / 220W / 240W power, selectable 3000K / 4000K / 5000K colour temperature, universal 120–347V input and 0–10V dimming.

DLC PremiumIP65NEMA 4XNSFIK085-Year Warranty
200/220/240WPower Selectable
27,842 –36,614 lmPublished Output
3CCT3000K–5000K
120–347VUniversal Voltage
0–10VDimmable
IP65 / NEMA 4XProtection

Commercial flexibility in one high bay

The CSC LED HB8-240W-3P-3CCT-UD is a selectable UFO LED high bay designed for warehouses, industrial facilities, workshops and other high-ceiling commercial spaces. One fixture provides three wattage settings and three colour-temperature settings, helping contractors standardize inventory while adapting output and appearance to the installation.

Its compact die-cast aluminum construction combines high lumen output with 120–347V compatibility, 0–10V dimming and commercial-grade environmental protection.

Why choose the CSC LED HB8?

✓ 3 Power SettingsChoose 200W, 220W or 240W to suit the required light level and application.
✓ 3CCT SelectableSelect 3000K, 4000K or 5000K for warmer, neutral or cooler white light.
✓ 120–347VUniversal-voltage input for a wide range of Canadian commercial electrical systems.
✓ 0–10V DimmingCompatible with properly matched 0–10V lighting controls.
✓ DLC PremiumCommercial performance classification relevant to qualifying efficiency projects.
✓ IP65 / NEMA 4XDesigned for demanding commercial and industrial environments.
✓ NSF & IK08Additional commercial, environmental and impact-related ratings.
✓ 5-Year WarrantyLong-life LED performance backed by CSC LED's five-year warranty.

Selectable wattage & lumen output

The HB8-240W-3P-3CCT-UD provides selectable 200W, 220W and 240W power together with 3000K, 4000K and 5000K colour-temperature settings. CSC LED's current HB8 sell sheet publishes the following lumen values:

Wattage 3000K 4000K 5000K
200W 27,842 lm 29,483 lm 29,695 lm
220W 29,027 lm 34,213 lm 31,707 lm
240W 33,267 lm 36,614 lm 35,155 lm
Published maximum in CSC LED's current lumen table: 36,614 lumens at 240W / 4000K.

CSC LED HB8 Series video demonstration

Watch CSC LED's HB8 Series demonstration for a closer look at the selectable high-bay platform, fixture design and product features.

CSC LED HB8 Series Demonstration

Manufacturer video showing the CSC LED HB8 high-bay series. Product features can vary by exact HB8 model; refer to the specifications on this page for the HB8-240W-3P-3CCT-UD.

Watch the HB8 demonstration on YouTube →

Technical specifications

Manufacturer CSC LED
Model / SKU HB8-240W-3P-3CCT-UD
Series HB8
Fixture Type UFO LED High Bay
Selectable Wattage 200W / 220W / 240W
Selectable CCT 3000K / 4000K / 5000K
Published Lumen Range* 27,842–36,614 lm
Input Voltage 120–347V
Current 2.70A
CRI 81
Beam Angle 90°
Dimming 0–10V
Surge Protection 6kV
Auxiliary Output 12V
Power Factor 0.9
THD 15%
Operating Temperature -40°C to +50°C
Environmental Rating IP65 / NEMA 4X
Impact Rating IK08
Additional Classification NSF
Efficiency Classification DLC Premium
Housing Die-cast aluminum
Lens Polycarbonate
Finish Black powder coat
Cord Whip 6 ft
Fixture Weight 6.83 lb
Fixture Dimensions 11 × 11 × 7.3 in
Carton Weight 7.94 lb
Carton Dimensions 13.4 × 13.4 × 7.3 in
Rated Life 50,000 hours L70
Warranty 5 years

*Lumen values are taken from CSC LED's current HB8 lumen-output table and vary by selected wattage and CCT.

Specifications are based on published CSC LED product information. Confirm the latest manufacturer documentation and accessory compatibility for project-specific requirements.

Ideal applications

  • Warehouses and distribution centres
  • Factories and manufacturing facilities
  • Food-processing and commercial production areas
  • Gymnasiums, arenas and recreational facilities
  • Large retail and grocery environments
  • Workshops, service bays and industrial spaces
  • Other high-ceiling commercial applications

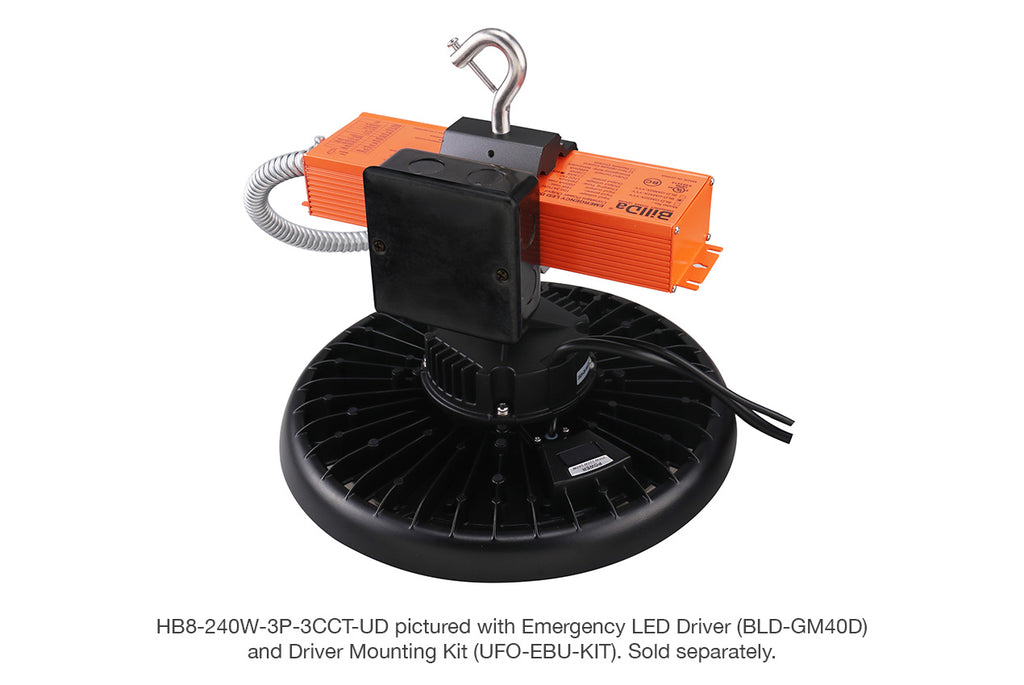

HB8 240W accessory options

The 240W HB8 platform supports several accessories sold separately, including motion sensors, 60° and 120° optics, aluminum and polycarbonate reflectors, frosted lenses, wire guards, yoke mounts and security-cable options.

Confirm the exact CSC LED accessory part number and compatibility before ordering.

Save on Energy & commercial lighting projects

DLC Premium commercial LED products may be relevant to qualifying energy-efficiency projects. Eligibility, incentives and requirements can change and depend on the specific product, project and current program rules. Confirm current eligibility before quoting an incentive.

Explore Save on Energy Lighting

Buying CSC LED? Don't forget CSC LED Rewards.

Electricians and contractors purchasing qualifying CSC LED products may be able to submit eligible purchases through the CSC LED Rewards program. Keep your MarsLED invoice or other required proof of purchase.

CSC LED Rewards Guide Shop CSC LED at MarsLED

Explore related commercial LED lighting

Frequently asked questions

What wattages can the CSC LED HB8-240W be set to?

The HB8-240W-3P-3CCT-UD provides three selectable power settings: 200W, 220W and 240W.

What colour temperatures are available?

The fixture is 3CCT selectable with 3000K, 4000K and 5000K settings.

How many lumens does the HB8-240W produce?

CSC LED's current lumen table lists outputs from 27,842 lumens up to 36,614 lumens depending on the selected wattage and CCT.

Can this high bay operate on 347V?

Yes. This model is rated for 120–347V input, making it suitable for many Canadian commercial and industrial electrical systems.

Is the CSC LED HB8-240W dimmable?

Yes. The fixture supports 0–10V dimming when used with compatible controls.

Is the HB8-240W DLC Premium?

CSC LED identifies the HB8 series as DLC Premium. For incentive projects, confirm current product eligibility and applicable program requirements before quoting an incentive.

Is the HB8-240W suitable for warehouse lighting?

Yes. Its high lumen output, selectable wattage, universal voltage and commercial construction make it well suited to warehouses, factories, gymnasiums and other high-ceiling facilities. Final fixture quantity and layout should be based on project lighting requirements.

Can contractors earn CSC LED Rewards on purchases from MarsLED?

Qualifying purchases may be eligible for CSC LED Rewards. Visit the MarsLED CSC LED Rewards guide and keep the required proof of purchase.
