CSC LED HB8-150W-3P-3CCT-UD UFO LED High Bay – 100/120/150W 3CCT 120-347V DLC Premium

Save 22%
Eligible for Save on Energy Instant Discounts (Ontario)

Rebates applied instantly on your MarsLED invoice for qualifying commercial, industrial & institutional customers in Ontario.


Price:
$139.98 $180
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

CSC LED HB8 Series • Commercial & Industrial Lighting

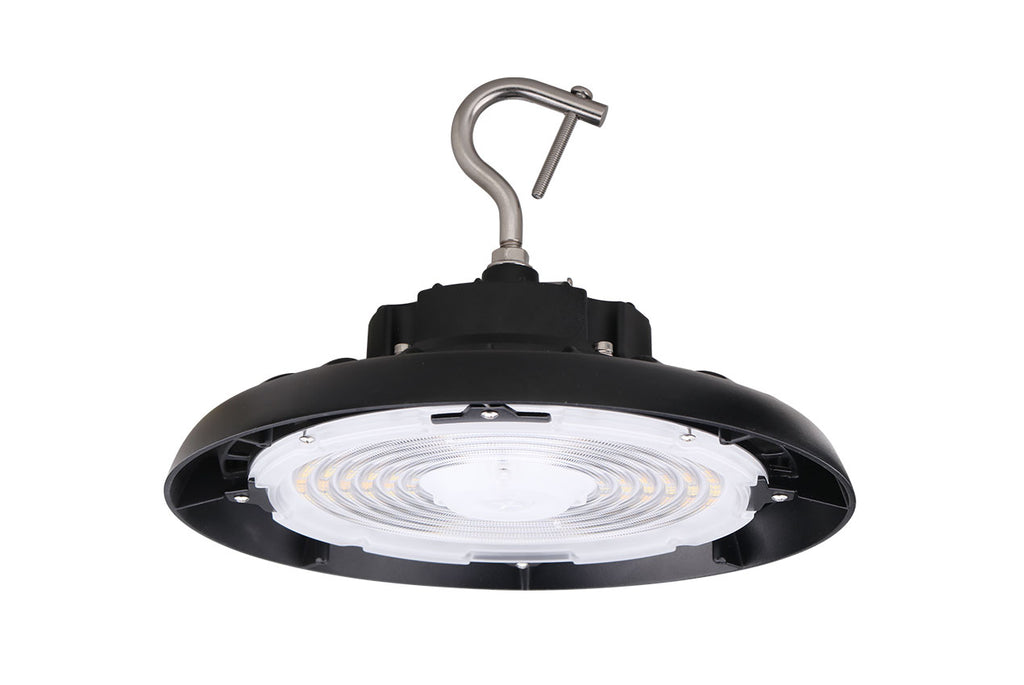

HB8-150W-3P-3CCT-UD Selectable UFO LED High Bay

A high-output LED high bay with selectable 100W / 120W / 150W power, selectable 3000K / 4000K / 5000K colour temperature, universal 120–347V input and 0–10V dimming.

DLC PremiumIP65NEMA 4XNSFIK085-Year Warranty
100/120/150WPower Selectable
20,344 lm*150W / 3000K Output
3CCT3000K–5000K
120–347VUniversal Voltage
0–10VDimmable
IP65 / NEMA 4XProtection

High-output commercial flexibility

The CSC LED HB8-150W-3P-3CCT-UD is a selectable UFO LED high bay designed for warehouses, industrial facilities, workshops and other high-ceiling commercial spaces. One fixture provides three wattage settings and three colour-temperature settings, helping contractors standardize inventory while adapting light output and appearance to the installation.

Its compact die-cast aluminum construction combines high lumen output with 120–347V compatibility, 0–10V dimming and commercial-grade environmental protection.

Why choose the CSC LED HB8?

✓ 3 Power SettingsChoose 100W, 120W or 150W to suit the required light level and application.
✓ 3CCT SelectableSelect 3000K, 4000K or 5000K for warmer, neutral or cooler white light.
✓ 120–347VUniversal-voltage input for a wide range of Canadian commercial electrical systems.
✓ 0–10V DimmingCompatible with properly matched 0–10V lighting controls.
✓ DLC PremiumCommercial performance classification relevant to qualifying efficiency projects.
✓ IP65 / NEMA 4XDesigned for demanding commercial and industrial environments.
✓ NSF & IK08Additional commercial construction and impact-related ratings.
✓ Long-Life LED50,000+ hour L70 performance backed by a 5-year warranty.

Selectable wattage & published output

The HB8-150W-3P-3CCT-UD provides selectable 100W, 120W and 150W power together with 3000K, 4000K and 5000K colour-temperature settings. CSC LED publishes 20,344 lumens and 134 lm/W at the 150W / 3000K setting.

Published performance: 20,344 lumens at 150W / 3000K. Light output will vary when another wattage or CCT setting is selected.

Technical specifications

Manufacturer CSC LED
Model / SKU HB8-150W-3P-3CCT-UD
Series HB8
Fixture Type UFO LED High Bay
Selectable Wattage 100W / 120W / 150W
Selectable CCT 3000K / 4000K / 5000K
Published Lumens* 20,344 lm at 150W / 3000K
Input Voltage 120–347V
Dimming 0–10V
Environmental Rating IP65 / NEMA 4X
Impact Rating IK08
Additional Classification NSF
Efficiency Classification DLC Premium
Housing Die-cast aluminum
Lens Polycarbonate
Rated Life 50,000+ hours L70
Warranty 5 years

*Published lumen and efficacy figures are shown by CSC LED at 150W / 3000K.

Specifications are based on published CSC LED product information. Confirm the latest manufacturer documentation and accessory compatibility for project-specific requirements.

Ideal applications

  • Warehouses and distribution centres
  • Manufacturing and industrial facilities
  • Workshops and service bays
  • Commercial storage areas
  • Gymnasiums and recreational facilities
  • Large retail and back-of-house spaces
  • Other high-ceiling commercial applications

HB8 accessory options

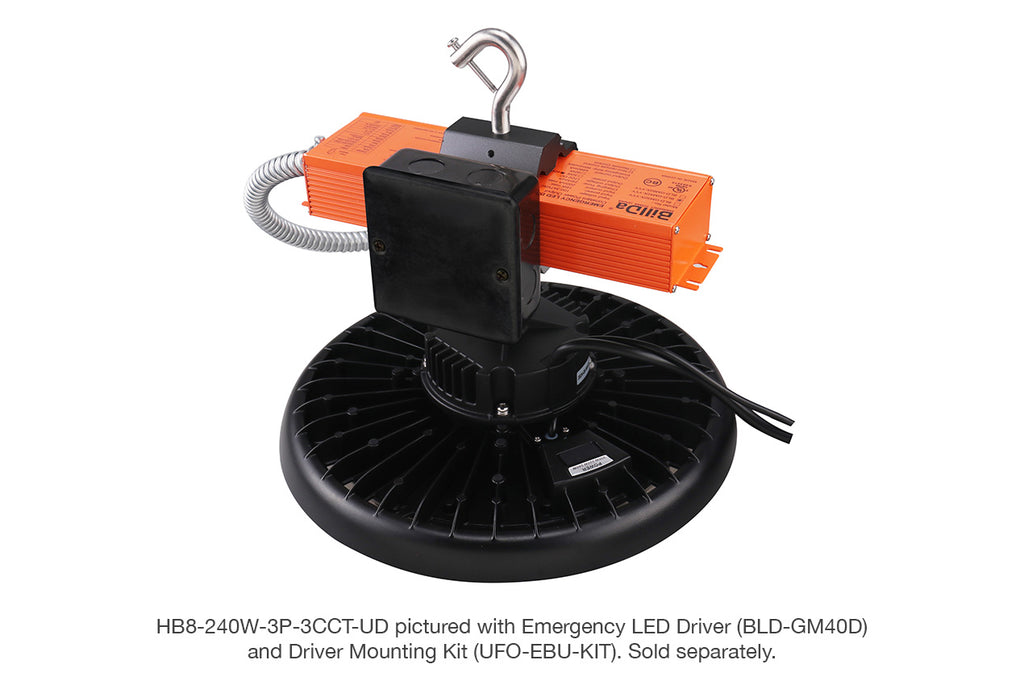

The HB8 family supports installation and control accessories that may include motion-sensor solutions, alternate optics, yoke mounting, frosted lens options, wire guards, reflectors and emergency-lighting solutions.

Confirm the correct CSC LED accessory part number and compatibility before ordering.

Save on Energy & commercial lighting projects

DLC Premium commercial LED products may be relevant to qualifying energy-efficiency projects. Eligibility, incentives and requirements can change and depend on the specific product, project and current program rules. Confirm current eligibility before quoting an incentive.

Explore Save on Energy Lighting

Buying CSC LED? Don't forget CSC LED Rewards.

Electricians and contractors purchasing qualifying CSC LED products may be able to submit eligible purchases through the CSC LED Rewards program. Keep your MarsLED invoice or other required proof of purchase.

CSC LED Rewards Guide Shop CSC LED at MarsLED

Explore related commercial LED lighting

Frequently asked questions

What wattages can the CSC LED HB8-150W be set to?

The HB8-150W-3P-3CCT-UD provides three selectable power settings: 60W, 80W and 100W.

What colour temperatures are available?

The fixture is 3CCT selectable with 3000K, 4000K and 5000K settings.

How many lumens does the HB8-150W produce?

CSC LED publishes 20,344 lumens at the 150W / 3000K setting. Output varies when a different selectable wattage or CCT is used.

Can this high bay operate on 347V?

Yes. This model is rated for 120–347V input, making it suitable for many Canadian commercial and industrial electrical systems.

Is the CSC LED HB8 dimmable?

Yes. The fixture supports 0–10V dimming when used with compatible controls.

Is it DLC Premium?

The HB8 product documentation identifies this fixture as DLC Premium. For incentive projects, confirm the current qualifying-products listing and applicable program requirements.

Is the HB8 suitable for warehouse lighting?

Yes. Its selectable high-output performance, universal voltage and commercial construction make it well suited to warehouses, distribution centres, workshops and other high-ceiling spaces. Final fixture quantity and layout should be based on project lighting requirements.

Can contractors earn CSC LED Rewards on purchases from MarsLED?

Qualifying purchases may be eligible for CSC LED Rewards. Visit the MarsLED CSC LED Rewards guide and keep the required proof of purchase.
