Description

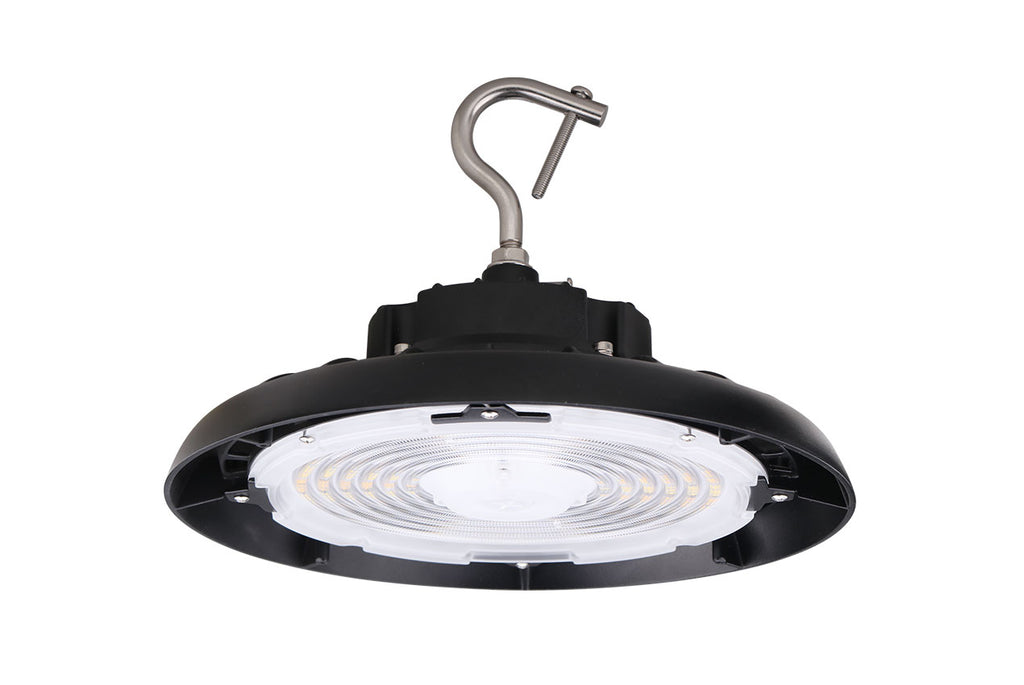

HB8-100W-3P-3CCT-UD Selectable UFO LED High Bay
A compact, high-output LED high bay with selectable 60W / 80W / 100W power, selectable 3000K / 4000K / 5000K colour temperature, universal 120–347V input and 0–10V dimming.
Commercial flexibility in one high bay
The CSC LED HB8-100W-3P-3CCT-UD is a selectable UFO LED high bay designed for warehouses, industrial facilities, workshops and other high-ceiling commercial spaces. One fixture provides three wattage settings and three colour-temperature settings, helping contractors standardize inventory while adapting output and appearance to the installation.
Its compact die-cast aluminum construction combines high lumen output with 120–347V compatibility, 0–10V dimming and commercial-grade environmental protection.
Why choose the CSC LED HB8?
Selectable wattage & lumen output
Light output varies with both the selected wattage and colour temperature. CSC LED publishes the following performance for this HB8 model:
| Power | 3000K | 4000K | 5000K |
|---|---|---|---|
| 60W | 9,172 lm | 9,807 lm | 9,599 lm |
| 80W | 11,366 lm | 12,379 lm | 12,219 lm |
| 100W | 13,587 lm | 14,672 lm | 14,592 lm |
Technical specifications
| Manufacturer | CSC LED |
| Model / SKU | HB8-100W-3P-3CCT-UD |
| Series | HB8 |
| Fixture Type | UFO LED High Bay |
| Selectable Wattage | 60W / 80W / 100W |
| Selectable CCT | 3000K / 4000K / 5000K |
| Published Lumen Range | 9,172–14,672 lm |
| Input Voltage | 120–347V |
| Dimming | 0–10V |
| Environmental Rating | IP65 / NEMA 4X |
| Impact Rating | IK08 |
| Additional Classification | NSF |
| Efficiency Classification | DLC Premium |
| Housing | Die-cast aluminum |
| Lens | Polycarbonate |
| Rated Life | 50,000+ hours L70 |
| Warranty | 5 years |
Specifications are based on published CSC LED product information. Confirm the latest manufacturer documentation and accessory compatibility for project-specific requirements.
Ideal applications
- Warehouses and distribution centres
- Manufacturing and industrial facilities
- Workshops and service bays
- Commercial storage areas
- Gymnasiums and recreational facilities
- Large retail and back-of-house spaces
- Other high-ceiling commercial applications
HB8 accessory options

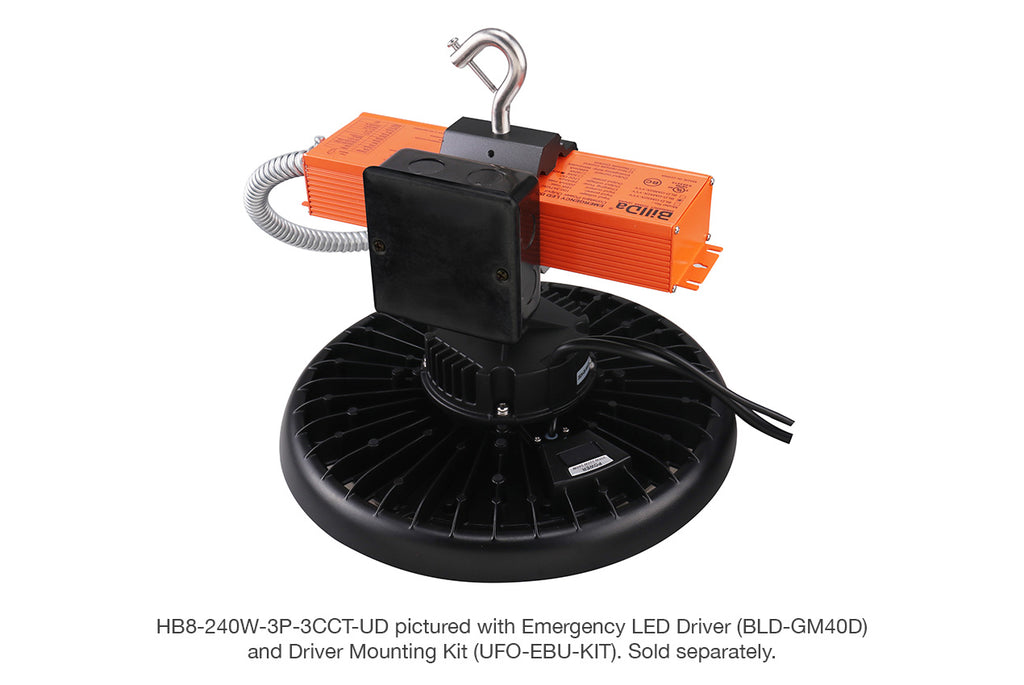

The HB8 family supports installation and control accessories that may include motion-sensor solutions, alternate optics, yoke mounting, frosted lens options, wire guards, reflectors and emergency-lighting solutions.
Confirm the correct CSC LED accessory part number and compatibility before ordering.
Save on Energy & commercial lighting projects
DLC Premium commercial LED products may be relevant to qualifying energy-efficiency projects. Eligibility, incentives and requirements can change and depend on the specific product, project and current program rules. Confirm current eligibility before quoting an incentive.
Explore Save on Energy LightingBuying CSC LED? Don't forget CSC LED Rewards.
Electricians and contractors purchasing qualifying CSC LED products may be able to submit eligible purchases through the CSC LED Rewards program. Keep your MarsLED invoice or other required proof of purchase.
CSC LED Rewards Guide Shop CSC LED at MarsLEDExplore related commercial LED lighting
Frequently asked questions
What wattages can the CSC LED HB8-100W be set to?
The HB8-100W-3P-3CCT-UD provides three selectable power settings: 60W, 80W and 100W.
What colour temperatures are available?
The fixture is 3CCT selectable with 3000K, 4000K and 5000K settings.
How many lumens does the HB8-100W produce?
Published output ranges from 9,172 lumens at 60W / 3000K to a maximum of 14,672 lumens at 100W / 4000K.
Can this high bay operate on 347V?
Yes. This model is rated for 120–347V input, making it suitable for many Canadian commercial and industrial electrical systems.
Is the CSC LED HB8 dimmable?
Yes. The fixture supports 0–10V dimming when used with compatible controls.
Is it DLC Premium?
The HB8 product documentation identifies this fixture as DLC Premium. For incentive projects, confirm the current qualifying-products listing and applicable program requirements.
Is the HB8 suitable for warehouse lighting?
Yes. Its selectable high-output performance, universal voltage and commercial construction make it well suited to warehouses, distribution centres, workshops and other high-ceiling spaces. Final fixture quantity and layout should be based on project lighting requirements.
Can contractors earn CSC LED Rewards on purchases from MarsLED?
Qualifying purchases may be eligible for CSC LED Rewards. Visit the MarsLED CSC LED Rewards guide and keep the required proof of purchase.
