Description

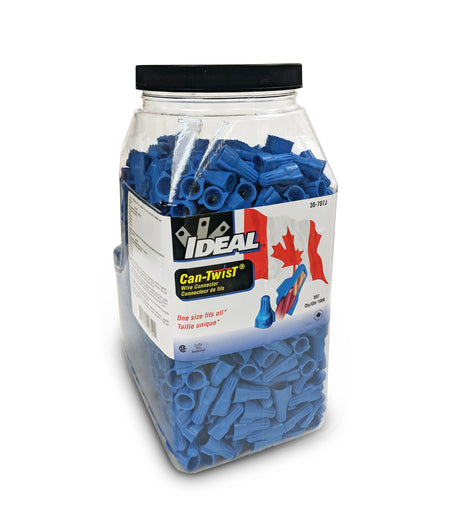

Ideal Industries Can-Twist™ 30-707J Wire Connectors -Jar Of 1000 Marretts
- Exceptional wire-range capacity - listed for over 800 different wire combinations from 22 to 8 AWG (solid and/or stranded)
- Ergonomic, easy-twist design - only a few turns are needed to achieve torque, without the need to pre-twist wire
- Heat-set, square-cut springs stay in place, and firmly grip wire for superior connectivity
- Flexible outer shell virtually eliminates cracking, expanding to securely accommodate wire - indicated by white expansion lines
- Extended skirt length provides over-strip protection
- Sleek design helps reduce box fill
- Wire combinations: min. 3x22 AWG / max. 3x10 AWG
- CSA Approved 20 amp / 600V (CSA 22.2 #188 Certified)
- Cu/Cu only
- Operating temperature up to 105 ºC / 221 ºF
Product Specifications
| Type | SWEPT WING |
|---|---|
| Maximum Wire Combination Size | (3) #10 |
| Minimum Wire Combination Size | (3) #22 |
| Spring Type | SQUARE WIRE |
| Wire Type | SOLID/STRANDED |
| Temperature Rating | 221 DEG F |
| Color | BLUE |
| Voltage Rating | 600 V |
| Wire Size | 22 TO 8 AWG |
| Standard Package | 1000 PER JAR |
| Approval | CSA 22.2 |
| Mfrcode | IDI |
| Pkg UOM | EA |
| Pkg Qty | 4000 |
| Pkg Type | PK |
| Pkg Weight | 19.6 |
| Pkg Weight UOM | LB |
| Product Name | WIRE CONNECTOR |
| Mfr Fullname | IDEAL |
| Mfr UNSPSC | 62414100729 |
| Catalog Number | 30-707J |
