Ideal Industries Can-Twist™ 30-107J Wire Connectors Jar of 175 Marretts

Save 22%
filler

Price:
$15.49 $19.95
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2022. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

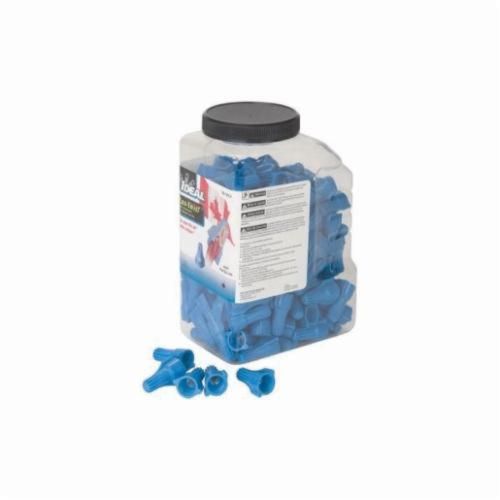

Ideal Industries Can-Twist™ 30-107J Wire Connectors Jar of 175 Marretts

The first one size fits all connector covers most residential wire combinations! A compact twist on connector that has wings for added torque. Can-Twist does the job of Red, Yellow, Orange, Blue and Gray Wire-Nuts so no more searching for the right connector! 600V No. 22 to 8 AWG Min. 3 No. 22 Max. 3 No.10

  • Exceptional wire-range capacity - listed for over 800 different wire combinations from 22 to 8 AWG (solid and/or stranded)
  • Ergonomic, easy-twist design - only a few turns are needed to achieve torque, without the need to pre-twist wire
  • Heat-set, square-cut springs stay in place, and firmly grip wire for superior connectivity
  • Flexible outer shell virtually eliminates cracking, expanding to securely accommodate wire - indicated by white expansion lines
  • Extended skirt length provides over-strip protection
  • Sleek design helps reduce box fill
  • Wire combinations: min. 3x22 AWG / max. 3x10 AWG
  • CSA Approved 20 amp / 600V (CSA 22.2 #188 Certified)
  • Cu/Cu only
  • Operating temperature up to 105 ºC / 221 ºF

Product Specifications

Twist-On Or Push-In Wire Connectors
Trade Mark CAN-TWIST
Spring Type SQUARE WIRE
Description TWIST-ON WIRE CONNECTOR
Mfr Part # 30-107J
Manufacture IDEAL
Csa / Ul Approved CSA/UL APPROVED
Unit of Measure EACH
Carton Qty. 175
Colour BLUE
Temperature Rating 221 DEG F
Std. Package Qty. 2100
Cable Range Main (End A) MIN. 3#22 - MAX. 3#10
Price Per C
Cable Size (Awg) or Capacity #22 AWG To #8 AWG
Multiple Order Qty. 175 MULTIPLE
Put-Up 175 Pc. / JAR
Minimum Wire Combination Size (3) #22
Maximum Wire Combination Size (3) #10
Type SWEPT WING
Catalog Number 30-107J
Mfr Fullname IDEAL
Mfr UNSPSC 62414100727
Product Name WIRE CONNECTOR
Pkg Weight 11.6
Pkg Weight UOM LB
Pkg Type PK
Pkg Qty 2100
Mfrcode IDI
Pkg UOM EA
Approval CSA 22.2
Voltage Rating 600 V
Wire Size 22 TO 8 AWG
Color BLUE
Standard Package 175 PER JAR
Wire Type SOLID/STRANDED
