14/3 TECK90 Copper Armoured Cable with Ground – Sold Per Meter

Save 25%

Price:
$5.98 $8
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

TECK90 • 14 AWG • 3 Conductor Copper • Sold Per Meter

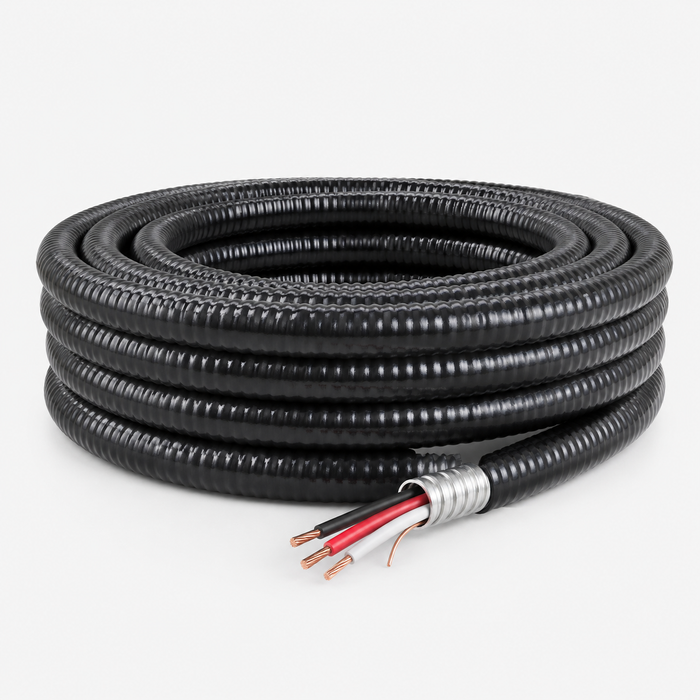

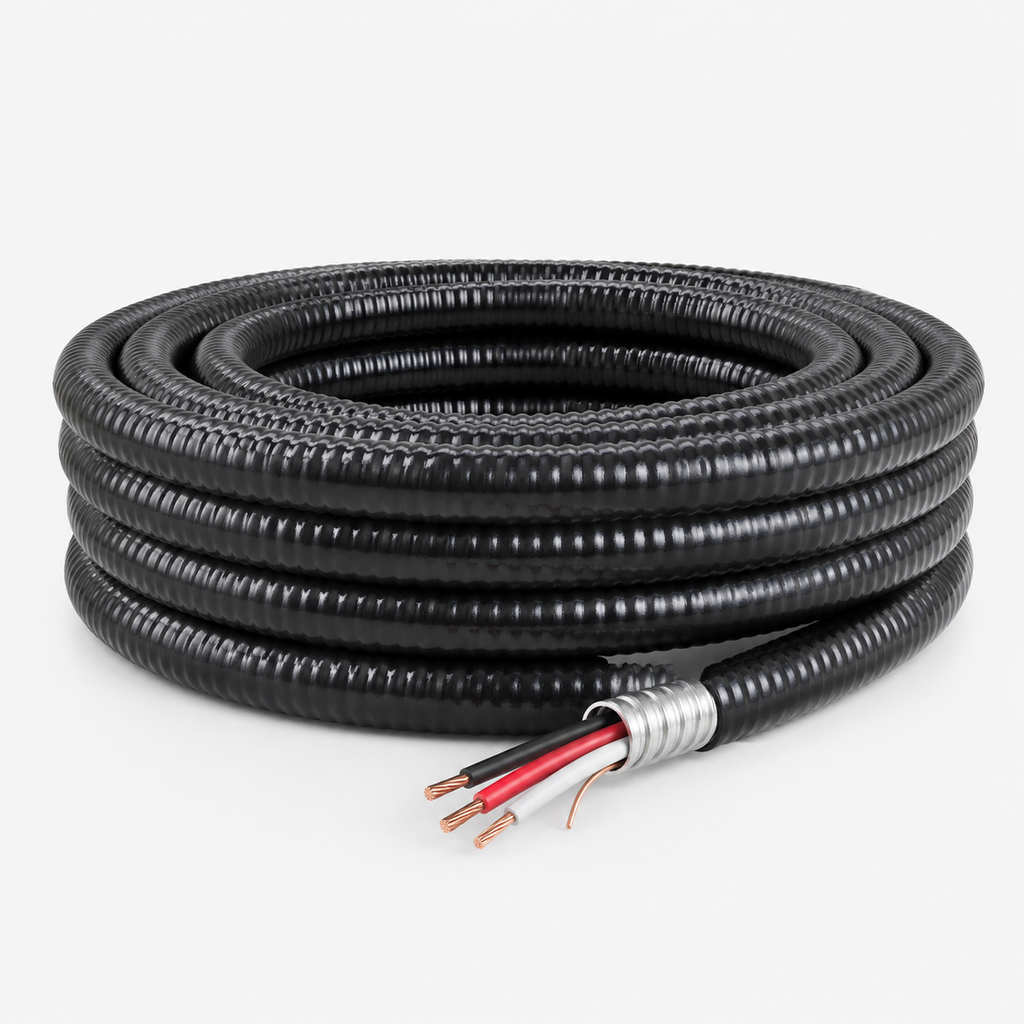

14/3 TECK90 Armoured Copper Cable – 600V Outdoor Control & Equipment Wire

Contractor-grade 14/3 TECK90 copper cable for control wiring, outdoor lighting circuits, signs, small equipment wiring, commercial branch circuits, motor controls, direct burial applications, and wet-location Canadian electrical projects.

Sold Per Meter 600V Rated 90°C Conductors Armoured Protection Outdoor / Wet Location Use

Important Ordering Notes

  • Sold per meter: enter the required cable length as the quantity. Example: Qty 15 = 15 meters.
  • Cut-to-length item: please confirm the required length before placing your order.
  • Recommended connector: CMP TMC2-050A099 1/2" NPT Aluminum TECK Connector for many 14/3 TECK installations.
  • Shipping note: larger cable orders may require shipping or freight review before fulfillment.
  • Need help? Call the order desk at 1-833-277-6277.

Ordering Confidence: What Quantity Should I Enter?

This listing is priced and sold by the meter. The quantity you enter equals the number of meters you want cut.

If You Need Enter Quantity Typical Project Example
10 meters Qty 10 Short control, sign, or equipment wiring run
20 meters Qty 20 Outdoor lighting, motor control, or commercial branch circuit run
35 meters Qty 35 Longer outdoor, commercial, farm, or equipment control run
Tip: Measure the full cable path, including panel entry, routing, bends, termination points, and extra working length. Your electrician should confirm the final length before ordering.

Complete Your TECK Installation

14/3 TECK cable should be installed with proper TECK connectors. Standard BX, AC90, NMD, or general-purpose fittings are not the right connector type for TECK cable.

Connector note: Always verify actual cable outside diameter, enclosure knockout size, and connector manufacturer fit before ordering.

Best-Fit Applications

Control Wiring

A strong choice for commercial controls, equipment controls, signalling, and low-load control circuits requiring armoured protection.

Outdoor Lighting & Signs

Used for exterior lighting, signs, building perimeter lighting, and outdoor branch circuits where an extra conductor is required.

Small Equipment Circuits

Useful for small equipment, pumps, HVAC controls, service areas, utility spaces, and commercial equipment wiring.

Direct Burial & Outdoor Runs

Designed for outdoor and underground applications where TECK90 is approved and installed according to code.

Application Fit Guide

Project Type Why 14/3 TECK90 May Be Used Also Consider
Controls / Signals Three insulated conductors plus ground support control wiring where an extra conductor is required. TECK connectors, control boxes, junction boxes, labels.
Outdoor Lighting / Signs Armoured outdoor wiring for lighting, signs, switching, and equipment where wet-location durability matters. Weatherproof boxes, covers, breakers, fittings.
Small Equipment Mechanical protection for exposed wiring to small equipment, pumps, controls, and service-area devices. Disconnects, weatherproof terminations, proper connectors.
Commercial Branch / Control Circuit Rugged wiring option for commercial lighting, controls, signs, service areas, and low-load equipment circuits. Breakers, junction boxes, disconnects, grounding/bonding components.
Important: Always confirm conductor size, breaker size, GFCI protection, voltage drop, burial depth, and connector fit with a licensed electrician before ordering.

Why Contractors Choose 14/3 TECK90

Armoured Protection Helps protect cable from physical damage in exposed, garage, utility, outdoor, commercial, and industrial environments.
Outdoor Ready Suitable for demanding Canadian weather conditions when installed with proper fittings and approved methods.
Extra Conductor Flexibility Provides three insulated conductors plus ground for control, switching, lighting, and equipment wiring needs.
Canadian Job-Site Familiarity TECK90 is widely recognized by electricians for rugged outdoor, commercial, and equipment wiring applications.

Commonly Bought Together

Typical Cable Construction

Component Typical Detail
Conductors 3 × 14 AWG copper conductors
Bond / Ground Typically includes bonding conductor / ground
Insulation RW90 / XLPE insulated conductors
Inner Jacket PVC inner protective jacket
Armour Aluminum interlocked armour for mechanical protection
Outer Jacket Black PVC outer jacket for rugged applications

Typical Specifications

Specification Details
Cable Type TECK90 armoured copper cable
Size 14 AWG
Conductors 3 copper conductors plus bond / ground
Voltage Rating Typically 600V
Temperature Rating Typically 90°C conductor rating
Common Uses Control wiring, outdoor lighting, signs, small equipment circuits, motor controls, commercial branch/control circuits, direct burial applications, and wet-location wiring where approved

Pickup, Delivery & Shipping Notes

Cut-to-Length Order Cable is sold per meter and cut based on the quantity ordered.
Pickup Available Contact MarsLED to confirm pickup timing for Kitchener / Milton service area orders.
Ontario Shipping Ontario orders over $250 may qualify for free shipping where eligible.
Cable Order Note Larger cut-length orders may require order desk confirmation due to cable weight and shipping method.

FAQ

How do I order 14/3 TECK90 cable by the meter?

Enter the number of meters required as the quantity. For example, quantity 25 means 25 meters of cable.

Which connector should I buy with this cable?

For many 14/3 TECK90 installations, we recommend the CMP TMC2-050A099 1/2" NPT Aluminum TECK Connector. Always verify cable outside diameter and entry size before ordering.

What is the difference between 14/2 and 14/3 TECK90?

14/2 TECK90 has two insulated copper conductors plus bond/ground, while 14/3 TECK90 has three insulated copper conductors plus bond/ground. The extra conductor may be required for certain control, switching, lighting, or equipment wiring applications.

Can TECK90 cable be direct buried?

TECK90 cable is commonly used for direct burial applications where approved. Burial depth, transition points, protection, and inspection requirements must be confirmed before installation.

Shop Related Categories

Need Help With Length, Connector Fit, or Project Materials?

Send us your project type, approximate run length, and termination points. We can help you match the cable with TECK connectors, weatherproof boxes, disconnects, breakers, conduit fittings, and related materials.

Order Desk: 1-833-277-6277 | Kitchener: 519-893-6666 | Milton: 905-878-9997
