Eaton CBRPM130 100A 30/60-Circuit Main Breaker Loadcentre – Single Phase

Save 44%

Price:
$134.98 $240
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Eaton BR Plug-On Neutral Loadcentre

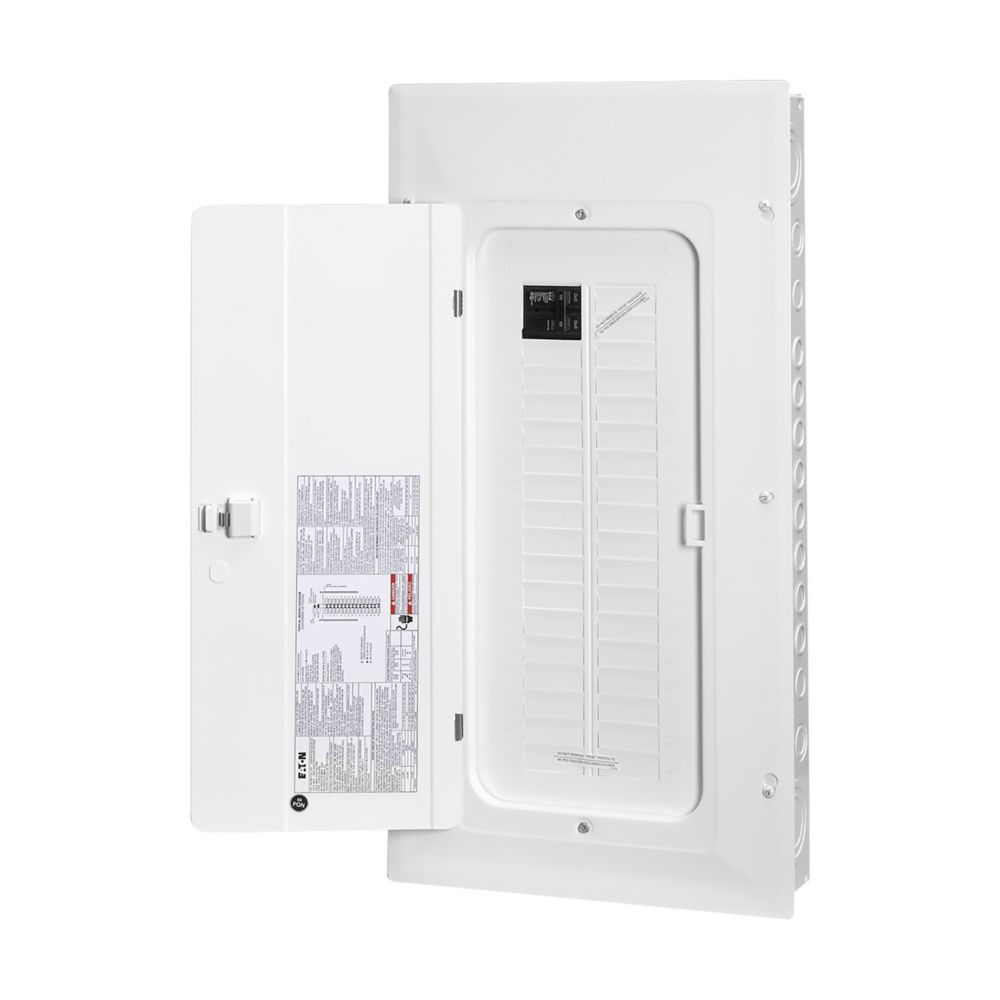

Eaton CBRPM130 100A 30-Space / 60-Circuit Main Breaker Loadcentre

The Eaton CBRPM130 is a 100 amp BR main breaker loadcentre for Canadian residential electrical distribution. It provides 30 spaces with capacity for up to 60 circuits, a 120/240V single-phase 3-wire configuration, plug-on-neutral design, and a white NEMA 1 indoor enclosure.

100A30 Spaces / 60 Circuits120/240V Single PhasePlug-On Neutral
In Stock
100AResidential Main Breaker Panel
Eaton BR Series • 30/60 • NEMA 1 • CSA Certified
Service Rating100A
Spaces / Circuits30 / 60
Voltage / Phase120/240V 1Ø
EnclosureNEMA 1

100A Eaton BR Panel for Canadian Residential Distribution

Choose the CBRPM130 when a project calls for a 100 amp indoor main-breaker loadcentre with 30 spaces and up to 60 circuits. Its plug-on-neutral BR platform is suited to residential panel replacement, renovation, new construction, and electrical distribution projects where this configuration is specified.

Key CBRPM130 Features

100A Main Breaker

Factory main-breaker configuration for residential electrical distribution applications requiring a 100 amp panel.

30 Spaces / 60 Circuits

Thirty full-size spaces with capacity for up to 60 circuits provide useful branch-circuit flexibility.

Plug-On Neutral

Eaton BR plug-on-neutral architecture supports compatible BR protection products and cleaner panel wiring.

Eaton CBRPM130 Overview

The CBRPM130 is a Canadian-market Eaton BR main breaker loadcentre rated 100A, 120/240V AC, single-phase, 3-wire, with 30 spaces and a maximum of 60 circuits. It uses a white Type 1 / NEMA 1 indoor steel enclosure, plug-on neutral, and combination flush/surface mounting.

  • 100A main breaker loadcentre
  • 30 spaces / up to 60 circuits
  • 120/240V AC, single-phase, 3-wire
  • Plug-on neutral
  • NEMA 1 indoor enclosure
  • CSA Certified

Technical Specifications

Specification Details
Manufacturer Eaton
Catalog Number CBRPM130
Series BR
Product Type Main breaker loadcentre / electrical panel
Main Breaker Rating 100A
Voltage 120/240V AC
Phase Single-phase
Wires 3-wire
Spaces 30
Maximum Circuits 60
Neutral Plug-on neutral
Enclosure NEMA / Type 1 indoor
Mounting Combination flush / surface
Main Conductor Range #8–1/0 AWG Cu/Al
Interrupt Rating 22 kAIC per current Eaton Canada page
Dimensions 29.13 in H × 14.38 in W × 3.88 in D
Product Weight 30 lb
Certification UL 50, UL 67, CSA Certified
UPC 621037003125

Typical Applications

100A Residential Services
For projects requiring a 100 amp residential main-breaker loadcentre.
Panel Replacement
For replacement and modernization projects requiring a 30-space Eaton BR panel.
Renovations
Up to 60 circuits provide useful flexibility for branch-circuit changes.
New Construction
An Eaton BR plug-on-neutral option for Canadian residential electrical distribution.

Frequently Asked Questions

What is the Eaton CBRPM130?
A 100A Eaton BR main-breaker loadcentre with 30 spaces, capacity for up to 60 circuits, plug-on neutral, single-phase configuration and a NEMA 1 indoor enclosure.
How many circuits does it support?
It provides 30 spaces and supports up to 60 circuits.
Is it an indoor panel?
Yes. It uses a NEMA / Type 1 indoor enclosure.
What voltage is it?
120/240V AC, single-phase, 3-wire.

Complete the Panel & Distribution Project

Need Eaton Panel Pricing or Project Quantities?

MarsLED supports electricians, contractors, builders and project buyers with Eaton panels, breakers and related distribution equipment.
