Panasonic FV-0511VHL1 WhisperWarm Bathroom Fan with Heater & LED Light

Save 49%

Price:
$389.98 $763.42
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

Panasonic WhisperWarm® DC Comfort Ventilation

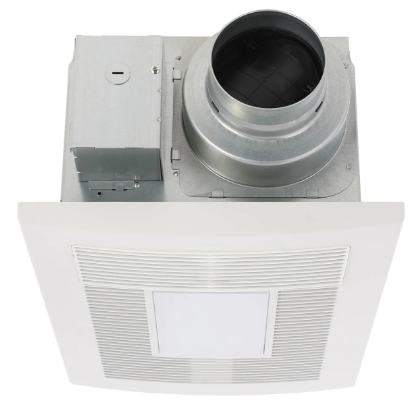

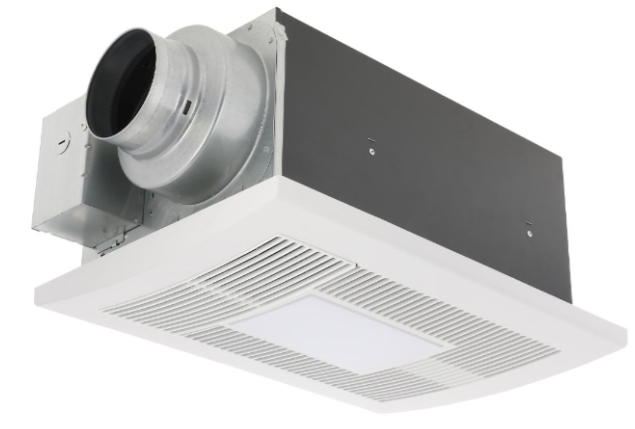

Panasonic FV-0511VHL1 WhisperWarm® DC Fan, Heater and LED Light

The Panasonic FV-0511VHL1 combines quiet bathroom ventilation, supplemental heat, a dimmable LED light and an LED night light in one ceiling-mounted unit. It is especially well suited to cold bathrooms, ensuites, basements, cottages and bathrooms located above garages.

Pick-A-Flow® allows 50, 80 or 110 CFM selection, while the 1600W Positive Temperature Coefficient heater provides fast, self-limiting supplemental warmth. SmartFlow™ technology helps the ECM motor maintain the selected airflow under real-world duct conditions.

50 / 80 / 110 CFM 1600W PTC Heater 10W Dimmable LED LED Night Light 4" or 6" Duct

Product Overview Video – WhisperWarm FV-0511VHL1

Why Choose the Panasonic FV-0511VHL1?

Three Functions in One

Combines an exhaust fan, supplemental bathroom heater and warm-white LED lighting in one coordinated ceiling fixture.

Fast Supplemental Warmth

The 1600W PTC heater is self-limiting and designed to provide reliable, evenly distributed bathroom heat.

Selectable Airflow

Pick-A-Flow® lets the installer select 50, 80 or 110 CFM to suit the room and ventilation design.

Key Product Features

  • Fan, heater, dimmable LED light and LED night light
  • Pick-A-Flow® selectable airflow: 50 / 80 / 110 CFM
  • 1600W Positive Temperature Coefficient heater
  • ECM motor with SmartFlow™ technology
  • Quiet performance across selectable airflow settings

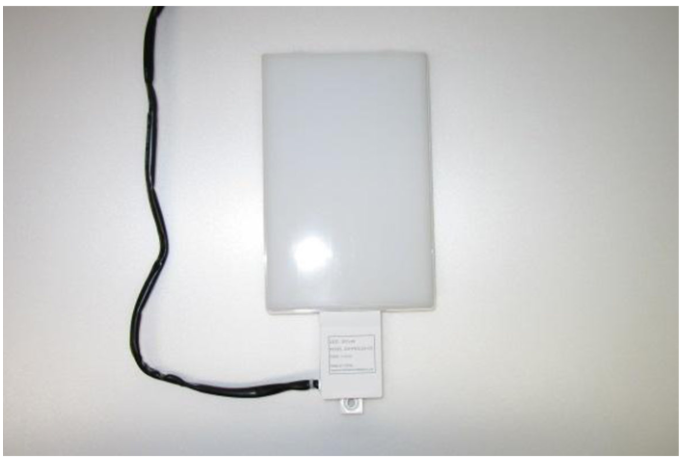

  • 10W dimmable LED panel, 3000K warm white
  • Approximately 750 lumens and CRI above 90
  • Low-wattage LED night light
  • Integrated 4-inch or 6-inch duct adapter
  • Flex-Z Fast® installation bracket

Recommended Applications

Cold Bathrooms and Ensuites

A practical choice where supplemental heat is desired before, during or after bathing.

Basement and Over-Garage Bathrooms

Suitable for rooms that tend to feel colder than the rest of the home.

Cottages and Seasonal Properties

Provides ventilation, lighting and additional warmth in one ceiling-mounted assembly.

Renovation and New Construction

The articulated Flex-Z Fast® bracket and dual duct adapter support a range of installation conditions.

Product Specifications

Brand Panasonic
Model FV-0511VHL1
Series WhisperWarm® DC
Product Type Ceiling-mounted fan, heater, dimmable LED light and night light
Airflow Selection 50 / 80 / 110 CFM
Heater 1600W PTC heater
Motor ECM DC motor with SmartFlow™ technology
Main Light 10W dimmable LED, 3000K warm white, approximately 750 lumens, CRI above 90
Night Light Integrated LED night light
Duct Diameter 4 inches or 6 inches
Housing Dimensions 16 inches × 10-1/4 inches × 7-1/2 inches
Grille Size 13-1/4 inches × 18-1/4 inches
Electrical Rating 120V / 60 Hz
Circuit Requirement Dedicated 20A circuit recommended; follow Panasonic instructions and local code
Mounting Ceiling mount with expandable installation bracket
Warranty Refer to Panasonic warranty documentation for current coverage

Important Electrical and Installation Note

Confirm ceiling clearance, switching, ducting, wiring, circuit requirements and applicable Canadian electrical and building codes before installation. The heater provides supplemental warmth and is not intended to replace the home's primary heating system.

Explore More Panasonic Ventilation Products

Panasonic FV-0511VHL1 FAQ

Does the FV-0511VHL1 include a heater and light?

Yes. It combines a 1600W PTC heater, a dimmable LED light, an LED night light and selectable bathroom ventilation.

What airflow settings are available?

The Pick-A-Flow® selector provides 50, 80 or 110 CFM settings.

Can the heater replace the home's primary heating system?

No. The heater is intended to provide supplemental bathroom warmth.

What electrical circuit is required?

Follow Panasonic's installation instructions and applicable local electrical code. A dedicated 20A circuit is typically recommended for this heater combination.

Does MarsLED ship this model across Canada?

MarsLED supports Canadian orders for Panasonic ventilation products. Availability, shipping charges and delivery timing depend on inventory, order size and destination.

Need Help With the Panasonic FV-0511VHL1?

Contact MarsLED for current inventory, contractor quantities, product selection and Canadian order support.
