Panasonic FV-0511VQCL1 WhisperSense DC fan-LED Lights Motion and Humidity Sensors Delay Timer Pick-A-Flow Speed Selector 50, 80 or 110 CFM VQCL1

Save 29%

Price:
$379.98 $535
**Promotion Terms & Conditions Apply. MARS Lighting & Electrical Supplies reserves the right to modify or cancel this offer at any time. Cannot be combined with any other promo/discounts/offer. Contact our in-store sales associate for details. *Minimum order quantities may be required to qualify for this promotional price. Offer valid till stocks last or 12/31/2026. Limited Quantities in stock, Orders fulfilled on First Come First Serve basis. Conditions Apply. All Promotional Sales considered as Final Sales. No Exchange No Returns.

Description

WhisperSense® DC Fan, LED Light & Dual Sensors

Panasonic FV-0511VQCL1 WhisperSense® Bathroom Fan with LED Light

The Panasonic FV-0511VQCL1 combines selectable 50, 80 or 110 CFM ventilation with a dimmable LED light, separate night light, motion sensing, humidity sensing and an adjustable delay timer. It is designed for bathrooms and other moisture-prone spaces where automatic ventilation and integrated lighting are preferred.

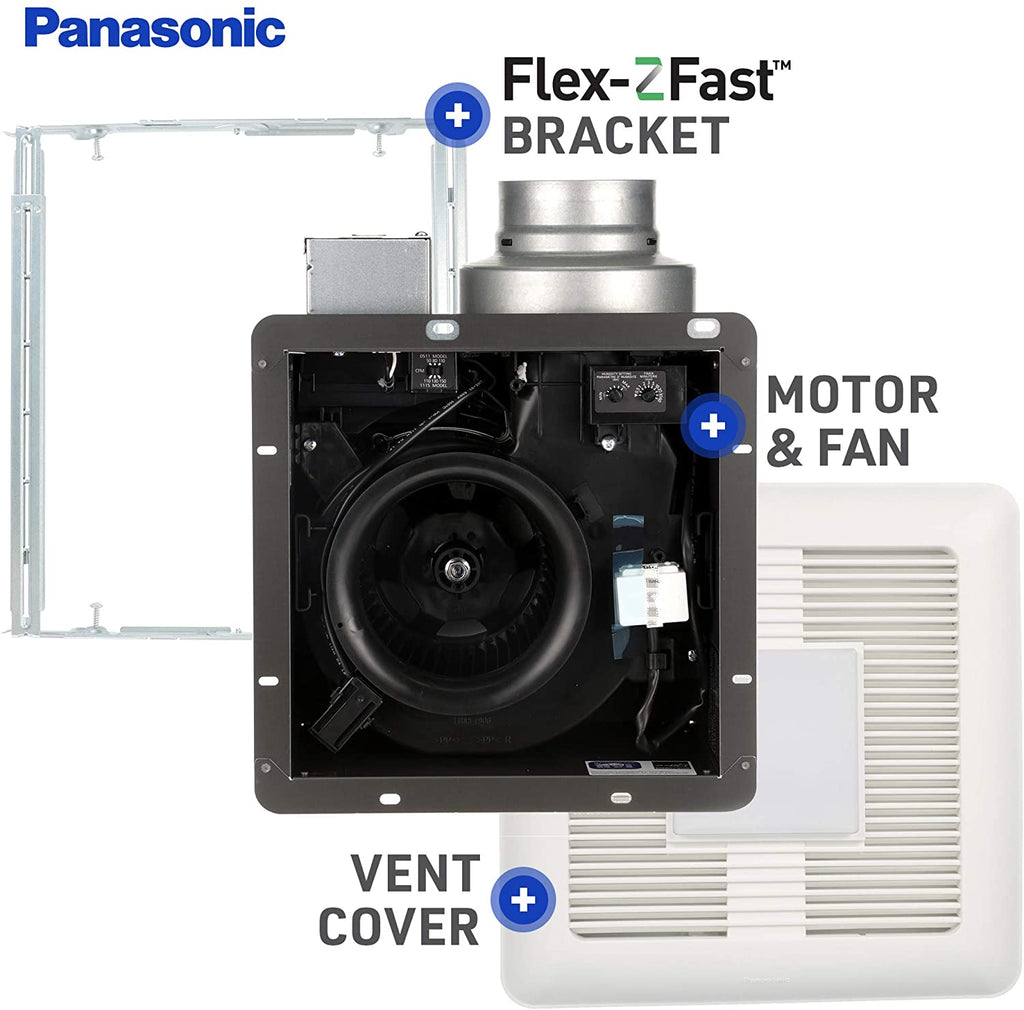

Its brushless ECM motor uses SmartFlow™ technology to help maintain the selected airflow, while the Flex-Z Fast® bracket and 4-inch or 6-inch duct adapter support flexible ceiling installation.

50 / 80 / 110 CFM Motion Sensor Humidity Sensor 700 lm LED Light LED Night Light 4" or 6" Duct

Why Choose the Panasonic FV-0511VQCL1?

Automatic Ventilation

Built-in motion and humidity sensors can activate ventilation in response to room occupancy or rising moisture, helping reduce reliance on manual fan operation.

Fan, Main Light and Night Light

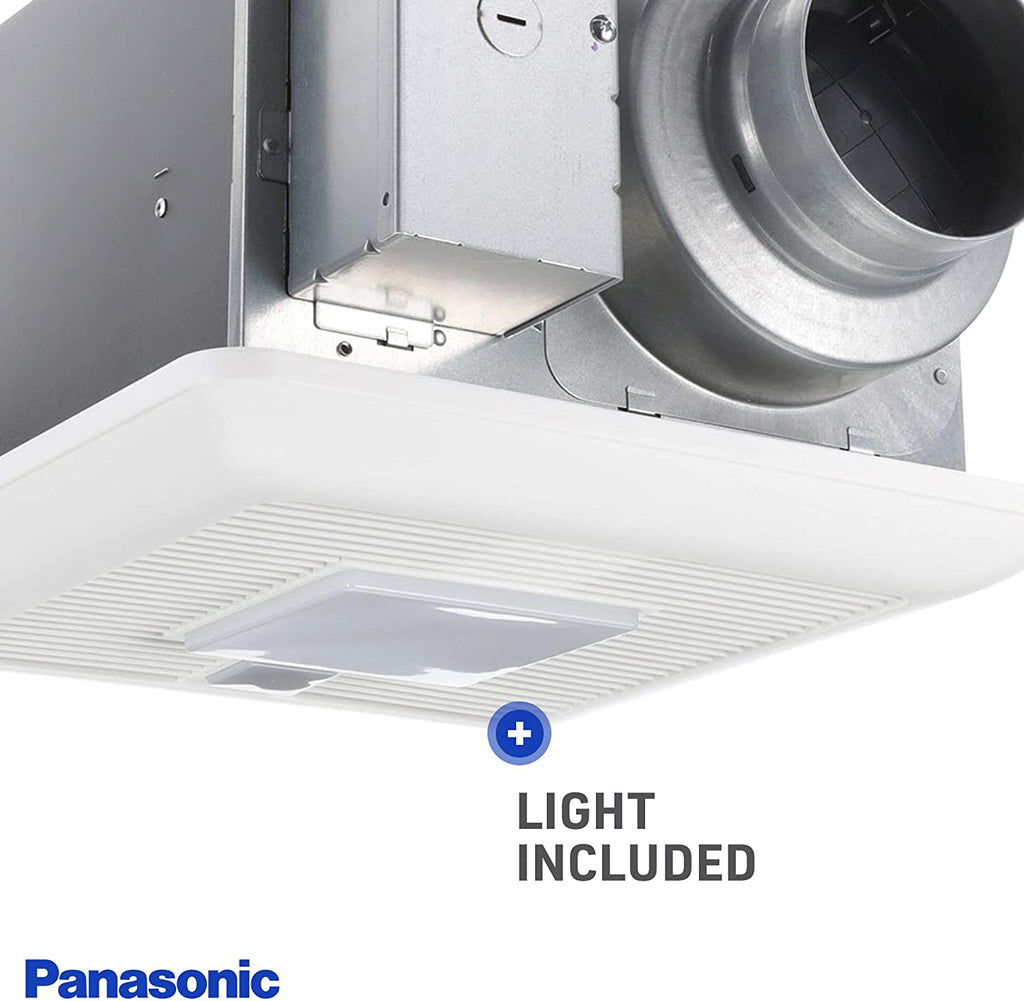

The ceiling-mounted unit combines bathroom ventilation with a 10-watt dimmable LED main light and a separately wired low-wattage night light.

Selectable Airflow

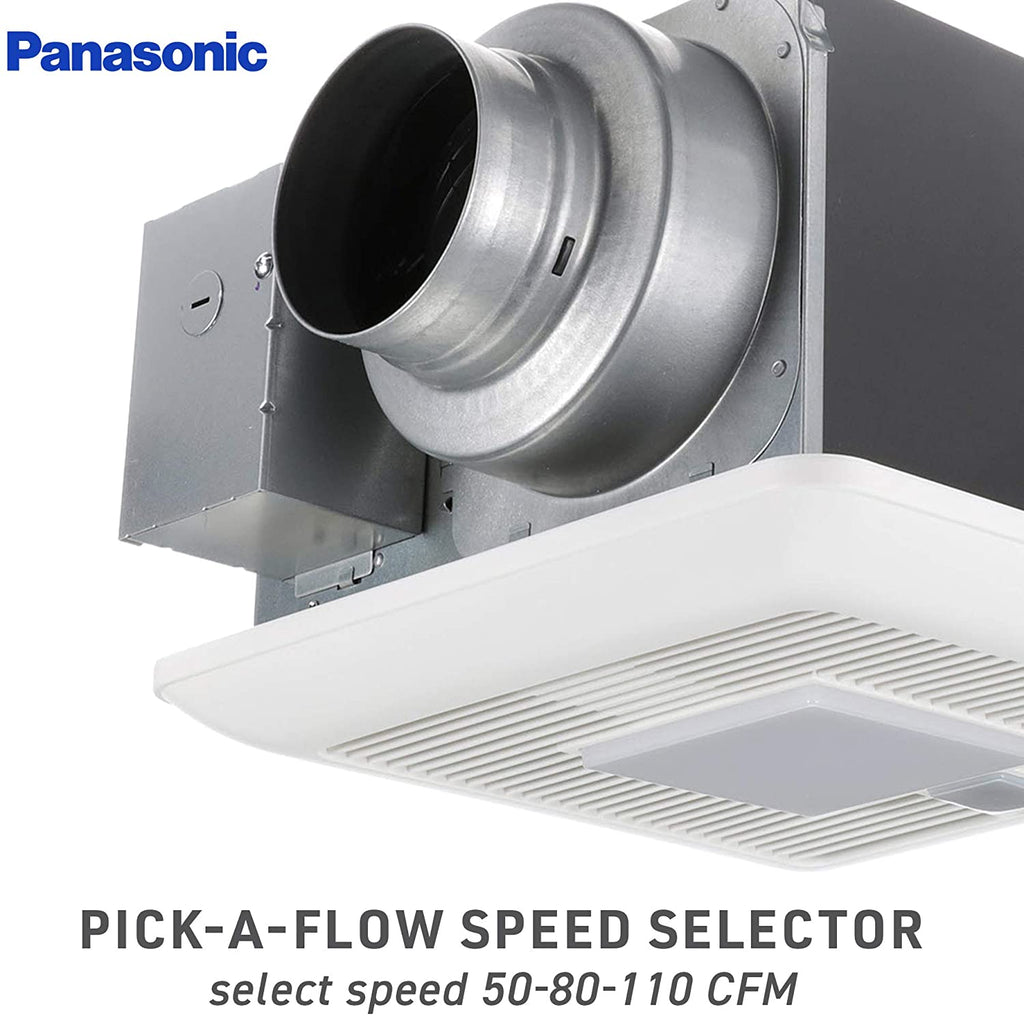

Pick-A-Flow® allows the installer to select 50, 80 or 110 CFM to suit the intended room and ventilation design.

Key Product Features

  • Pick-A-Flow® selectable airflow: 50 / 80 / 110 CFM
  • Brushless DC ECM motor with SmartFlow™ technology
  • Built-in motion and humidity sensors
  • Variable humidity control from 30% to 80% relative humidity
  • Adjustable delay timer from 30 seconds to 60 minutes

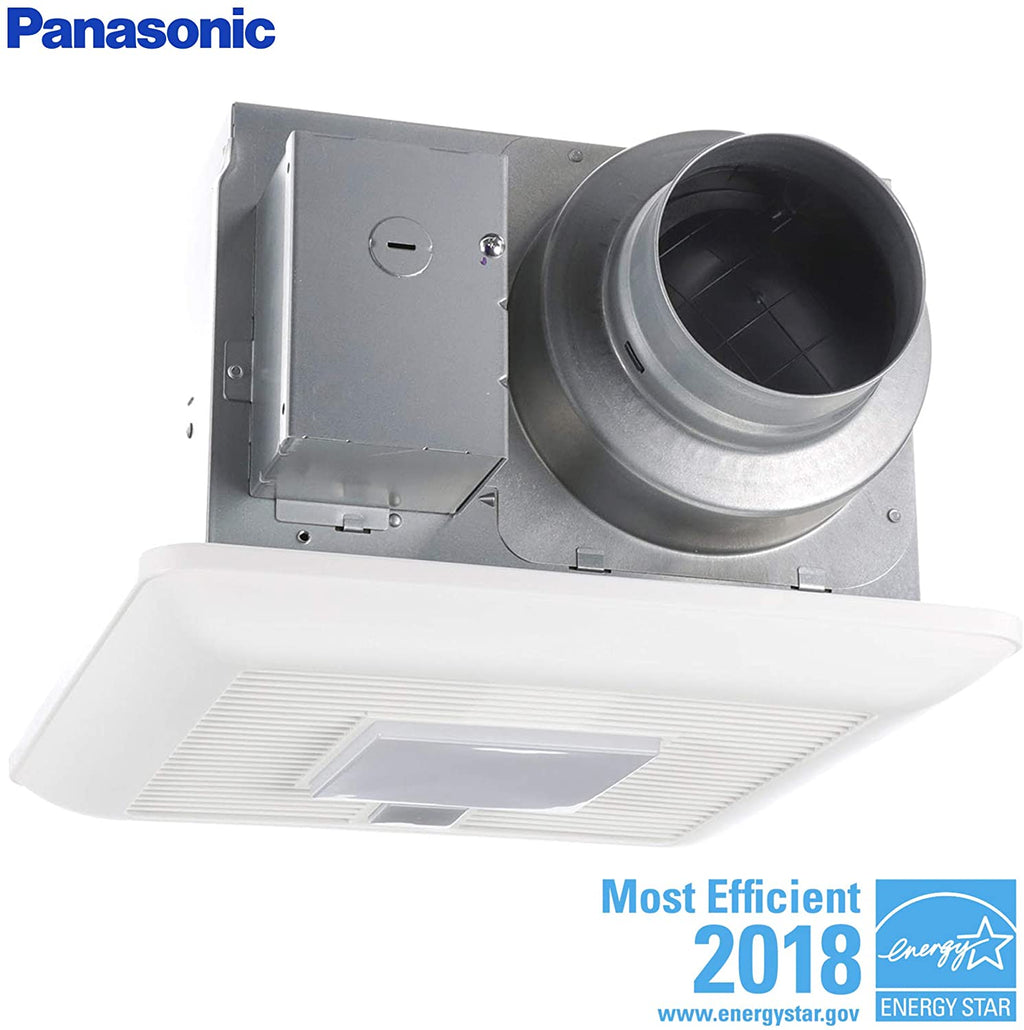

  • ENERGY STAR® certified
  • 10-watt dimmable LED main light
  • Approximately 700 lumens
  • 3000 K warm-white colour temperature
  • 90 colour rendering index
  • Integrated LED night light requiring separate wiring
  • 4-inch or 6-inch duct adapter with damper

Recommended Applications

Bathrooms and Ensuites

A strong option where automatic humidity control, motion activation, quiet ventilation and integrated ceiling lighting are required.

Condos and Multi-Family Housing

Useful for condos, rentals, townhomes and multi-family projects where automatic operation can support more consistent bathroom ventilation.

Family and Guest Bathrooms

Motion and humidity sensing can be helpful in frequently used bathrooms or spaces where occupants may forget to operate a standard wall-controlled fan.

Renovation and New Construction

The Flex-Z Fast® bracket and dual-size duct adapter support a range of ceiling-installation conditions when the opening, framing, wiring and ductwork are suitable.

FV-0511VQCL1 vs. FV-0511VQC1

Both models provide selectable airflow with motion and humidity sensing. The main difference is whether integrated lighting is required.

Feature FV-0511VQCL1 FV-0511VQC1
Airflow 50 / 80 / 110 CFM 50 / 80 / 110 CFM
Motion Sensor Yes Yes
Humidity Sensor Yes Yes
Integrated Main Light 10 W dimmable LED No
Night Light Yes; separate wiring required No
Best Fit Bathrooms needing ventilation, sensors and integrated lighting Bathrooms with separate lighting already provided
Product Link Current product page View FV-0511VQC1

Verified Product Specifications

Brand Panasonic
Model FV-0511VQCL1
Series WhisperSense® DC
Fan Type Ceiling-mounted ventilation fan with LED main light, night light and dual sensors
Airflow Settings 50 / 80 / 110 CFM
Motor Type Brushless DC ECM motor with SmartFlow™ technology
Sensors Motion and humidity
Humidity Control Variable setting from 30% to 80% relative humidity
Delay Timer Adjustable from 30 seconds to 60 minutes
Main Light 10 W dimmable LED chip panel
Light Output Approximately 700 lumens
Colour Temperature 3000 K warm white
Colour Rendering Index 90
Rated LED Life 50,000 hours
Night Light Integrated 0.2 W LED night light; separate wiring required
Duct Diameter 4 inches or 6 inches

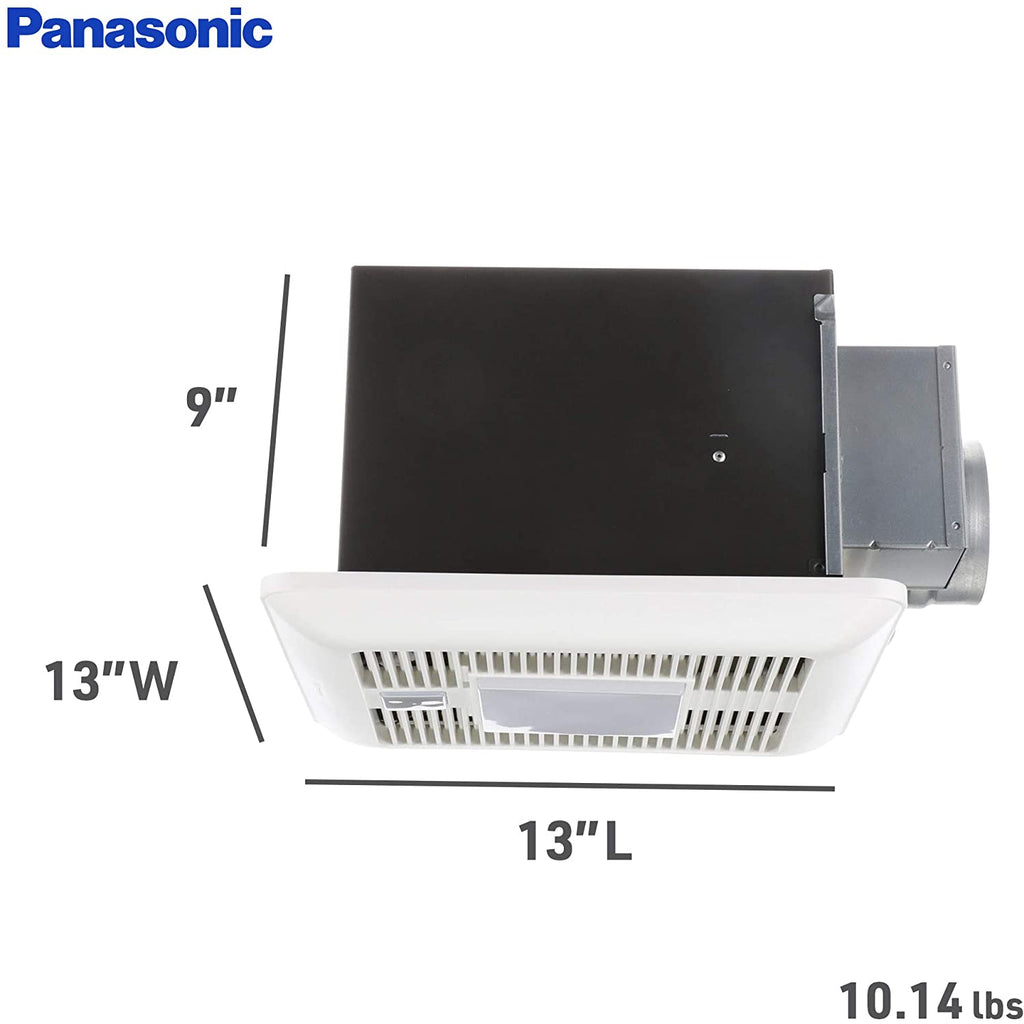

Mounting Opening 10-1/2-inch square
Grille Size 13-inch square
Housing Depth Approximately 7-1/2 inches
Power Rating 120 V / 60 Hz
Noise Rating Varies by airflow and static pressure; published values range from less than 0.3 to 0.9 sones
Certifications ENERGY STAR® certified and HVI certified
Tub/Shower Application Listed for tub or shower enclosure use when GFCI protected and installed according to Panasonic instructions
Gross Weight Approximately 11.9 lb
Warranty Refer to Panasonic warranty documentation supplied with the product for current terms and conditions

Before Ordering or Installing

Confirm the required airflow, ceiling opening, framing space, housing depth, duct diameter and route, electrical wiring, lighting controls, sensor settings and timer settings before installation. The night light requires separate wiring.

This product is not automatically a drop-in replacement for every existing bathroom fan. Compare the existing opening, housing, ductwork and wiring with Panasonic documentation. Installation should follow the manufacturer’s instructions and applicable Canadian electrical and building requirements.

Official Panasonic Resources

Use the official Panasonic product page below for current manufacturer information and available document downloads.

Panasonic FV-0511VQCL1 FAQ

What airflow settings does the FV-0511VQCL1 provide?

The Pick-A-Flow® selector provides 50, 80 or 110 CFM settings. The appropriate setting depends on the room, installation and ventilation design.

Does this fan include motion and humidity sensors?

Yes. The FV-0511VQCL1 includes built-in motion and humidity sensing for automatic ventilation control.

Does the FV-0511VQCL1 include a main light and night light?

Yes. It includes a 10-watt dimmable LED main light and a low-wattage LED night light. The night light requires separate wiring.

What is the difference between FV-0511VQCL1 and FV-0511VQC1?

Both models provide 50, 80 or 110 CFM airflow with motion and humidity sensing. The FV-0511VQCL1 adds an integrated LED main light and night light, while the FV-0511VQC1 is the fan-only version.

What duct sizes can be used?

The fan is designed for 4-inch or 6-inch ducting. Follow Panasonic’s installation instructions for the selected duct configuration.

Can the FV-0511VQCL1 replace any existing bathroom fan?

No universal drop-in compatibility should be assumed. Confirm the existing opening, ceiling depth, framing, ductwork, wiring and required airflow before ordering.

Does MarsLED ship Panasonic bathroom fans across Canada?

MarsLED supports Panasonic ventilation product orders and project inquiries across Canada. Availability, shipping cost and delivery timing depend on inventory, destination and order size.
