Description

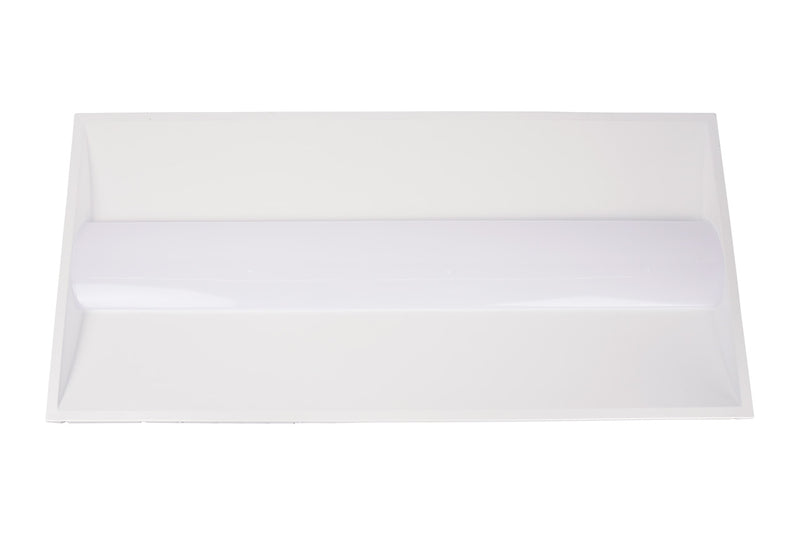

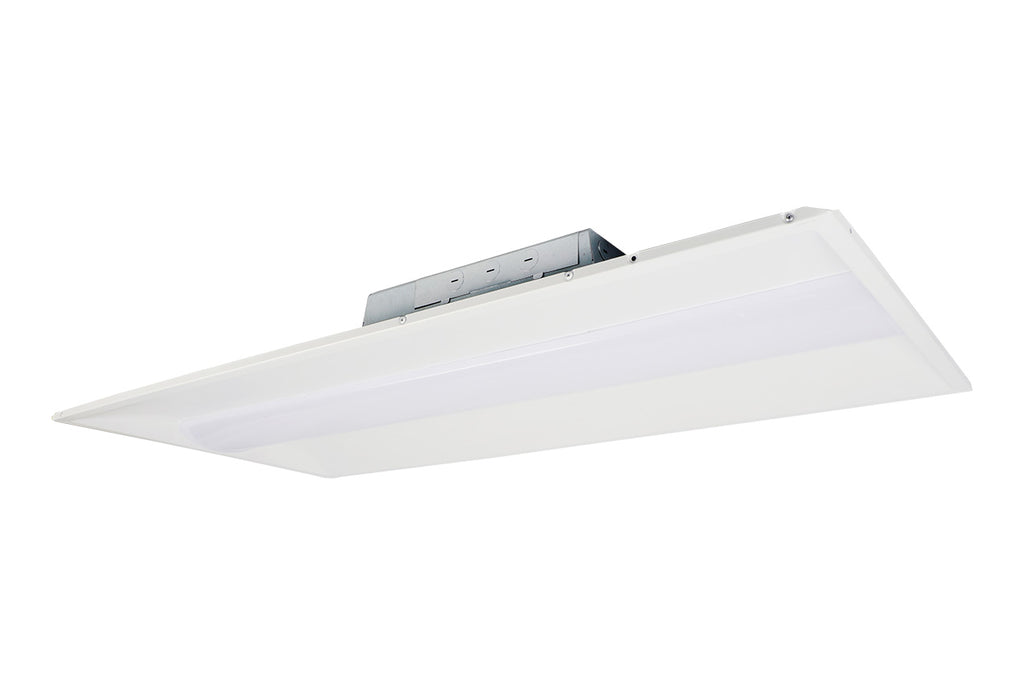

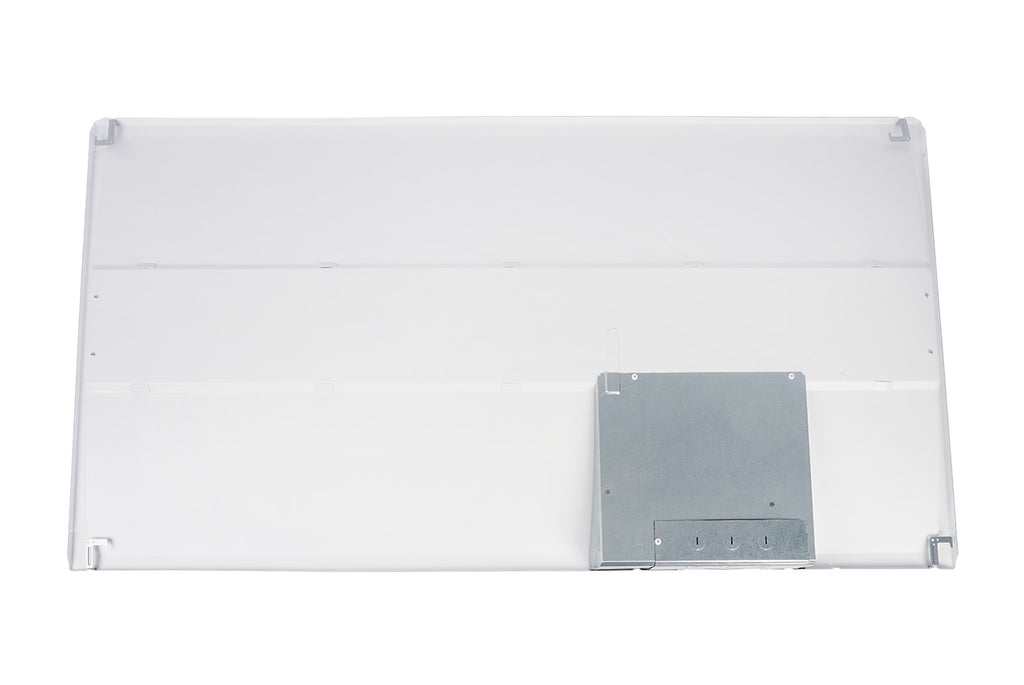

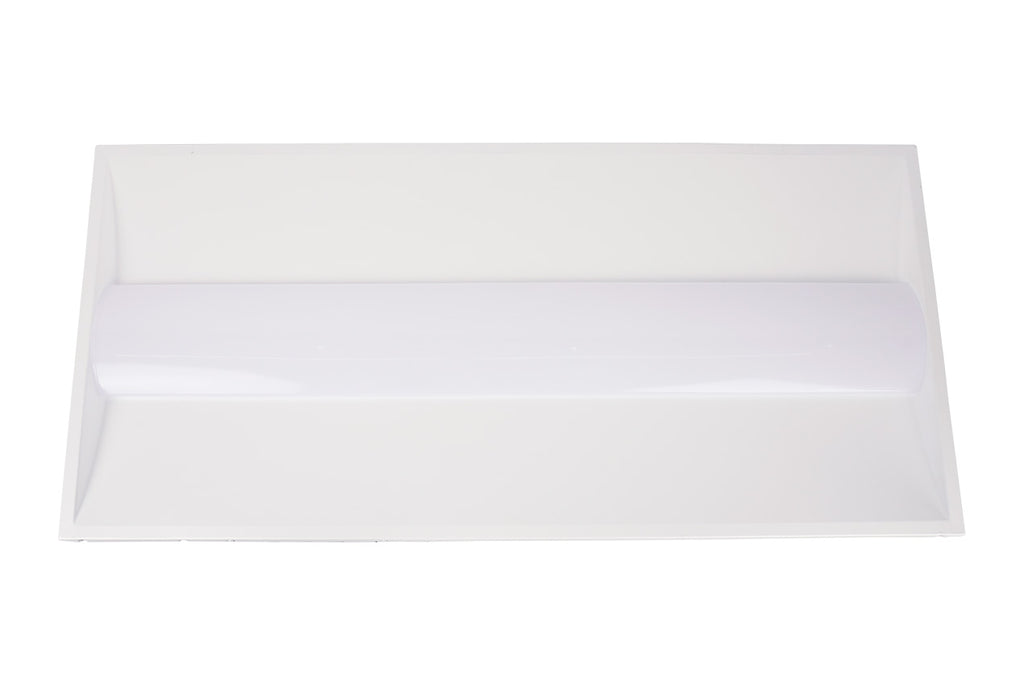

CSC LED VOL24-40W-3P-3CCT-UD – 2x4 Volumetric Wattage & CCT Selectable LED Troffer
2' x 4' | 30W/35W/40W | 3CCT | 120-347V | 3960-5190 lm
The CSC LED VOL24-40W-3P-3CCT-UD is a high-efficiency 2x4 volumetric LED troffer designed for offices, schools, healthcare and general commercial spaces. With wattage selectable output and 3CCT colour selectable performance, it provides flexible, low-glare illumination in standard T-bar grid ceilings while reducing energy and maintenance costs.
This fixture is DLC listed and qualifies for Save on Energy Instant Discounts when purchased through Mars Lighting & Electrical. Rebates are applied directly on your MarsLED invoice for eligible commercial projects.
Request a Rebate-Eligible Lighting Quote View All Save on Energy Eligible Products
Key Features
- 2x4 volumetric LED troffer for standard T-bar ceiling installations.
- Wattage selectable – one SKU covers multiple lumen packages.
- 3CCT selectable – adjust colour temperature on site to suit the space.
- Volumetric optical design for even, comfortable, low-glare illumination.
- Ideal for retrofit projects replacing 2x4 fluorescent troffers.
- High-efficiency LED system to reduce hydro costs and improve efficiency.
- 0–10V dimming driver compatible with common control systems.
- Long-life LEDs reduce maintenance and relamping frequency.
Ideal Applications
- Open plan offices and private offices
- Boardrooms and meeting rooms
- Corridors and common areas
- Schools, classrooms and educational facilities
- Healthcare and medical offices
- Retail, financial and professional service spaces
Certifications & Listings
- cETL Listed for safety.
- DLC Listed – meets DLC performance criteria for rebate programs.
- Eligible for Save on Energy incentives across Ontario when installed in qualifying projects.
- For final DLC classification and listing details, always consult the official CSC LED product sheet or DLC QPL.
Specifications Overview
Optical & Performance
- Volumetric distribution for balanced vertical and horizontal illumination.
- Wattage-selectable output for tailored light levels.
- 3CCT selectable colour temperature for design and user preference.
- High system efficacy supports energy savings targets.
Electrical
- Universal voltage driver (typically 120–347V).
- 0–10V dimming capability for advanced control strategies.
- High power factor, low THD (refer to product sheet for exact values).
- Designed for commercial and institutional building applications.
Construction & Mounting
- Low-profile steel housing with clean, architectural look.
- Fits standard 2x4 T-grid ceiling layouts.
- Volumetric lens/basket for visual comfort and uniformity.
- Compatible with common commercial mounting and retrofit methods.
Resources & Downloads
Download the official CSC LED product sheet for full technical details, photometrics and DLC information for VOL24-40W-3P-3CCT-UD.
Download CSC LED VOL Series Product Sheet (PDF)Mars Lighting & Electrical (MarsLED) is an authorized CSC LED distributor in Ontario, supporting contractors and facility owners from our Milton and Kitchener branches.
